Ugreen Maxidok 17-in-1 Thunderbolt 5 Docking Station Review

Modern computing environments demand centralized connectivity without sacrificing performance. As manufacturers continue to strip legacy ports from ultrabooks and workstations, the docking station has evolved from a simple extension hub into a critical infrastructure component. The latest generation of these devices must now support unprecedented data rates, multi-display configurations, and high-wattage power delivery through a single cable. This shift requires engineers to redesign internal architectures while maintaining strict thermal and electrical standards.

The Ugreen Maxidok 17-in-1 Thunderbolt 5 docking station delivers comprehensive connectivity for professional workstations. It features a 120Gbps host interface, 140-watt power delivery, and an internal M.2 NVMe slot. The aluminum chassis maintains stable performance under heavy loads, though the absence of a direct HDMI port and a 2.5-gigabit network interface may limit its appeal for some users.

What is the Ugreen Maxidok 17-in-1 Thunderbolt 5 docking station?

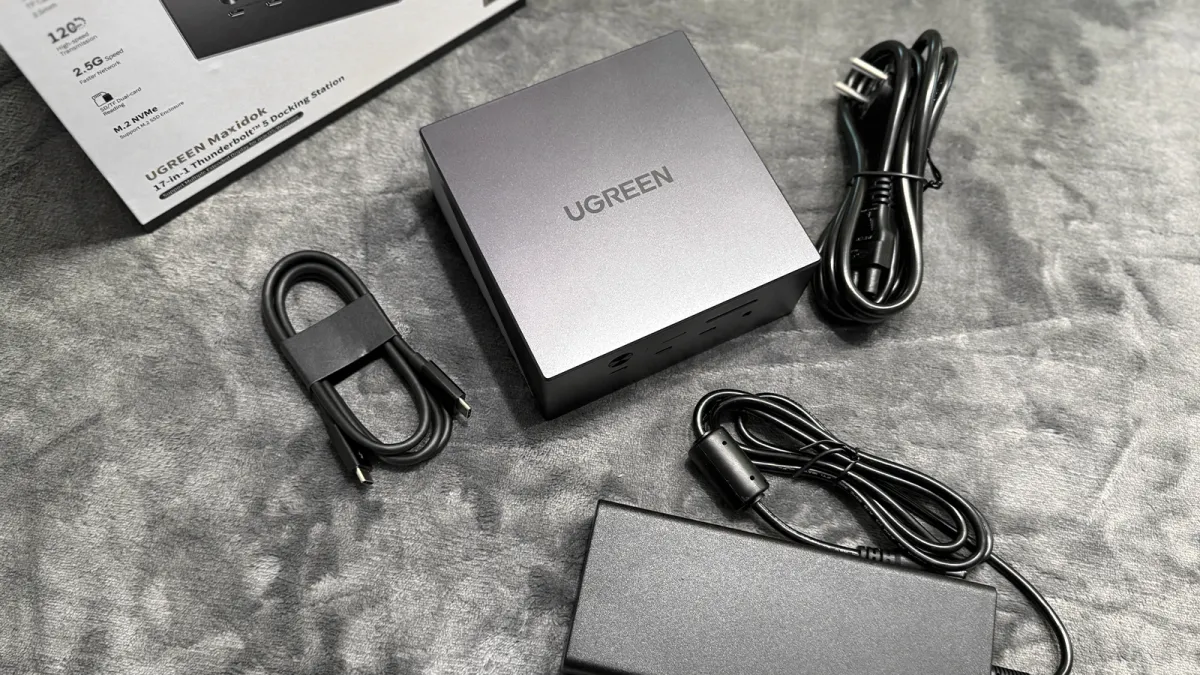

The Maxidok 17-in-1 Thunderbolt 5 docking station represents a significant departure from traditional peripheral hubs. Measuring approximately five inches on each side and weighing nearly two pounds, the unit utilizes a zinc-aluminum alloy chassis to manage thermal output. The exterior features precise tolerances and four substantial rubber feet that anchor the device securely to any desk surface. Ventilation openings are strategically positioned along the sides to facilitate airflow toward the internal cooling mechanism.

Port placement follows a logical hierarchy that separates frequently accessed connectors from permanent infrastructure cables. The front panel houses a power button with an illuminated indicator, three USB-C connectors operating at ten gigabits per second, an SD card reader, a microSD reader, and a dedicated audio jack. Rear connections include three USB-A ports, two Thunderbolt 5 downstream ports, a DisplayPort 2.1 output, a 2.5-gigabit Ethernet jack, and separate audio inputs.

The inclusion of a Kensington lock slot addresses enterprise security requirements that many consumer docking stations overlook. This physical deterrent ensures that high-value equipment remains secured in shared office environments or public workspaces. The design philosophy prioritizes durability and long-term reliability over aesthetic minimalism. Engineers have clearly focused on structural integrity and thermal management to support continuous operation in demanding professional settings.

How does the Thunderbolt 5 architecture change workstation connectivity?

Thunderbolt 5 introduces a bidirectional bandwidth architecture that fundamentally alters how data moves between peripherals and host systems. The standard initially provides eighty gigabits per second, but a dedicated bandwidth boost mode can dynamically allocate up to one hundred twenty gigabits per second in a single direction. This flexibility allows the interface to prioritize video transmission or data transfer depending on the active workload.

Display output capabilities benefit significantly from this architectural shift. The docking station can drive two eight-kilometer displays at sixty hertz or three four-kilometer displays at one hundred forty-four hertz, provided the host computer supports the necessary frame buffer allocation. This configuration eliminates the need for multiple active adapters and simplifies multi-monitor calibration workflows for creative professionals.

Compatibility requirements dictate which systems can fully utilize this interface. Windows laptops require Intel Core Ultra processors from the second generation or later to enable native Thunderbolt 5 support. Desktop users must install Z890 motherboards or purchase dedicated PCIe expansion cards to access the protocol. Apple devices transitioned to this standard with the M4 Pro and M4 Max silicon, while earlier generations remain limited to Thunderbolt 4 specifications.

Navigating hardware compatibility often requires careful planning during system upgrades. Professionals evaluating whether to purchase a new iPhone, iPad, or Mac should consider how peripheral ecosystems evolve alongside processor generations. The Maxidok demonstrates how docking infrastructure must adapt to maintain relevance as host architectures advance. Users relying on legacy hardware can still connect to the station, but they will experience reduced bandwidth and lower power delivery ceilings.

What role does the integrated M.2 storage slot play in professional workflows?

The internal M.2 slot represents the most distinctive engineering decision in this docking station. It accommodates 2280 form factor NVMe drives that utilize PCIe Gen4 x4 lanes, supporting capacities up to eight terabytes. This integration transforms the peripheral hub into a high-speed storage array that eliminates external enclosure dependencies. Photographers and video editors can store raw media files directly within the workstation infrastructure.

Thermal management for the internal drive relies on a dedicated heatsink that maintains operating temperatures around forty-four degrees Celsius during intensive read and write cycles. Testing confirms that the storage module does not throttle under sustained load, preserving consistent data transfer rates. The drive achieves sequential read speeds near three thousand nine hundred megabytes per second, which reflects the practical bandwidth limitations imposed by the docking architecture.

This internal storage configuration offers tangible advantages for professionals who frequently transition between mobile and fixed workstations. Instead of carrying multiple external drives or managing complex backup routines, users can connect a single cable to restore their entire digital environment. The dock becomes a centralized hub for monitors, network connectivity, input devices, and mass storage. This consolidation reduces desk clutter and accelerates daily setup procedures.

Office workers who primarily manage documents and spreadsheets may find the internal drive unnecessary. The feature provides minimal practical benefit for basic productivity tasks that rely on cloud synchronization rather than local storage. However, creators who process large video files, run virtual machines, or maintain extensive project archives will recognize the operational efficiency gained from having high-speed storage permanently integrated into the docking infrastructure.

How does the hardware perform under sustained professional loads?

Power distribution within the Maxidok 17-in-1 docking station operates through a carefully engineered twenty-fourty-watt external adapter. The system allocates up to one hundred forty watts directly to the host laptop, ensuring that high-performance machines receive sufficient energy for continuous operation. A secondary downstream port can deliver sixty watts to fast-charge mobile devices, while remaining USB ports supply standard peripherals.

Thermal behavior remains a critical consideration for any device housing high-density electronics. The active cooling fan operates silently during standard office tasks and only becomes faintly audible when transferring large datasets or driving multiple displays at maximum resolution. The aluminum chassis effectively dissipates excess heat, preventing surface temperatures from reaching uncomfortable levels. Idle power consumption measures approximately five watts, indicating efficient standby management.

Network connectivity relies on a 2.5-gigabit Ethernet interface that meets current residential and small office requirements. While this speed suffices for most broadband connections, professionals managing 10-gigabit local area networks may find the bandwidth insufficient for rapid NAS synchronization. The card readers support UHS-II media and achieve transfer rates up to three hundred twelve megabytes per second, providing reliable performance for photographers handling large volumes of RAW images.

System stability under continuous operation demonstrates the effectiveness of the cooling design. Testing reveals no performance degradation or connection drops after extended use. The Thunderbolt 5 cable included with the unit measures approximately twenty-seven inches and maintains certified speeds for standard desk setups. Users requiring longer distances must purchase active cables, as passive implementations cannot sustain maximum bandwidth beyond forty inches.

Who should consider upgrading to this docking solution?

The Maxidok 17-in-1 Thunderbolt 5 docking station targets professionals who require a comprehensive, future-proof workstation foundation. The internal storage slot, high-wattage power delivery, and extensive port selection address the needs of creators, developers, and enterprise users who manage complex digital workflows. The premium aluminum construction and rigorous thermal testing indicate a product designed for long-term deployment rather than temporary convenience.

Pricing places the unit in the upper tier of the docking market, with retail costs approaching five hundred dollars and street prices settling near four hundred dollars. This valuation reflects the advanced Thunderbolt 5 chipset, the integrated M.2 architecture, and the robust power delivery system. Buyers must weigh these costs against the specific requirements of their daily operations to determine whether the investment justifies the operational improvements.

The absence of a direct HDMI output and the reliance on a 2.5-gigabit network port represent deliberate engineering compromises. Manufacturers prioritize future-proof display standards and bandwidth allocation for data transfer over legacy compatibility. Professionals who fully utilize Thunderbolt 5 capabilities will find the Maxidok to be a highly capable control center. Those with older hardware or simpler connectivity needs may find more economical alternatives better suited to their requirements.

What does the future hold for docking infrastructure?

Docking infrastructure continues to evolve alongside processor advancements and display technology. The Maxidok 17-in-1 demonstrates how modern peripherals must consolidate functions while maintaining strict performance thresholds. Engineers have successfully balanced thermal constraints, power distribution, and data throughput within a compact chassis. The device serves as a testament to the shifting requirements of professional computing environments. Evaluating these technical trade-offs helps buyers make informed decisions about workstation expansion.
