Optimizing Chiplet Cooling With Adjustable Mounting Brackets

Modern desktop processors have undergone a fundamental architectural shift that continues to reshape how enthusiasts approach thermal management and performance tuning. The transition from monolithic silicon designs to chiplet-based layouts introduced unprecedented manufacturing efficiencies, yet it also created new thermal dynamics that standard cooling solutions struggle to address. Enthusiasts who push hardware beyond factory specifications frequently encounter localized heat concentrations that traditional mounting approaches simply cannot dissipate effectively. This reality has prompted a wave of specialized hardware modifications designed to bridge the gap between theoretical cooling potential and real-world thermal performance.

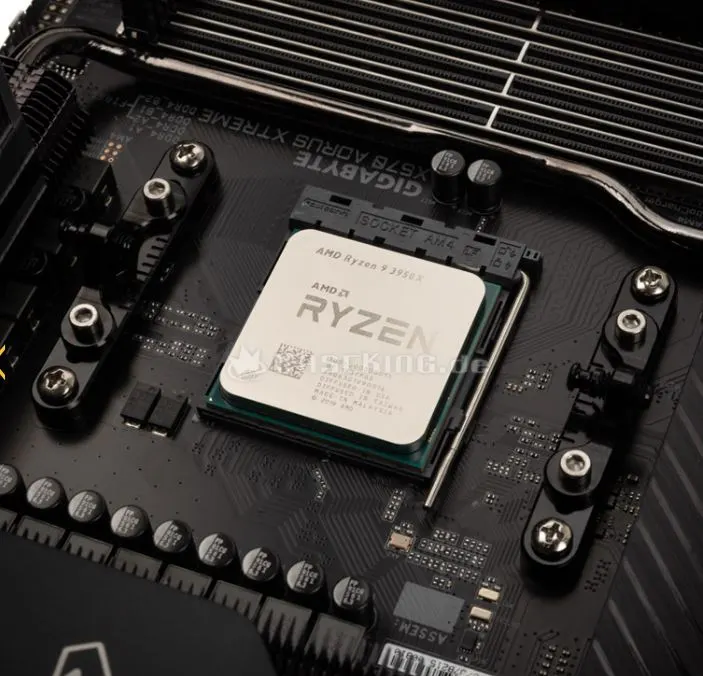

AMD Ryzen 3000 processors utilize a chiplet architecture that concentrates heat in specific areas, making standard cooler placement less effective. Renowned overclocker Der8auer has developed specialized mounting brackets that allow precise alignment of cold plates with these thermal hotspots. The kits support both all-in-one liquid coolers and custom water cooling loops, offering potential temperature reductions of up to seven degrees Celsius. Priced at thirty-three dollars, these tools provide enthusiasts with a practical method to optimize cooling efficiency across a wide range of compatible motherboards.

What is the thermal challenge posed by chiplet architecture?

The introduction of chiplet-based designs marked a significant turning point in semiconductor manufacturing, fundamentally altering how heat distributes across modern processors. Instead of relying on a single large silicon die, manufacturers now assemble multiple smaller dies within a single package. This approach improves yield rates and reduces production costs, but it also creates uneven thermal profiles that standard cooling solutions struggle to manage. The central processing unit heat spreader covers the entire top surface, yet the actual silicon components responsible for computation and input operations occupy only specific regions beneath that metal plate. When a cooler mounts directly to the spreader, the cold plate often rests on cooler areas while leaving the actual hotspots less exposed to direct thermal transfer. This misalignment becomes increasingly problematic as processor power densities rise and enthusiasts attempt to extract maximum performance from the hardware.

Thermal resistance plays a critical role in how efficiently heat moves from the silicon to the cooling medium. Standard mounting hardware assumes a uniform heat distribution across the processor surface, which no longer reflects the reality of modern chip layouts. The input output die and the core compute dies generate the majority of operational heat, creating distinct thermal peaks that standard cold plates frequently miss. Builders who rely on factory mounting brackets often find that their cooling systems work harder to move heat away from the processor without achieving optimal contact. This inefficiency forces the system to rely on higher fan speeds or increased pump flow rates to maintain safe operating temperatures. Understanding this limitation is essential for anyone looking to improve cooling performance without upgrading to more expensive hardware solutions.

How does cooler placement influence processor temperatures?

Thermal transfer efficiency depends heavily on the physical alignment between a cooling component and the underlying heat source. Standard motherboard mounting brackets position coolers symmetrically, assuming that heat will distribute evenly across the processor surface. Modern chiplet layouts contradict that assumption by concentrating operational heat in distinct zones. When a circular or rectangular cold plate sits slightly off-center, it fails to make optimal contact with the densest areas of silicon activity. The resulting thermal resistance forces the cooling system to work harder to move heat away from the processor. Enthusiasts who monitor real-time temperature readings frequently notice that minor adjustments in cooler positioning can yield measurable improvements in thermal performance. This phenomenon has driven the development of adjustable mounting hardware that allows users to shift the cold plate precisely over the processor's most active regions.

The physics of heat conduction dictates that direct contact with the hottest silicon areas produces the most stable thermal readings. When a cooler aligns with the core compute cluster, the temperature delta between the processor and the coolant decreases significantly. This reduction allows the cooling system to operate more efficiently, which translates to lower overall system temperatures and reduced acoustic output. Builders who experiment with cooler positioning often discover that even a few millimeters of adjustment can shift the thermal profile in a favorable direction. The ability to fine-tune cooler placement gives enthusiasts greater control over their system's thermal behavior, which becomes increasingly important as processor designs continue to evolve.

What are the new mounting brackets and how do they function?

Specialized mounting hardware has emerged to address the alignment gap between standard coolers and chiplet processors. The Ryzen 3000 OC Bracket AIO and the Ryzen 3000 OC Bracket Custom represent two distinct solutions tailored to different cooling architectures. The all-in-one variant replaces the standard motherboard mounting frame and allows users to slide the liquid cooler cold plate along designated axes. The custom loop version provides similar flexibility for builders who assemble their own water cooling systems. Both kits eliminate the fixed positioning constraints of traditional hardware by introducing adjustable mounting points. Users can shift the cold plate closer to the processor's input output and core die cluster, ensuring that the coldest part of the cooling system contacts the hottest silicon. This mechanical adjustment directly reduces thermal resistance and improves the overall efficiency of the heat transfer process.

These mounting frames are designed to replace the original motherboard brackets entirely, which simplifies installation for builders who are already familiar with standard cooler mounting procedures. The adjustable design allows users to consult published guidelines that specify the exact deviation required for each processor model. Builders can then shift the cold plate along the horizontal and vertical axes to align it with the specific thermal hotspots identified during testing. The hardware accommodates both round and rectangular cold plates, ensuring compatibility with a wide range of cooling solutions. By providing a mechanical solution to a thermal alignment problem, these brackets offer a practical path to improved cooling performance without requiring expensive aftermarket components.

Testing methodology and compatibility considerations

Developing adjustable mounting hardware requires extensive validation across different motherboard layouts and cooler designs. The creator of these brackets conducted trials on approximately thirty different X570 motherboards to verify compatibility and measure thermal improvements. Each motherboard features a unique printed circuit board layout that dictates where mounting holes align and how much clearance exists around the processor socket. The testing process involved swapping between various cooler models and recording temperature differences under identical load conditions. The results confirmed that precise alignment consistently outperformed standard mounting positions. Builders who wish to replicate these results must consult published compatibility lists that detail the exact deviation required for each processor model. These guidelines specify the necessary shifts along the horizontal and vertical axes to achieve optimal contact with the thermal hotspots.

Compatibility verification remains a crucial step for anyone considering this type of hardware modification. The X570 platform provides a consistent foundation for testing, but motherboard manufacturers often position mounting holes and power delivery components differently. Builders must ensure that the adjustable brackets clear nearby capacitors, VRM heatsinks, and memory modules before installing the cooler. The published compatibility information helps users identify which motherboards support the full range of adjustment and which require specific mounting orientations. This level of detail ensures that enthusiasts can implement the hardware safely while maximizing the thermal benefits that precise alignment provides.

Why does precise thermal alignment matter for overclocking?

Overclocking pushes processors beyond their default operating parameters, which directly increases power consumption and heat generation. When silicon components operate at higher frequencies, the localized heat output rises exponentially, making thermal management the primary constraint for performance gains. Standard cooling approaches often leave the most thermally stressed areas of the processor undercooled, forcing the system to trigger thermal throttling before reaching its full potential. Adjustable mounting hardware mitigates this limitation by ensuring that the cooling system targets the exact locations where heat accumulates most rapidly. This targeted approach allows processors to maintain higher boost clocks for longer durations without exceeding safe temperature thresholds. Enthusiasts who prioritize extreme performance tuning recognize that hardware modifications addressing thermal alignment can unlock stability improvements that standard cooling solutions simply cannot provide.

The relationship between thermal efficiency and sustained performance becomes increasingly apparent as processors approach their physical limits. When a cooler aligns with the hottest silicon areas, the system can sustain higher power states without triggering protection mechanisms. This stability allows builders to push frequencies further while maintaining consistent performance under heavy computational workloads. The broader enthusiast community has long understood that platform demands play a critical role in overclocking success, as seen when Intel Core i9-7980XE Benchmarks Reveal Overclocking Potential and Platform Demands highlighted the necessity of precise cooling alignment. Modern chiplet processors require the same level of attention to mounting geometry to achieve comparable results.

How does this hardware fit into the broader enthusiast ecosystem?

The intersection of advanced semiconductor design and enthusiast hardware modification continues to drive innovation in thermal management. Adjustable mounting brackets represent a practical response to the specific cooling challenges introduced by chiplet processors. By allowing users to align cold plates with actual heat sources rather than relying on symmetrical mounting assumptions, these tools provide a measurable improvement in thermal efficiency. The testing data and compatibility guidelines published alongside the hardware give builders the information needed to implement these modifications safely. As processor architectures evolve and power densities increase, precise thermal alignment will remain a critical factor in unlocking sustained performance. Enthusiasts who adopt these specialized mounting solutions will find that careful hardware adjustments can yield tangible benefits without requiring expensive cooling upgrades.

The availability of these tools at a modest price point demonstrates how community-driven innovation can address niche engineering challenges. Builders who approach hardware modification with careful testing and measured adjustments will continue to push the boundaries of what modern desktop processors can achieve. The broader ecosystem benefits from this type of targeted development, as manufacturers gain insight into how enthusiasts interact with thermal constraints. Memory manufacturers also recognize that overclocking support requires platform-wide optimization, much like the approach detailed in Kingston DDR5 Memory Modules With Overclocking Support Arriving Q3 2021. Thermal alignment tools complement those efforts by ensuring that processors can operate at higher frequencies without thermal bottlenecks.

As the desktop hardware landscape continues to mature, specialized cooling accessories will likely become standard offerings rather than niche modifications. Builders who invest time in understanding thermal dynamics and mounting geometry will gain a significant advantage when configuring high-performance systems. The ability to fine-tune cooler placement provides greater control over system stability, acoustic output, and long-term component longevity. These adjustments do not replace proper cooling fundamentals, but they enhance them by addressing the specific limitations introduced by modern processor designs. Enthusiasts who embrace this approach will find that precise thermal management remains the most reliable path to sustained performance.
