Elliptical Laser Scanning Enables On-Demand Metal Alloying in 3D Printing

The advancement of metal additive manufacturing has long been constrained by the fundamental physics of molten materials. When distinct metallic powders are fused layer by layer, their inherent chemical and physical differences frequently lead to structural inconsistencies. Researchers at the National Institute of Standards and Technology have recently addressed this persistent limitation by introducing a novel scanning methodology that actively stirs molten metal during the fabrication process. This development marks a significant shift toward dynamic material processing within industrial three-dimensional printing environments.

Researchers at the National Institute of Standards and Technology have demonstrated a metal 3D printing technique that utilizes elliptical laser scanning paths to actively stir molten metal pools during fabrication. This software-driven approach eliminates the need for specialized hardware, enabling existing industrial machines to blend incompatible elemental powders into high-strength alloys in real time. The method addresses long-standing challenges regarding alloy separation and microstructural defects, paving the way for on-demand material synthesis and continuously graded components in advanced manufacturing.

How does elliptical scanning alter traditional metal printing?

Standard laser powder bed fusion operates on a straightforward principle where a focused beam melts thin layers of metal powder point by point. Traditional scanning strategies rely on straight-line trajectories that advance systematically across the build platform. Each brief melt pool generated by this linear approach blends its constituent ingredients only slightly before solidifying. The National Institute of Standards and Technology has fundamentally altered this process by programming the laser to draw continuous loops as it advances. This elliptical motion actively churns the liquid metal while it remains in a molten state. The continuous stirring action promotes thorough mixing of disparate metallic elements that would otherwise remain segregated. Because the technique modifies only the scan pattern rather than the underlying hardware, it represents a highly adaptable solution for modern fabrication facilities. Existing printer firmware cannot generate these complex toolpaths, which necessitated the development of custom control software from the ground up. This software modification allows commercial machines to execute the stirring motion without requiring physical upgrades or new laser systems. The shift from linear to elliptical scanning demonstrates how algorithmic adjustments can overcome physical limitations inherent in traditional additive manufacturing workflows.

Why does alloy separation remain a persistent manufacturing challenge?

Metals possess distinct physical properties that complicate the casting and additive manufacturing processes. Variations in density, melting points, and surface tension naturally drive different metallic elements to separate as a molten pool cools. This separation results in weak, blotchy regions that compromise the structural integrity of the final component. High-entropy alloys present an especially difficult challenge because they combine five or more metals in roughly equal proportions rather than relying on a single base metal with trace additions. These complex compositions are highly prone to phase segregation during rapid cooling cycles. The tendency to separate into distinct regions makes traditional casting methods largely ineffective for producing uniform high-entropy materials. Stirring the molten pool during the fabrication process effectively sidesteps this fundamental thermodynamic issue. By maintaining continuous fluid motion, the technique ensures that elemental powders remain thoroughly integrated before solidification occurs. This dynamic approach prevents the formation of weak interfaces and promotes a homogeneous microstructure throughout the finished part. The research demonstrates that active fluid control can neutralize the natural tendency of dissimilar metals to stratify.

What technical barriers prevented immediate commercial adoption?

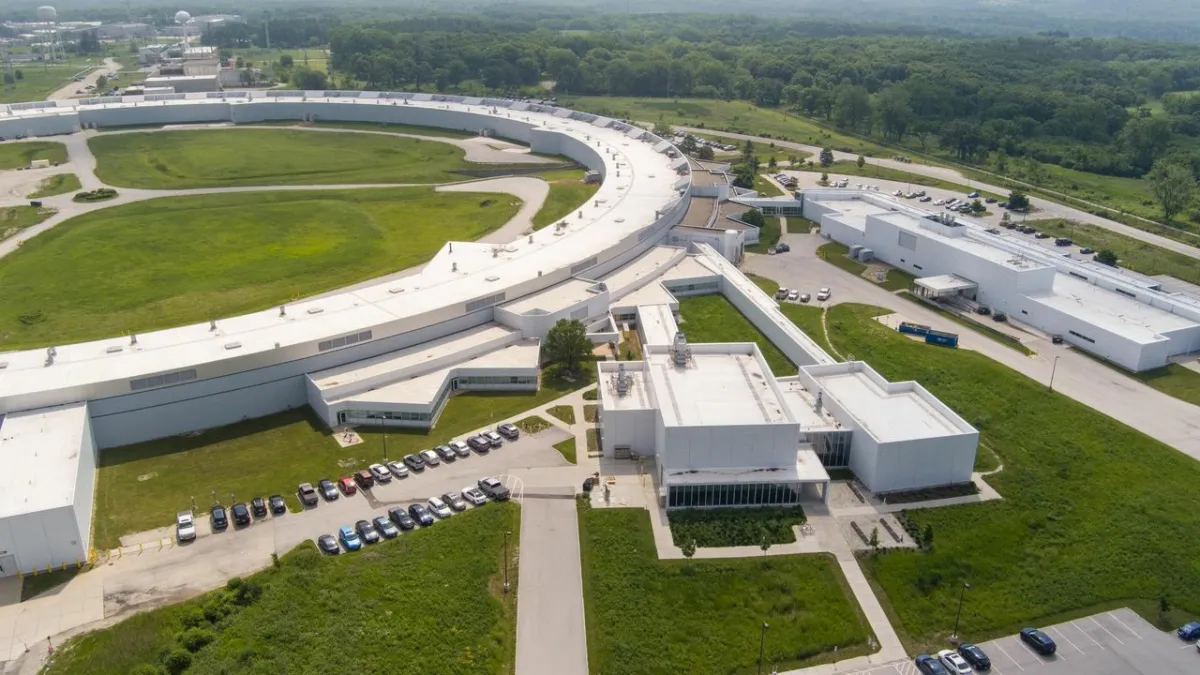

Verifying that two distinct metals had truly alloyed rather than merely separated required capturing their atomic structure as the liquid pool froze. This solidification process occurs in less than one second, demanding extremely rapid and precise analytical methods. Researchers utilized X-ray diffraction to observe the internal atomic arrangement while the material remained in a molten state. X-rays are passed through the dense metal, bouncing off individual atoms to create measurable diffraction patterns. Analyzing these patterns reveals exactly how the atomic lattice organizes itself during the critical cooling phase. The Advanced Photon Source provided X-ray beams approximately five hundred billion times brighter than standard dental scanners. This extraordinary intensity allowed the team to read diffraction patterns directly off the dense melt as it solidified. The in-situ diffraction technique itself represents a significant methodological achievement, as tracking phase changes at such extreme speeds had not been accomplished previously. Electron microscopy was subsequently employed to examine the finished solid structure, confirming that the elliptical scanning strategy successfully produced a unified alloy. The verification process established a reliable framework for monitoring real-time material transformations.

How might on-demand alloying transform industrial applications?

The ability to blend elemental metal powders directly inside a printing chamber opens substantial possibilities for industrial manufacturing workflows. Traditional additive manufacturing requires facilities to stock separate pre-alloyed powders for every desired material composition. This inventory requirement creates significant logistical burdens and limits the flexibility of production environments. The new technique allows machines to feed individual elemental powders and blend them into finished alloys on the fly. This capability eliminates the need for extensive pre-mixed powder inventories and reduces material waste. Continuous composition grading across a single component becomes feasible with this approach. A jet turbine blade could gradually shift between different metallic compositions without relying on welded joints that might fail under operational stress. Metal printing remains far more demanding than polymer fabrication due to extreme melting temperatures and complex phase transitions. Suppressing defects and steering microstructure through elliptical scan patterns addresses critical quality control challenges. The research paper detailing these findings was published in Additive Manufacturing Volume 118, establishing a foundation for future industrial implementation. The methodology provides a scalable pathway for advanced material synthesis.

Conclusion

The integration of dynamic scanning patterns into metal additive manufacturing represents a practical evolution rather than a disruptive overhaul. By leveraging existing hardware and focusing on software-driven process control, the industry can address long-standing material compatibility issues without massive capital investment. The demonstrated ability to verify atomic mixing in real time provides manufacturers with unprecedented confidence in complex alloy fabrication. As production facilities adopt these software updates, the threshold for creating high-performance, multi-material components will continue to lower. This methodological advancement establishes a clear pathway toward more resilient, adaptable, and efficient metal printing operations across multiple engineering sectors. The focus on algorithmic optimization over hardware replacement ensures that the technology remains accessible to a broad range of industrial operators. Future developments will likely build upon these software foundations to further refine microstructural control and expand the range of viable elemental combinations.
