HPE Alletra Storage MP B10000 and NIST CSF 2.0

For decades, enterprise storage arrays have operated in the shadows of IT security, largely ignored by chief information security officers who focus on endpoints and network perimeters. This historical blind spot has created a dangerous vulnerability in modern data centers. As ransomware operators evolve their tactics, they have identified storage infrastructure as the highest-value target in any organization. Compromising the array allows attackers to encrypt primary data, destroy recovery snapshots, and eliminate backups in a single coordinated motion. The stakes have never been higher, as regulatory bodies in the United States, the European Union, and the United Kingdom now mandate demonstrable controls for detection and recovery.

HPE has engineered a comprehensive cyber resilience architecture centered on the Alletra Storage MP B10000, designed to align seamlessly with the NIST Cybersecurity Framework 2.0. By integrating native storage security with virtualization, continuous data protection, and long-term backup retention, the platform addresses the critical gap between storage operations and security governance. This coordinated approach ensures that enterprise storage remains under organizational control and that data stays protected against sophisticated ransomware threats.

Why does enterprise storage require a new security posture?

Storage administrators and security professionals have traditionally operated in silos, measuring success through different metrics and rarely sharing the operational language necessary for coordinated incident response. Storage teams focus heavily on throughput and capacity, while security teams track complex kill chains and attack vectors. This operational disconnect often goes unnoticed until an organization is forced to navigate it during a crisis. Modern ransomware operations have learned that endpoints and servers can be reimaged, but primary storage holds the actual data. An attacker who gains administrative control of the storage array can encrypt the data, delete the snapshots meant to recover it, and destroy the backups in a single coordinated motion.

At that point, the organization is not dealing with a simple inconvenience; it is negotiating for its survival. The tools available to attackers, including AI-assisted variants that adapt faster than signature-based defenses, are increasingly capable of reaching that target. As organizations scale their data centers, much like the discussions in our coverage of why storage infrastructure is essential to the AI economy, the underlying storage arrays are no longer passive repositories. They are active participants in the resilience strategy. Regulatory frameworks such as the EU Digital Operational Resilience Act and the NIS2 Directive require executive-level accountability for information and communication technology risk.

A storage array that hides its audit trail behind a vendor-only support portal cannot satisfy these obligations. The platform must stream audit and security events directly into the customer’s security information and event management system. This shift in perspective marks a fundamental change in how enterprise storage is viewed within the broader security landscape. Organizations can no longer rely on perimeter defenses alone to protect their most critical assets.

How does the HPE Alletra Storage MP B10000 align with NIST CSF 2.0?

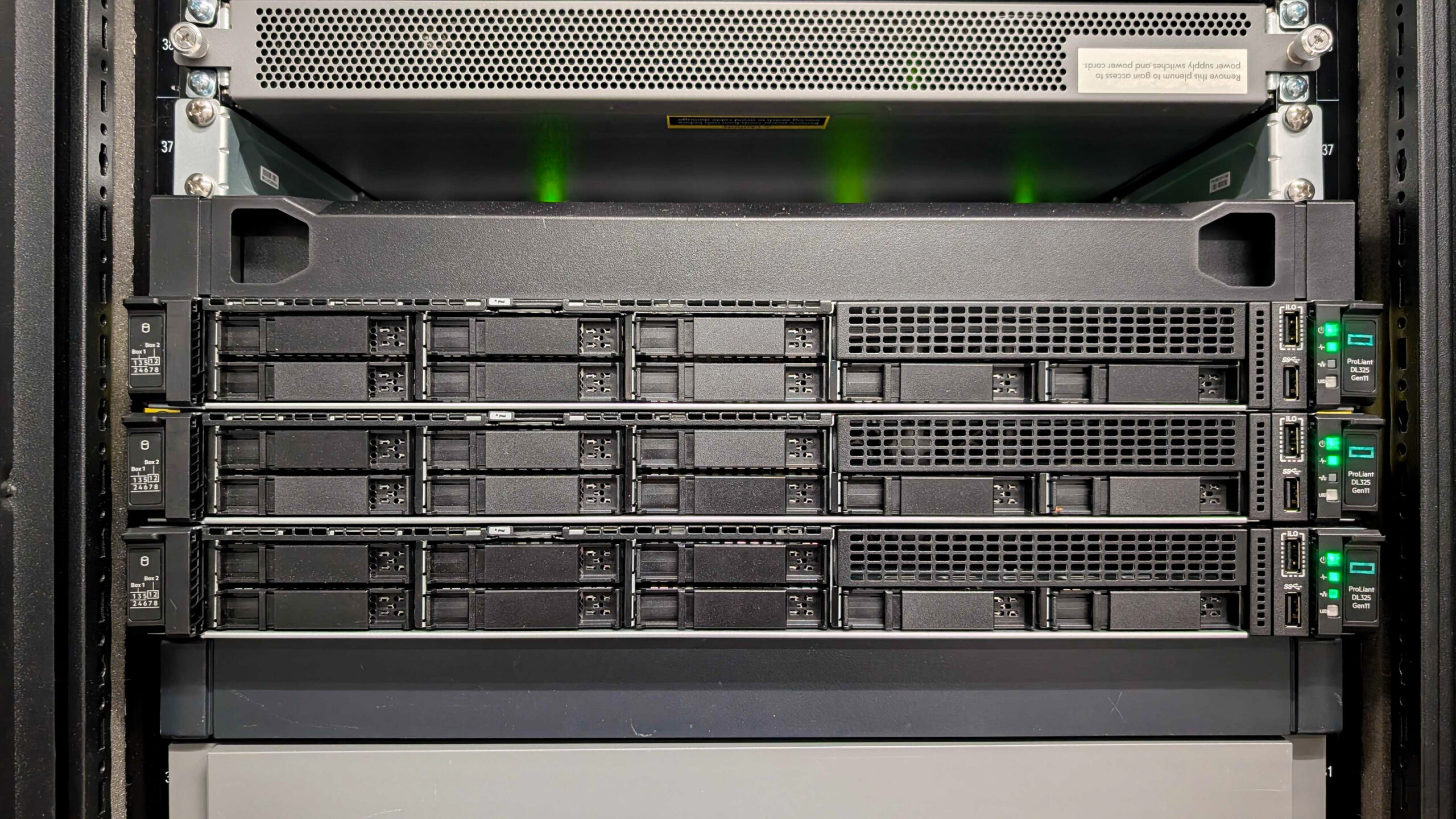

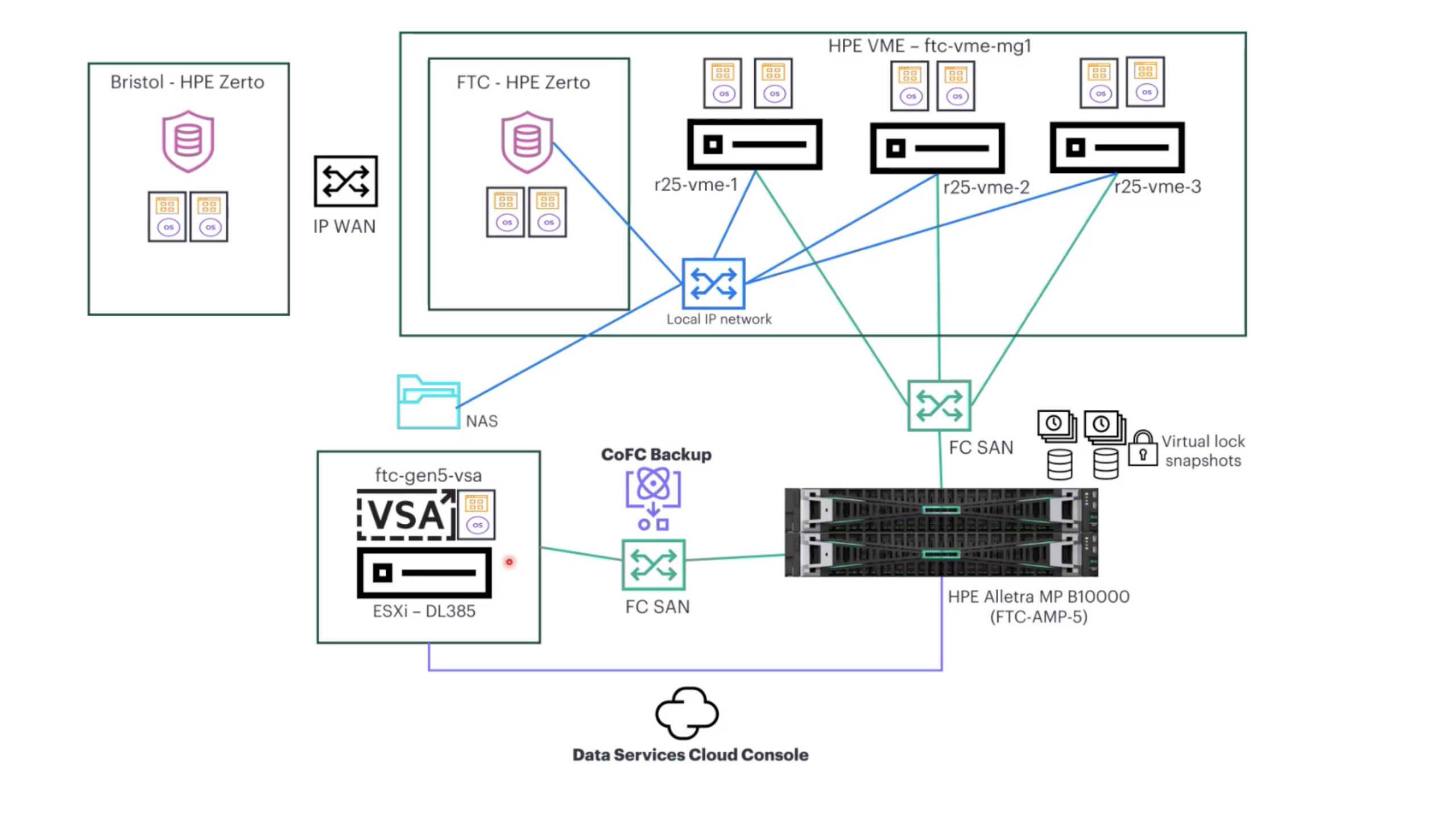

To provide a practical demonstration of this alignment, HPE built a compact but functional recovery and backup stack in its Fort Collins lab. At the center of the environment is a three-node HPE VM Essentials cluster running on HPE ProLiant DL325 Gen 11 Servers. These hosts provide the compute layer and are interconnected through a local IP network that also connects to the NAS layer. Running inside the cluster are the HPE Zerto virtual machines, configured similarly to traditional VMware deployments.

A WAN-connected secondary Zerto environment is available in the Bristol lab in the United Kingdom, with firewall rules and network paths in place to support replication from Fort Collins. The intent of this topology is multi-site recovery, allowing workloads protected in Fort Collins to fail over to Bristol if the primary site becomes unavailable. This scalable approach mirrors the strategies discussed in our report on how HPE updates AI infrastructure for agentic AI scale, ensuring that data protection keeps pace with expanding computational demands.

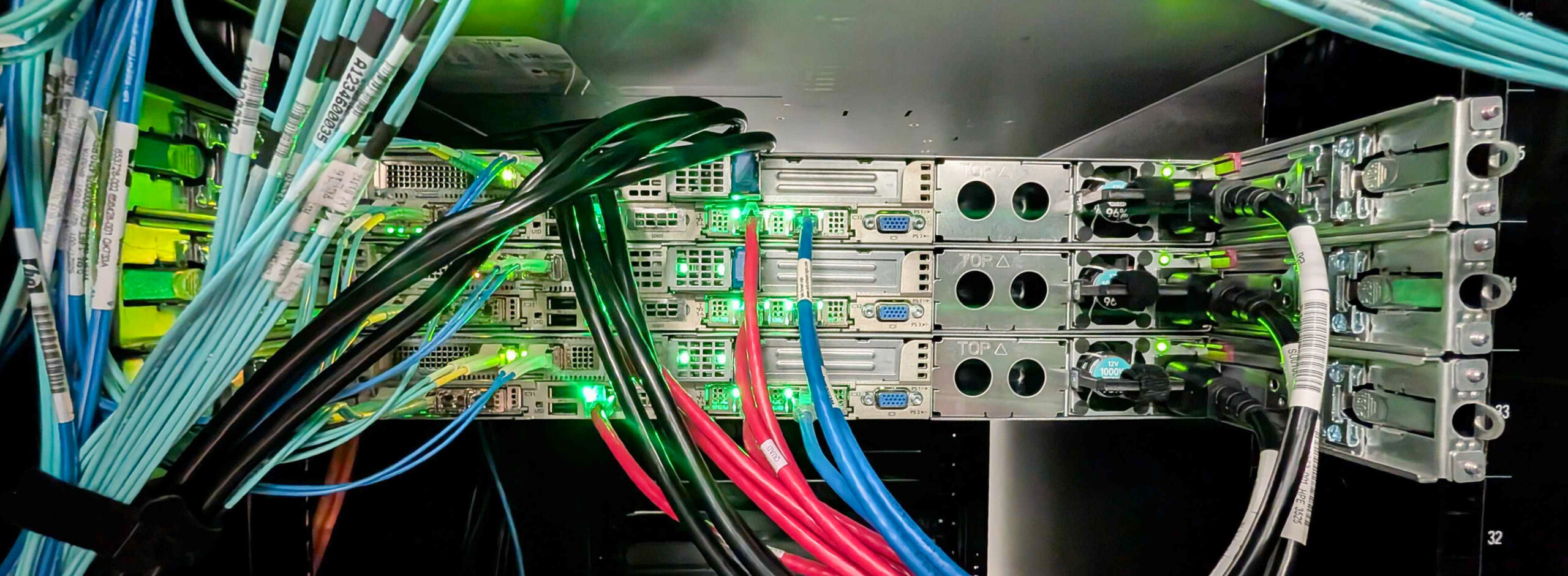

Storage connectivity in the environment is split between IP and Fibre Channel networking. The Fibre Channel SAN fabric connects the VME hosts directly to the HPE Alletra MP B10000 platform, providing shared access to enterprise storage across the cluster. The B10000 also presents Catalyst over Fibre Channel to the StoreOnce Virtual Storage Appliance, which is the path used for application-consistent backups between the array and the backup target.

For backup infrastructure, HPE deployed a StoreOnce Gen5 Virtual Storage Appliance running on a single HPE server. The physical StoreOnce appliance carries an advantage that goes beyond scale and throughput. A Virtual Storage Appliance runs as a guest on a hypervisor. If an attacker compromises the virtualization layer, every workload on it, including a backup target, is within reach.

A physical appliance has no such dependency, keeping the backup of last resort on infrastructure the attacker has not already breached. Both the HPE Alletra MP system and the StoreOnce Virtual Storage Appliance were onboarded to HPE’s Data Services Cloud Console, providing centralized management and visibility across the environment. This integration allows infrastructure to be monitored and managed from a single interface.

What mechanisms ensure data protection and rapid detection?

The architecture relies on four core mechanisms to maintain posture and detect threats: immutable Virtual Lock snapshot scheduling, a deliberate separation between array and hypervisor snapshots, replication to a second site, and continuous drift detection through the audit log stream. Virtual Lock snapshots are created on a schedule defined at the array and enforced directly by the B10000 storage platform.

These snapshots remain immutable and read-only throughout their configured retention window, preventing modification or deletion until expiration. Administrative actions against protected snapshots are recorded in the audit log and can be forwarded to external security information and event management platforms. Snapshots come from two places in this environment, and policy design depends on keeping them distinct.

B10000-scheduled snapshots are immutable and governed by Virtual Lock retention. VME snapshots, taken by HPE Morpheus VM Essentials at the hypervisor tier, are mutable and read-write for VM-level operational workflows. If an attacker gains access to the hypervisor, VME snapshots become accessible. Virtual Lock snapshots are not. The Virtual Lock schedule defines the retention floor. VME snapshots fill in the operational layer above it.

The detection logic for ransomware is entropy-based. Random data, which is what encrypted data looks like at the block level, has high entropy. Legitimate workload data, even when compressed, has a structure the engine recognizes. The engine uses a CuSum entropy calculation to measure the disorder in incoming writes relative to an established baseline.

The baseline is learned during a training window when a new volume is first protected and is then maintained by a rolling one-hour input and output profile. When entropy departs from the baseline by a statistically significant margin, the engine flags the volume. The B10000 ships with a built-in ransomware detection engine that monitors storage input and output patterns in real time.

The HPE Cybersecurity Center of Excellence has validated the engine against more than one hundred leading ransomware strains. Detection is enabled on a per-data-store basis from the VME side. When a data store is created or edited in VME against a B10000 storage server, the Ransomware Detection toggle is enabled by default for every volume provisioned in that data store.

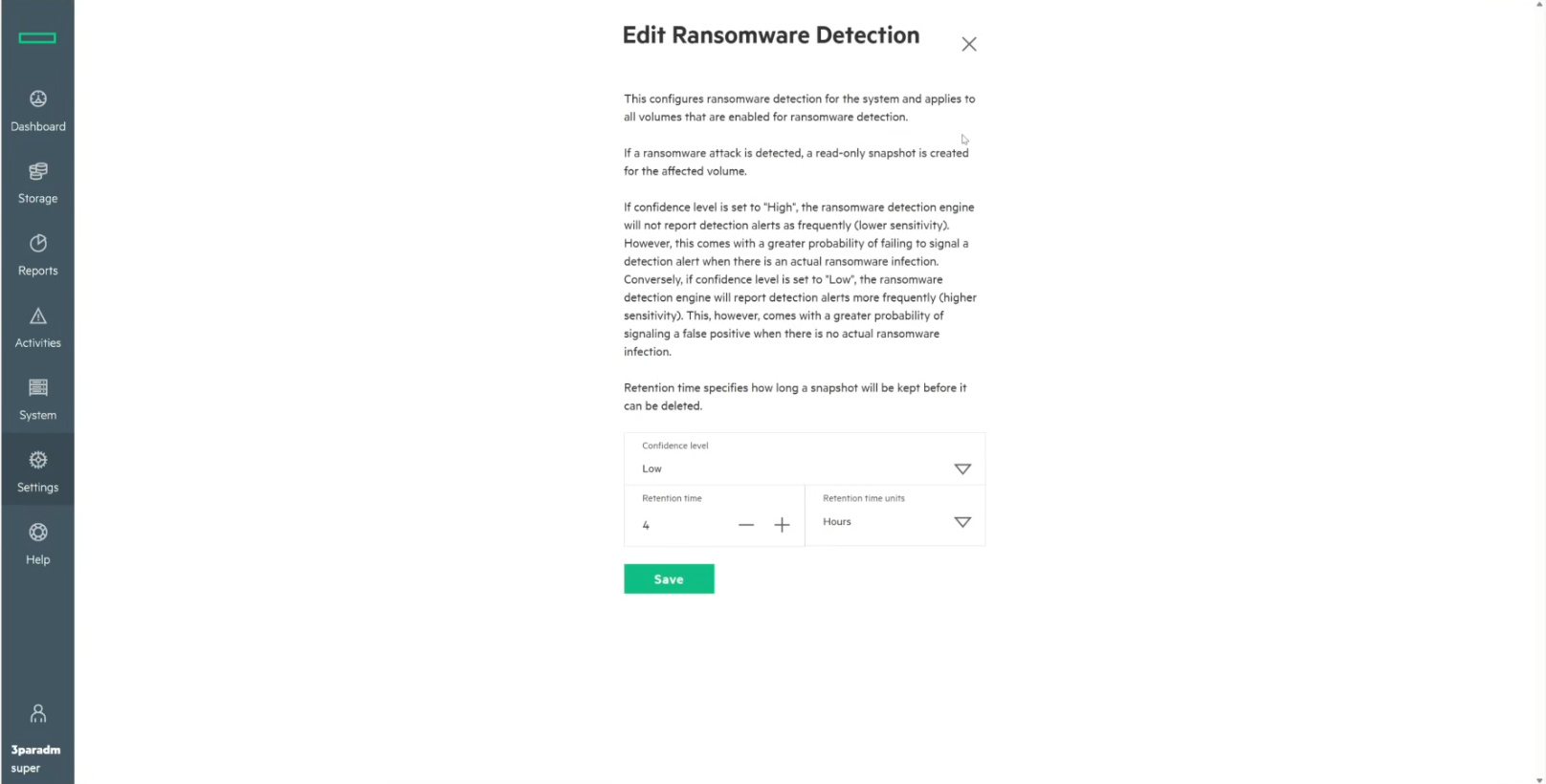

The B10000 also supports system-wide ransomware detection policies directly on the storage array, allowing administrators to define global detection sensitivity and automated snapshot retention behavior across protected volumes. The integration is deliberately vendor-agnostic. HPE’s role is to provide the groundwork and tools so the B10000 can feed audit and security log data into whatever security information and event management system an organization already runs.

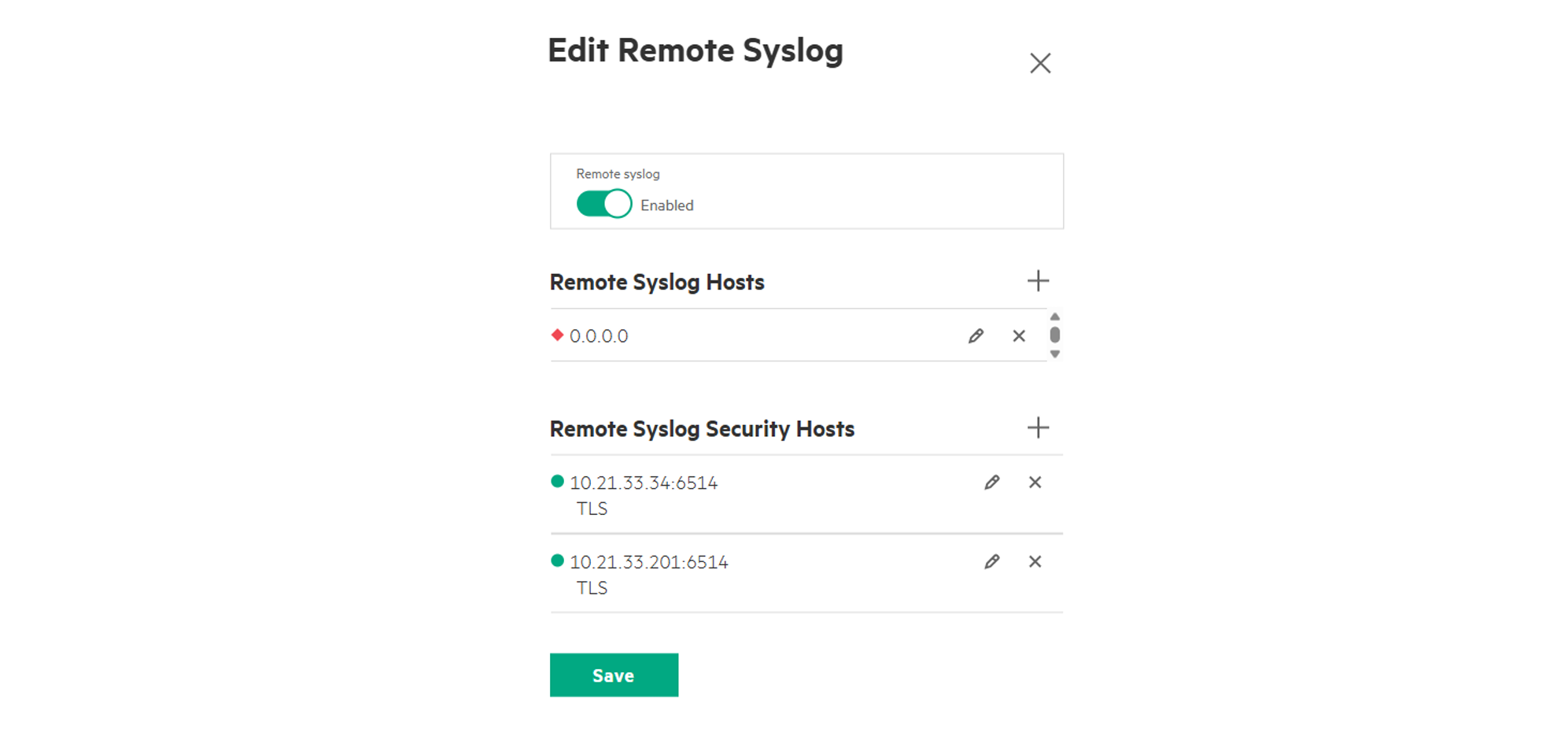

Detection alerts and audit events are exported through the security syslog stream. The Fluentd-based aggregator HPE publishes on GitHub takes the raw syslog message, normalizes it to Elastic Common Schema, and tags the event with fields such as event kind alert and event severity high so the receiving platform’s existing rule engine picks it up without custom parsing.

How does the tiered recovery model address different threat scenarios?

Recovery is a tiered set of decisions involving which recovery point, from which tier, restored to which environment, and validated by which process. The architecture built in the Fort Collins lab supports a four-tier recovery model, where each tier exists because the others do not solve the same problem. The first tier utilizes Zerto for continuous protection.

Near-synchronous replication with continuous journal logging gives the lowest recovery point objective in the stack. Granular restore lets the incident response team roll back a single virtual machine or file to a checkpoint from moments before the encryption event. This is the tier to reach for when the alert fires quickly and the attacker’s window is narrow.

The second tier relies on VME-native protection for daily virtual machine-level restore. The HPE Morpheus VM Essentials snapshot stream provides operational recovery at the virtual machine granularity. This tier handles routine restore work and serves as the fallback if the first tier is unavailable. The third tier involves B10000 immutable Virtual Lock snapshots for volume-level rollback.

This is the tier that matters most for the ransomware case. Virtual Lock snapshots are protected against deletion and modification, and the promote operation is B10000-native, with no third-party independent software vendor in the dependency chain. The fourth tier is StoreOnce Catalyst restore for long-term retention and cross-array recovery.

Tiers one through three protect against events measured in hours or days. Tier four protects against events measured in weeks or months, in cases where the attacker established persistence long before the encryption fired. Catalyst stores are deduplicated, immutable, and can be replicated across StoreOnce systems or detached to Cloud Bank object storage.

Catalyst Copy and Cloud Bank Detach together provide the one in the three-two-one-one model. This is also the tier where the physical-versus-Virtual Storage Appliance distinction carries the most weight. As the last-resort recovery option, Tier four must be able to survive a hypervisor compromise. That is the argument for deploying StoreOnce on a dedicated physical appliance rather than as a Virtual Storage Appliance in production.

Conclusion

The two questions a security practitioner asks about a storage platform are whether the infrastructure remains under the organization’s control and whether the data remains protected. After working through the architecture in the Fort Collins lab, the B10000 answers both more completely than a storage array alone usually can. The answer does not stop at the array.

The platform logs every administrative action, exposes every policy-relevant setting through its application programming interface, and streams the resulting audit and security telemetry to whatever security information and event management system the organization already runs. The governance plan remains the customer’s to write, but the instrumentation needed to implement it, evidence it, and prove it to an auditor is present and exposed rather than hidden behind a vendor portal.

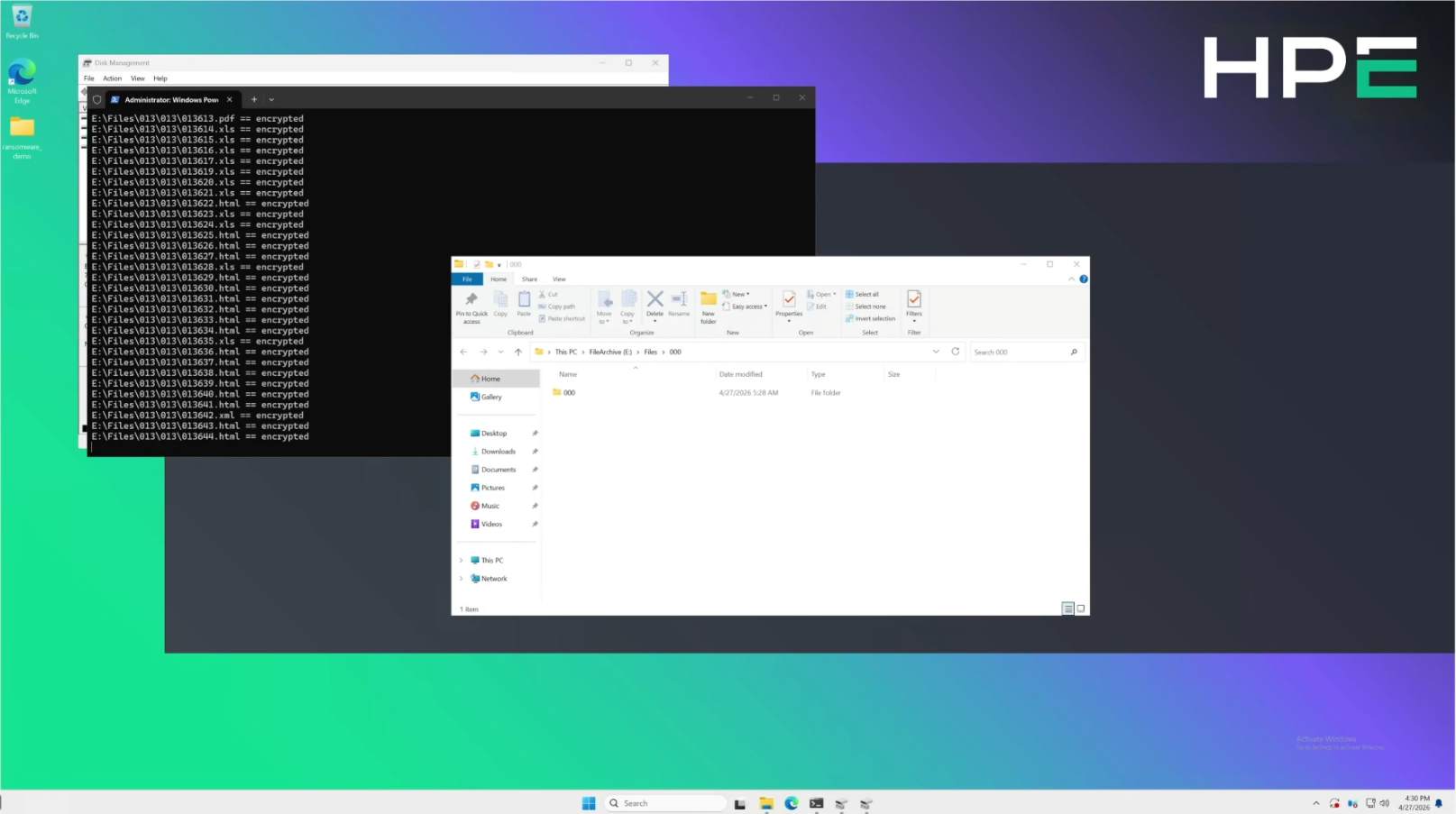

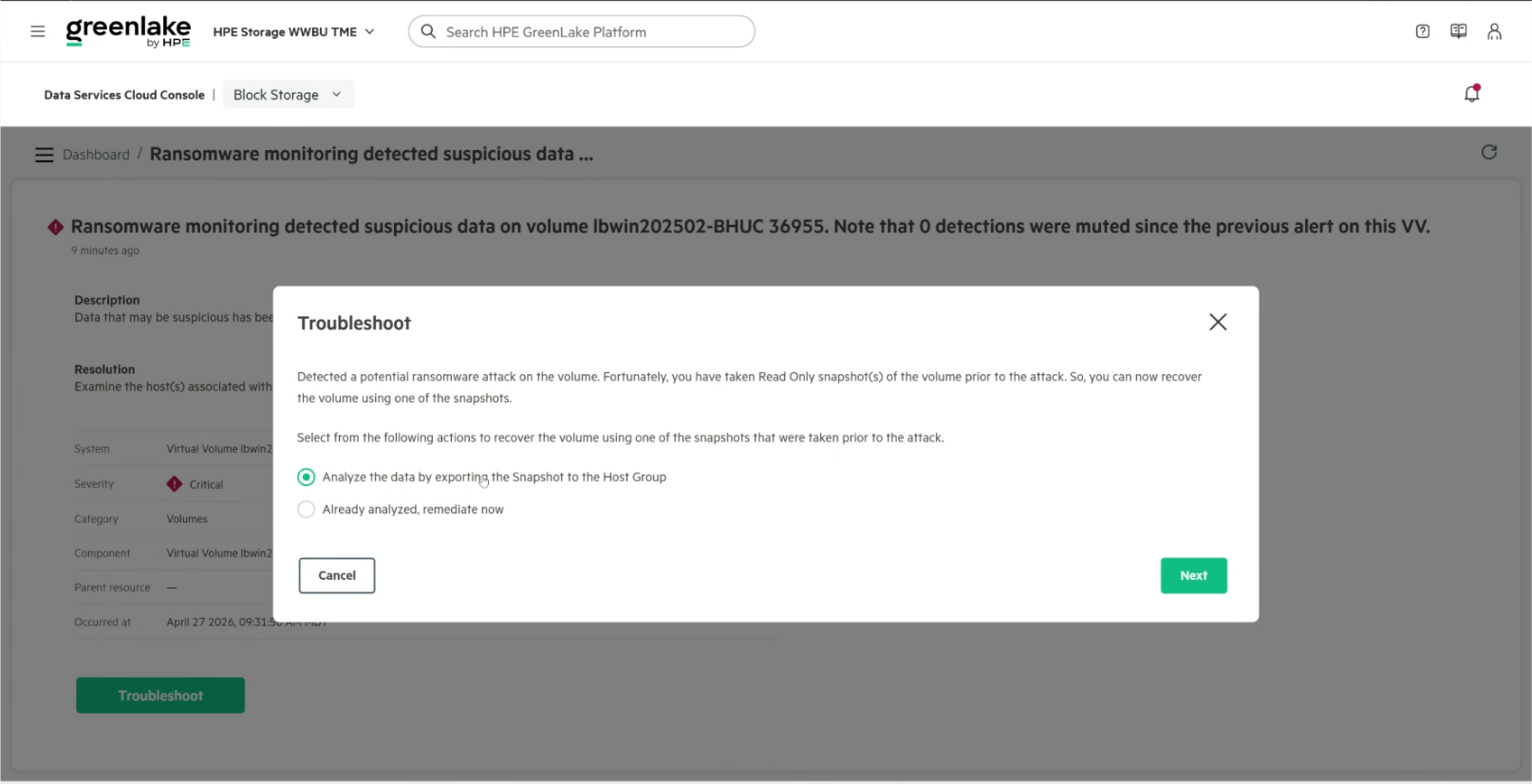

Immutable Virtual Lock snapshots mean that even a compromised administrator account cannot quietly destroy the recovery points, and any attempt to do so becomes a logged, queryable event. In terms of protection, the detect-and-recover loop at the center of the architecture is the part that held up most convincingly. The B10000 flagged the simulated encryption workload within four to five minutes at the block level and captured a forensic snapshot at the moment of detection without waiting on an external system.

The affected volume was recovered cleanly from both a scheduled Virtual Lock snapshot promote and a StoreOnce Catalyst restore. That is the sequence that matters most during an incident, and it ran without a third-party product in the dependency chain. What sets the architecture apart is not that the B10000 is dramatically more secure than competing arrays when considered in isolation.

It is that HPE is one of the few vendors positioned to deliver storage, virtualization, replication, backup, and observability as a coordinated system. For an enterprise that owns the infrastructure but answers to a separate security team and an external regulator, that coordination is the difference between a collection of capable products and a resilience strategy that can be operated under pressure.

The architecture is also advancing quickly. HPE is on a steady release cadence across the stack, with tighter integration between VM Essentials and the B10000, ransomware detection expanding to additional data types beyond block volumes, and a published full-stack reference architecture, all on the near-term roadmap. The direction points toward more of the coordination handled natively by the platform.

For years, the storage array was treated as one of the safest assets in the building, largely because no one was paying attention to it. The case this architecture makes is that the array should be the opposite: not the overlooked box in the corner, but an active participant in detecting and surviving an attack, provided the organization does the work of turning the capabilities into a plan.
