Breaking the Minute Mark in High-Speed 3D Printing

The pursuit of speed in additive manufacturing has long been constrained by fundamental physical limitations. For years, enthusiasts and engineers alike have treated the one-minute threshold as an insurmountable barrier when attempting to fabricate standardized test models. Recent developments in high-performance motion systems and thermal management have finally shifted this paradigm, demonstrating that rapid prototyping can operate well outside conventional velocity expectations without sacrificing structural integrity.

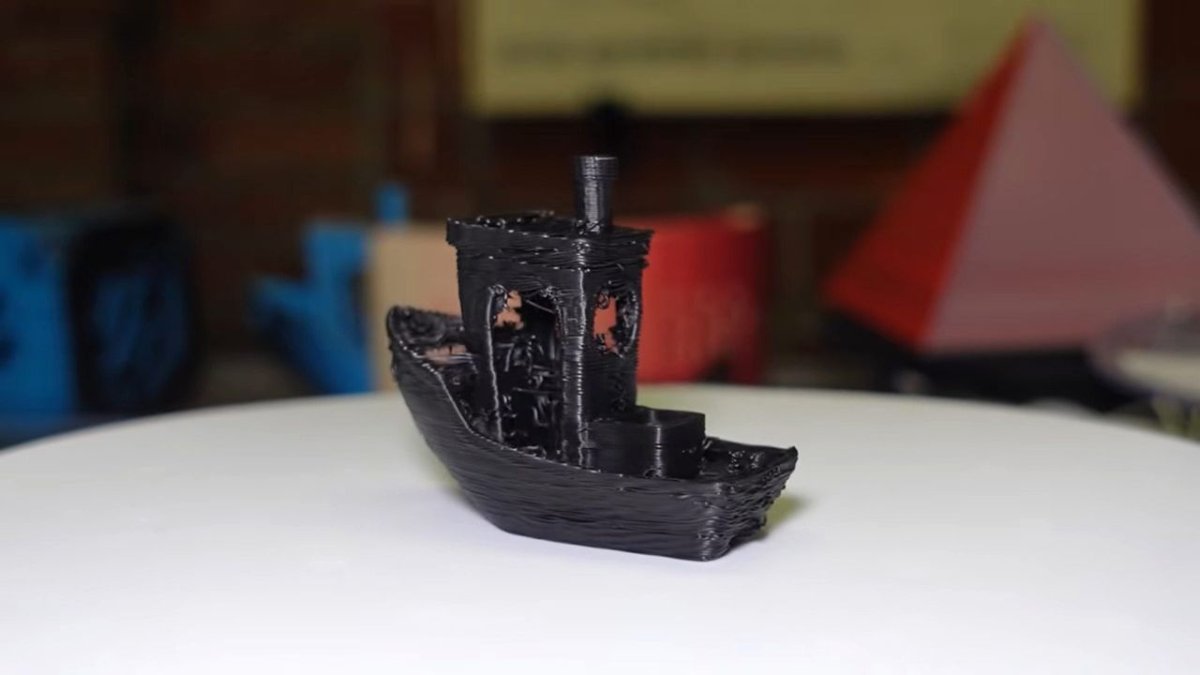

A dedicated maker successfully printed a 3DBenchy model in under sixty seconds by completely redesigning the bed motion system on a custom Minuteman printer. The achievement highlights how reducing moving mass and optimizing acceleration directly overcomes historical bottlenecks in high-speed additive manufacturing, proving that rapid prototyping can operate well outside conventional velocity expectations without sacrificing structural integrity.

Why does breaking the minute mark matter in additive manufacturing?

The historical context of speed records in three-dimensional printing reveals a persistent tension between velocity and precision. Standardized test objects like the 3DBenchy serve as universal benchmarks for evaluating printer performance across different hardware configurations. When a machine attempts to complete such a task in under sixty seconds, it forces engineers to confront the physical limits of material deposition and thermal dissipation. Previous attempts frequently stalled around the seventy-four second mark due to mechanical inertia and insufficient cooling capacity. Breaking this specific time threshold requires a comprehensive reevaluation of how each subsystem interacts during rapid extrusion cycles.

High-speed additive manufacturing demands that every component operate within a narrow window of optimal performance. The hotend must deliver filament at extreme rates without causing clogs or inconsistent layer heights. Simultaneously, the cooling architecture must solidify each deposited strand almost instantaneously to prevent sagging or deformation. These thermal and mechanical requirements create a complex feedback loop that traditional printer designs struggle to manage. When manufacturers successfully navigate these constraints, they unlock new possibilities for rapid prototyping workflows that previously required extended production times.

The implications extend beyond mere speed metrics into practical manufacturing applications. Industries that rely on quick iteration cycles benefit significantly from hardware capable of maintaining high throughput without compromising dimensional accuracy. Engineers can test multiple design variations in a fraction of the traditional timeframe, accelerating development pipelines and reducing overhead costs. This efficiency gain becomes particularly valuable when evaluating complex geometries that require extensive validation before moving to mass production.

Furthermore, achieving sub-minute print times challenges the conventional wisdom surrounding additive manufacturing limitations. It demonstrates that carefully engineered motion systems can overcome historical bottlenecks through targeted mechanical upgrades rather than complete hardware replacements. The successful execution of this record proves that incremental improvements in component design can yield substantial performance gains. Such breakthroughs encourage other developers to explore similar optimization strategies across different printer architectures.

How did the Minuteman printer overcome its previous limitations?

The Minuteman 3D printer architecture required substantial modifications to transition from a seventy-four second performance to a sub-sixty-second achievement. The original design already featured a hotend capable of handling approximately four hundred millimeters per second of filament flow. This extrusion capacity proved sufficient for the rapid deposition requirements, eliminating the need for major thermal upgrades. The cooling system also demonstrated adequate performance, delivering roughly four hundred liters of air per minute through its dedicated ducts. Additional thermal management could theoretically be achieved by introducing specialized gases like helium, though ambient airflow proved adequate for this specific attempt.

The primary bottleneck resided entirely within the bed motion system, which dictated the overall velocity ceiling of the machine. Traditional gantry designs suffer from excessive moving mass, which generates significant inertia during rapid acceleration and deceleration phases. This inertia forces the control system to limit peak speeds to prevent mechanical overshoot or layer shifting. By completely revamping the bed movement architecture, the builder successfully eliminated these restrictive physical constraints. The redesign focused heavily on minimizing the weight of every rotating and translating component.

Strategic material selection played a crucial role in reducing the overall system inertia. Carbon fiber composites replaced heavier metals in critical structural elements, drastically lowering the mass that required acceleration during each print cycle. Custom-cut components further optimized the weight-to-strength ratio, ensuring that durability did not suffer during extreme operational loads. The pulley wheels underwent significant mass reduction, allowing the drive motors to change velocity almost instantaneously without inducing mechanical stress.

These mechanical upgrades enabled the printer to execute the complex toolpaths required for the test model while maintaining strict dimensional tolerances. The granite slab mounting provided a stable foundation that absorbed vibrational energy, preventing resonance from affecting the final output quality. Fine-tuning the motion parameters after the initial successful run allowed the builder to maximize both speed and surface finish. This iterative approach demonstrates how targeted hardware modifications can systematically dismantle previous performance barriers.

What engineering principles govern high-speed filament extrusion?

The physics governing rapid material deposition involves complex interactions between viscosity, thermal gradients, and mechanical forces. When filament melts inside a high-flow hotend, it must transition through a narrow temperature zone before exiting the nozzle. Maintaining consistent melt pressure becomes increasingly difficult as extrusion rates climb beyond standard operational parameters. Any fluctuation in feed rate or thermal stability directly translates to visible defects in the final printed object. Engineers must therefore balance aggressive flow rates with precise thermal regulation to ensure uniform layer adhesion.

Cooling dynamics represent another critical factor in successful high-speed printing. Each deposited strand must solidify rapidly enough to support subsequent layers without collapsing under its own weight. Standard fans often struggle to keep pace with extreme deposition velocities, leading to warping or stringing artifacts. The specialized air duct system on the Minuteman printer addresses this challenge by directing focused airflow precisely where thermal management is most urgent. This targeted approach ensures that each layer achieves structural rigidity before the print head advances to the next position.

Motion control algorithms must also adapt to accommodate the physical realities of rapid acceleration. Traditional linear interpolation techniques can introduce jerk and vibration when pushing mechanical components beyond their natural resonant frequencies. Advanced motion planning strategies calculate smooth acceleration ramps that minimize inertial forces while maximizing throughput. The builder successfully implemented these principles by reducing moving mass and optimizing pulley ratios, allowing the drive motors to operate efficiently within their torque curves.

The interplay between extrusion speed and cooling efficiency creates a delicate equilibrium that defines print quality at high velocities. When both systems operate in harmony, the resulting object exhibits clean geometry and consistent layer bonding. Disrupting this balance inevitably leads to dimensional inaccuracies or surface degradation. Understanding these fundamental engineering principles allows developers to design machines that push the boundaries of additive manufacturing without compromising reliability.

How does motion system optimization influence print quality?

The relationship between mechanical precision and final output quality remains a central concern in high-speed additive manufacturing. Rapid acceleration forces generate lateral vibrations that can manifest as ringing artifacts or uneven layer heights on the printed surface. By minimizing the mass of moving components, the builder effectively reduced the kinetic energy that contributes to these unwanted oscillations. Lighter pulley wheels and carbon fiber structures respond more predictably to motor commands, resulting in smoother toolpath execution.

Vibration damping plays an equally important role in maintaining dimensional accuracy during extreme operational conditions. The granite slab mounting system provides exceptional rigidity, effectively isolating the print bed from external disturbances and internal motor harmonics. This stable foundation ensures that the nozzle maintains a consistent distance from the build surface throughout the entire printing cycle. Even minor deviations in Z-axis height can cause significant quality degradation when operating at high velocities.

Toolpath optimization further enhances the benefits of a revamped motion system. Modern slicing software calculates precise acceleration limits and jerk thresholds tailored to the specific mechanical capabilities of the hardware. When the machine can safely execute sharper turns and faster direction changes, the print head spends less time decelerating and more time depositing material. This efficiency gain directly translates to reduced cycle times without sacrificing geometric fidelity.

The successful comparison between the new sub-minute output and a previous sub-two-minute version highlights the tangible benefits of motion system upgrades. The newer iteration exhibits noticeably improved surface finish and sharper geometric details, proving that speed and quality are not mutually exclusive. Careful calibration of stepper motor currents and microstepping configurations ensures that positional accuracy remains intact despite the aggressive operational parameters.

What are the broader implications for the 3D printing industry?

The achievement of sub-sixty-second printing times signals a potential shift in how manufacturers approach rapid prototyping and small-batch production. As hardware capabilities expand, the traditional trade-off between speed and precision becomes increasingly manageable. Engineering teams can now iterate through multiple design revisions within a single workday, accelerating product development cycles and reducing time-to-market. This efficiency gain proves particularly valuable for industries that rely on quick validation of complex mechanical components.

The success of custom motion system upgrades also demonstrates the viability of targeted hardware modifications over complete machine replacements. Enthusiasts and professional engineers alike can achieve substantial performance improvements by focusing on specific mechanical bottlenecks rather than purchasing entirely new equipment. This approach lowers the barrier to entry for high-speed additive manufacturing, allowing smaller workshops and research labs to access advanced capabilities without prohibitive costs.

Thermal management innovations continue to play a supporting role in expanding the boundaries of rapid printing. While the current record relies primarily on optimized airflow, future developments may incorporate advanced heat exchange materials or localized cooling zones. These advancements will further stabilize the extrusion process, enabling even higher flow rates without compromising layer integrity. The ongoing refinement of these systems will likely drive broader industry standards for high-throughput additive manufacturing.

Community-driven development remains a powerful catalyst for pushing technological boundaries in this field. Open-source documentation and shared performance data allow developers worldwide to build upon successful experiments and replicate proven methodologies. The detailed documentation of this record-breaking attempt provides a valuable reference for future optimization efforts. The systematic elimination of mechanical inefficiencies mirrors the principles discussed in Understanding the Impact of Automated Code Removal in Modern Development, where targeted optimization yields substantial performance gains.

What comes next for rapid additive manufacturing?

The successful execution of a sub-minute 3DBenchy print represents a significant milestone in the ongoing evolution of high-speed additive manufacturing. By systematically addressing mechanical inertia, thermal management, and motion control, builders have demonstrated that historical speed barriers can be overcome through targeted engineering solutions. The resulting hardware configurations offer a clear pathway for accelerating prototyping workflows while maintaining strict dimensional accuracy. As these optimization techniques become more widely adopted, the industry will likely witness a new generation of printers designed specifically for rapid, high-fidelity production.
