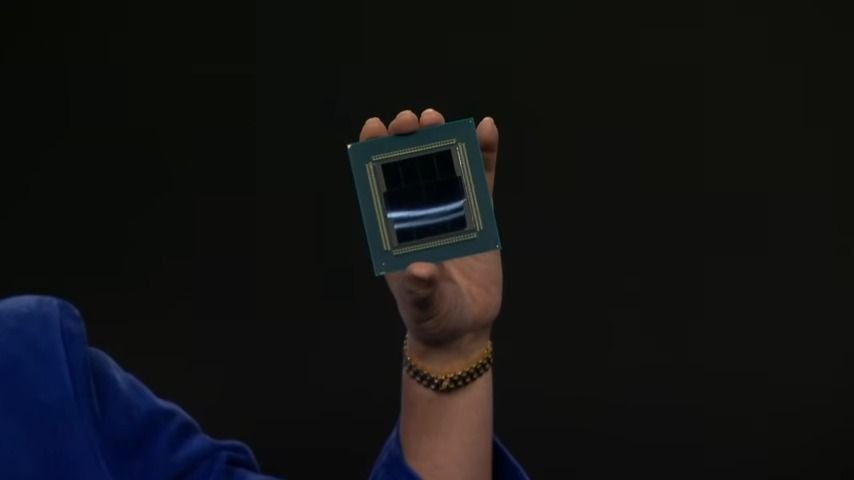

AMD Begins Production Ramp of 256-Core EPYC Venice Processor

The semiconductor industry has long awaited a definitive milestone in high-performance computing architecture. AMD recently confirmed that its sixth-generation EPYC processor, codenamed Venice, has officially entered production ramp on TSMC N2 process technology. This development marks the first time an enterprise-grade server chip has reached manufacturing readiness on a two-nanometer-class node. The announcement carries substantial weight for data center operators and cloud infrastructure providers who are actively scaling artificial intelligence workloads across global networks.

What is the significance of AMD Venice entering production on TSMC N2?

The transition to a two-nanometer-class manufacturing process represents a critical engineering threshold for modern server processors and enterprise computing architectures. TSMC began volume production on its N2 node late last year and is currently ramping five separate fabrication facilities this calendar year to meet projected demand curves. The foundry has publicly described these expansion efforts as responses to record industry requirements across multiple technology sectors. While consumer silicon manufacturers have historically prioritized initial capacity allocation, enterprise computing architectures require fundamentally different validation pathways and extended testing protocols.

Server and data center dies are significantly larger and architecturally more complex than standard smartphone system-on-chip designs. Getting these expansive processor layouts through yield qualification on a brand-new process technology presents a much bigger challenge for semiconductor engineers. AMD with Venice will be the first high-performance computing product to successfully navigate this manufacturing hurdle. This achievement demonstrates substantial progress in adapting advanced node capabilities to heavy enterprise workloads rather than consumer mobile applications.

The processor architecture incorporates up to one hundred sixty memory channels delivering approximately one point six terabytes per second of per-socket bandwidth. Additionally, the design features doubled CPU-to-GPU bandwidth that likely indicates support for next-generation peripheral component interconnect express standards. AMD previewed these technical specifications at its Advancing AI event last year and during recent consumer electronics exhibitions. The current production announcement puts the chip firmly on track for commercial shipments later this calendar year.

Dr. Lisa Su, chair and chief executive officer of AMD, emphasized that artificial intelligence and agentic workloads are scaling rapidly across global infrastructure networks. She noted that customers require computing platforms capable of moving from laboratory innovation to commercial production at accelerated speeds. This strategic alignment explains why the Venice processor prioritizes high single-thread performance alongside general-purpose computational efficiency. The manufacturing timeline reflects a deliberate response to enterprise demand for faster deployment cycles in data center environments.

How does the architectural shift from Turin to Venice impact high-performance computing?

The sixth-generation EPYC lineup introduces up to two hundred fifty-six Zen six processing cores within a single socket configuration that supports extensive parallel computation tasks. This core density represents a substantial leap over the current Turin processor family that currently dominates enterprise deployments across global data centers. The claimed seventy percent compute performance gain directly addresses the escalating computational requirements of modern machine learning frameworks and distributed database systems. Enterprise architects are actively evaluating whether this architectural progression justifies infrastructure migration timelines alongside hardware refresh cycles.

The SP7 socket designation establishes a new physical interface standard for next-generation server motherboards and rack-mounted computing chassis. This hardware transition requires coordinated updates across cooling subsystems, power delivery networks, and motherboard trace routing designs. Data center operators must carefully plan their hardware refresh cycles to accommodate these physical infrastructure changes alongside the computational upgrades. The architectural evolution reflects a broader industry shift toward maximizing processing density within constrained thermal envelopes.

Memory bandwidth improvements directly influence how efficiently processors can access training datasets and inference models without bottlenecking computational pipelines. The sixteen memory channel configuration allows simultaneous data streaming across multiple processing clusters while maintaining low latency characteristics. Cloud providers managing large language model deployments will likely prioritize these bandwidth enhancements over raw core count metrics. The architectural design balances computational throughput with memory subsystem efficiency to optimize real-world enterprise workloads.

AMD also confirmed the development of a follow-on processor called Verano that shares the same two-nanometer manufacturing foundation. This secondary chip targets performance per dollar and power consumption optimization rather than absolute peak computational throughput. The dual-processor strategy allows enterprise customers to select hardware configurations based on specific budget constraints and energy efficiency requirements. Market segmentation within the same architectural family provides flexibility for diverse data center deployment scenarios.

Why does TSMC's manufacturing ramp present unique challenges for server silicon?

Semiconductor fabrication economics dictate that initial capacity allocation typically favors consumer electronics manufacturers with higher volume turnover rates and shorter product lifecycles. Apple reportedly secured the lion’s share of initial N2 capacity for consumer silicon applications before enterprise computing platforms could negotiate substantial wafer commitments. This market dynamic reflects historical industry patterns where mobile processor demand drives early node adoption cycles and manufacturing priority schedules. Enterprise server architectures must navigate these allocation priorities while maintaining strict reliability standards for commercial deployment environments.

Yield qualification processes require extensive testing across thousands of individual die samples to identify manufacturing defects and performance variations. Server processors undergo more rigorous validation protocols than consumer mobile chips due to their extended operational lifespans and critical infrastructure dependencies. The two-nanometer process introduces novel transistor structures that demand precise electrochemical control during fabrication stages. Engineering teams must continuously monitor defect rates while scaling production volumes across multiple international facilities.

Geographic manufacturing diversification represents a strategic priority for semiconductor supply chain resilience and geopolitical risk mitigation. AMD plans to eventually produce Venice at TSMC's Arizona campus facility as part of broader domestic expansion initiatives. That initiative likely refers to Fab twenty-one Phase three which broke ground last April and is slated for N2 and advanced sixteen process technologies. Volume two-nanometer production remains expected before two thousand twenty-eight at the earliest within this regional manufacturing hub.

The transition from overseas fabrication to domestic assembly requires extensive infrastructure development and specialized workforce training programs. Semiconductor manufacturing facilities demand highly controlled environmental conditions alongside massive electrical power capacity for photolithography equipment operation. Regional expansion efforts align with broader government incentives designed to strengthen national technology supply chains. These logistical considerations influence long-term production timelines even after initial overseas ramp completion.

What are the competitive dynamics shaping the next generation of data center processors?

AMD currently holds a record forty-six percent server CPU revenue share as of first quarter two thousand twenty-six according to Mercury Research industry analysis. This market position represents an increase from approximately forty percent recorded during the company's Financial Analyst Day presentation last November across multiple regional markets. Venice will likely extend that competitive momentum into segments where rival manufacturers rely on existing processor lineups for extended deployment periods without architectural updates. Market share progression reflects sustained engineering advantages in enterprise computing environments alongside accelerated production timelines.

Intel's Diamond Rapids processor family, designated as the P-core Xeon seven lineup, would serve as Venice's direct competitive counterpart. Industry reports suggest this competing architecture has been delayed to mid-two thousand twenty-seven deployment timelines. The postponement creates an extended market window where AMD can establish architectural standards before rival products reach commercial availability. Competitive timing advantages significantly influence enterprise procurement decisions and infrastructure planning cycles.

Intel's only new server product expected this calendar year is Clearwater Forest, an E-core design built on Intel eighteen A process technology. This processor supports up to two hundred eighty-eight cores but focuses optimization on high-density deployments rather than general-purpose computational performance. The architectural divergence highlights distinct market strategies where density optimization competes against single-thread efficiency benchmarks. Enterprise customers must evaluate workload characteristics before selecting between competing silicon architectures.

Granite Rapids Xeon six processor lineup will likely remain Intel's primary server offering for at least another twelve months while next-generation designs undergo validation. This extended reliance on existing architecture creates opportunities for competitor processors to capture market share during transitional deployment periods. Enterprise procurement teams frequently evaluate hardware refresh cycles against architectural performance metrics and total cost of ownership calculations. The competitive landscape continues shifting toward manufacturers capable of delivering faster production timelines alongside sustained computational gains.

Strategic Implications for the Server Computing Market

The Venice processor manufacturing milestone establishes a new baseline for enterprise silicon deployment cycles and architectural performance expectations. Data center operators will evaluate whether seventy percent compute gains justify infrastructure migration costs alongside socket transition requirements. Cloud providers managing artificial intelligence workloads must balance computational throughput demands against power consumption constraints and memory bandwidth limitations. The industry continues adapting to accelerated production timelines while maintaining rigorous reliability standards for commercial deployment.

Semiconductor manufacturing expansion efforts reflect broader technological shifts toward domestic fabrication capacity alongside advanced node adoption cycles. Enterprise computing architectures will continue prioritizing single-thread efficiency and memory subsystem optimization over raw core density metrics. Market dynamics favor manufacturers capable of navigating yield qualification challenges while delivering commercial products within accelerated deployment windows. The next generation of server processors will likely define computational standards for artificial intelligence infrastructure development across global networks.
