AMD Introduces EXPO Ultra Low Latency for DDR5 Memory Optimization

The evolution of system memory has consistently driven incremental gains in computational throughput and graphical rendering. Recent announcements from AMD regarding a new automatic memory overclocking protocol suggest another step forward in this ongoing trajectory. The initiative targets DDR5 modules by introducing a standardized approach to timing optimization, promising measurable performance improvements across a wide array of gaming workloads. This development reflects a broader industry shift toward automated performance tuning that reduces user complexity while maintaining hardware reliability.

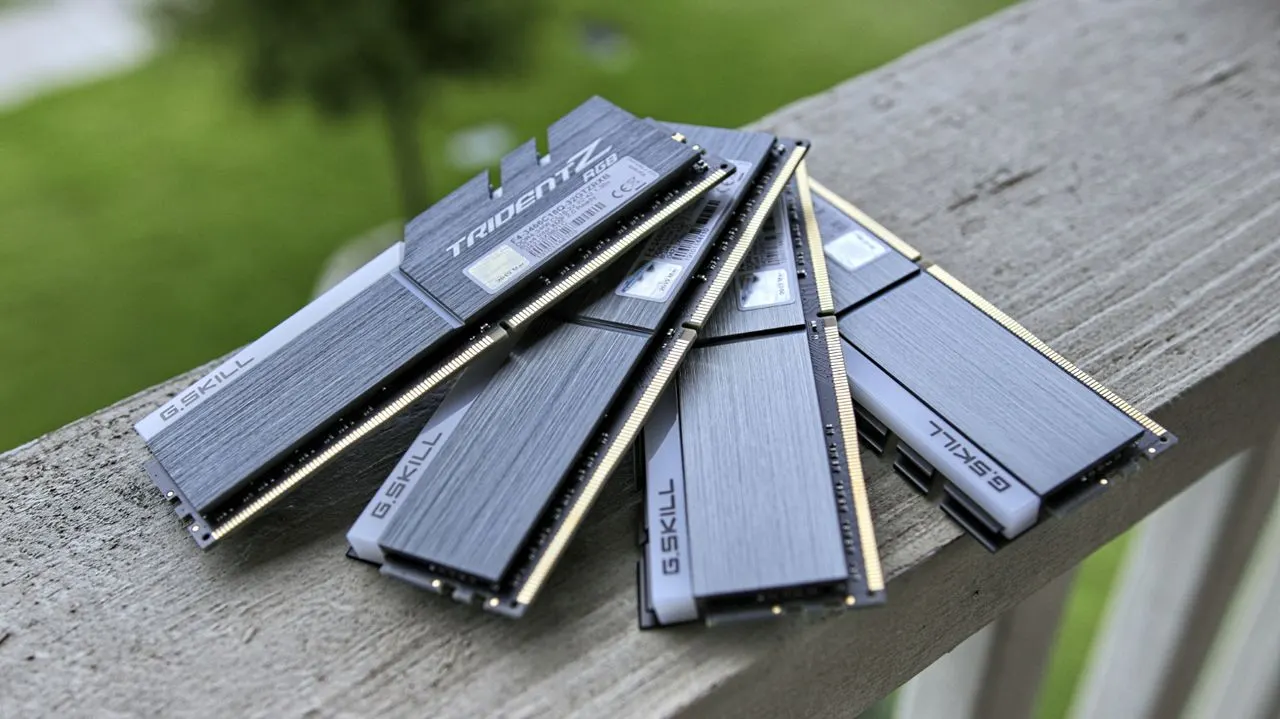

AMD has introduced EXPO Ultra Low Latency, an automatic memory overclocking feature designed to optimize DDR5 DIMM timings. Internal benchmarks indicate a thirteen percent performance uplift over JEDEC standards and a four percent improvement compared to standard EXPO profiles. Major memory manufacturers are preparing to support the new specification, though detailed technical documentation remains pending.

What is EXPO Ultra Low Latency and How Does It Function?

The technology represents a deliberate evolution within the existing Extended Profiles for Overclocking ecosystem. Rather than requiring manual voltage adjustments or precise timing entries, the system automatically calculates optimal parameters based on the physical characteristics of the installed memory modules. This automation significantly reduces the technical barrier for users who lack specialized knowledge of memory controller tuning. The protocol operates at the motherboard level, reading the serial presence detect data to apply the correct configuration during the boot sequence.

AMD has positioned this development as a direct response to the growing complexity of modern memory architectures. As data rates continue to climb, the margin for error in timing configuration shrinks significantly. Manual overclocking often yields diminishing returns while introducing stability risks that can compromise system reliability. By automating the process, the company aims to deliver consistent performance gains without demanding extensive user intervention. The feature will be available through major memory partners, including established manufacturers like G.Skill, Kingston, and TeamGroup.

The implementation relies on sophisticated algorithms that analyze memory module specifications during the initial power-on self-test. These algorithms compare the installed hardware against a database of validated timing configurations. When a match is found, the motherboard applies the optimized settings automatically. This process eliminates the guesswork traditionally associated with memory tuning. Users can simply enable the feature through their system configuration interface and allow the hardware to handle the rest. The approach prioritizes stability and reproducibility over maximum theoretical performance.

Why Does Memory Latency Matter for Modern Computing?

System memory latency directly influences how quickly a processor can access frequently used data. Lower latency values translate to reduced wait times between the central processing unit and the memory controller. This reduction becomes particularly noticeable in gaming scenarios where frame pacing and responsiveness dictate the overall user experience. While bandwidth determines the volume of data transferred per second, latency governs the speed of individual data requests. Optimizing both metrics simultaneously requires careful calibration of timing parameters.

The industry has long prioritized bandwidth improvements, but latency optimization has gained renewed attention as modern applications demand faster response times. Graphics engines, physics calculations, and asset streaming all rely on rapid memory access cycles. When latency decreases, the processor spends less time idle waiting for data. This efficiency allows the central processing unit to maintain higher clock speeds and deliver more consistent frame rates. The resulting improvement in smoothness often proves more valuable to users than raw peak performance metrics.

Memory hierarchy design plays a crucial role in how latency impacts overall system performance. Modern processors utilize multiple cache levels to minimize access delays, but these caches have limited capacity. When requested data falls outside the cache, the processor must query the main memory modules. Tighter timing parameters reduce the delay associated with these queries. This reduction becomes especially important in CPU-bound scenarios where the processor waits for instructions or data. Optimizing memory access patterns directly improves computational efficiency.

How Does the New Standard Compare to Existing JEDEC and EXPO Specifications?

The baseline for modern DDR5 modules remains the JEDEC standard, which establishes minimum speed and timing requirements to ensure universal compatibility across all manufacturers. Standard JEDEC configurations prioritize stability and broad support over maximum performance. Users who enable standard EXPO profiles typically see a moderate increase in speed, often reaching DDR5-6000 with adjusted timings. These profiles already represent a significant step above baseline specifications, but they do not fully exploit the capabilities of high-quality memory chips.

The latest optimization layer aims to bridge the gap between standard profiles and manual overclocking results. Internal testing indicates a four percent performance improvement over standard EXPO configurations. When compared directly to JEDEC baseline speeds, the uplift reaches thirteen percent across a wide selection of gaming titles. The testing methodology included over thirty different games, with performance measured at average frame rates and one percent low values. These metrics provide a more accurate representation of real-world usage than peak performance numbers alone.

The improvement stems from tighter timing parameters rather than higher clock speeds. By reducing the CAS latency and adjusting other critical timing values, the system can process memory requests more efficiently. The optimization does not require additional voltage in most cases, which helps maintain power efficiency and thermal stability. This approach allows motherboard manufacturers to implement the feature through routine BIOS updates rather than requiring specialized hardware components. The result is a more accessible path to enhanced performance for the average consumer.

Evaluating current platform value requires considering both performance gains and implementation costs. Recent market analysis suggests that Intel processor pricing shifts and component availability trends influence how new memory technologies are adopted. Components that offer reliable performance improvements without requiring premium pricing will likely see stronger adoption rates. The availability of support from multiple major memory manufacturers ensures that consumers will have numerous options when upgrading their systems. This competition should help keep pricing competitive while driving further innovation in memory module design.

What Are the Practical Implications for System Builders and Gamers?

System integrators and custom builders will likely welcome the standardized approach to memory optimization. Manual timing configuration has traditionally required extensive testing and troubleshooting to achieve stable results. The automated protocol eliminates much of this friction by applying verified parameters directly during the boot process. This simplification allows builders to focus on other aspects of system design, such as cooling efficiency and power delivery. It also reduces the likelihood of compatibility issues between different memory modules and motherboard chipsets.

Gamers will experience more consistent performance across different titles. Memory optimization often yields the most noticeable benefits in CPU-bound scenarios, where the processor waits for data rather than waiting for the graphics card. Titles that rely heavily on physics calculations, artificial intelligence routines, or complex asset streaming will benefit most from reduced latency. The improvement in one percent low values suggests that stuttering and frame time spikes will decrease, leading to a smoother overall experience. This consistency matters more to many users than occasional peak performance spikes.

The broader market context also influences how this technology will be adopted. Hardware distribution patterns continue to shift as the industry recalibrates for emerging computational demands. Q1 hardware distribution contracts show that component supply chains are adapting to new performance benchmarks. Components that offer reliable performance improvements without requiring premium pricing will likely see stronger adoption rates. The availability of support from multiple major memory manufacturers ensures that consumers will have numerous options when upgrading their systems. This competition should help keep pricing competitive while driving further innovation in memory module design.

How Will Industry Partners and Motherboard Manufacturers Adapt?

Motherboard manufacturers will need to update their BIOS implementations to recognize and apply the new timing parameters. This process involves integrating the optimization algorithms into the memory training routines that run during system startup. The update will likely follow established patterns for profile management, allowing users to enable or disable the feature through standard configuration menus. Manufacturers are expected to release these updates alongside their latest platform firmware releases.

Memory module producers are already preparing to ship compatible products. The new specification will require additional validation during the manufacturing process to ensure that each batch meets the optimized timing requirements. Quality control procedures will need to account for the tighter tolerances associated with lower latency configurations. This additional scrutiny may influence production timelines, but it will ultimately result in more reliable products for end users. The collaboration between memory manufacturers and motherboard makers will determine how quickly the feature becomes widely available.

The industry has a history of adopting new memory standards through gradual implementation. Early adopters will likely see the most significant benefits, while mainstream adoption will follow as firmware updates become standard. The technology does not replace existing EXPO profiles but rather supplements them with an optimized alternative. Users who prefer manual control can still configure their systems manually, while those who prefer automation can rely on the new standard. This flexibility ensures that the feature appeals to a broad range of consumers.
