ASRock Rack 1U10E-ALTRA/1L2T Server Architecture and Efficiency Analysis

The modern data center faces a persistent challenge in balancing computational density with operational efficiency. As organizations scale their infrastructure to support increasingly demanding applications, the traditional reliance on x86 architecture faces new scrutiny regarding power consumption and thermal output. Hardware manufacturers have responded by exploring alternative processor designs that prioritize core count and energy optimization over raw clock speeds. This shift has introduced ARM-based server platforms into the enterprise hardware conversation, offering a different pathway for infrastructure planning.

What is the architectural foundation of the ASRock Rack 1U10E-ALTRA/1L2T?

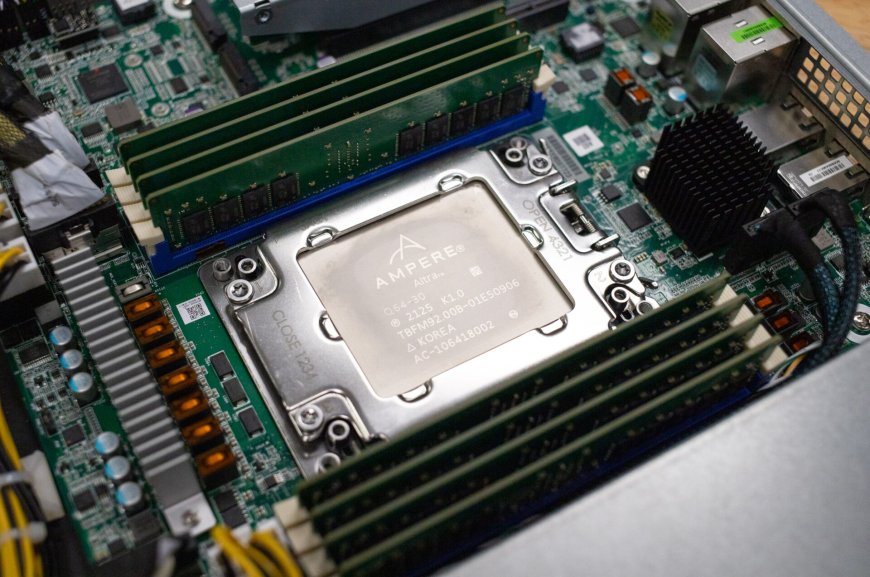

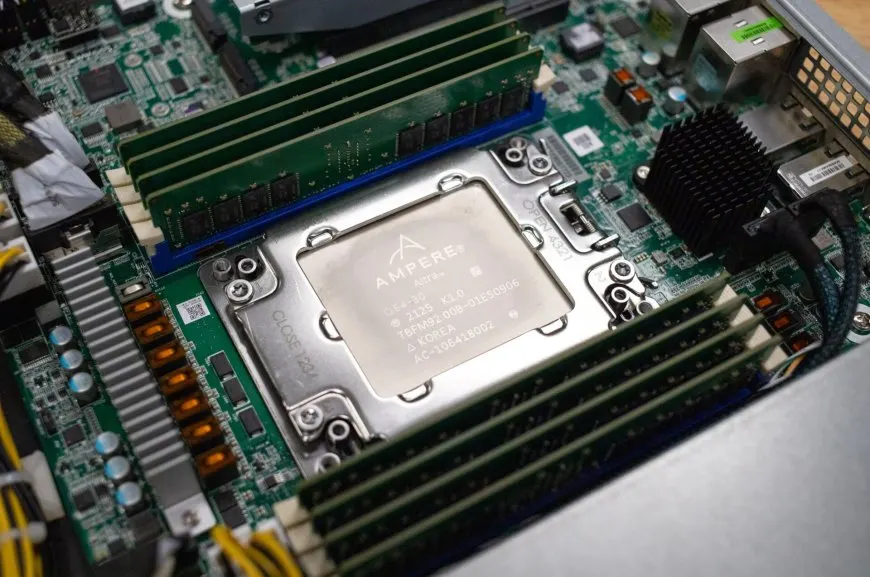

The foundation of this server platform rests on the LGA 4926 socket, which accommodates both Ampere Altra and Ampere Altra Max processors. These central processing units utilize an ARMv8 architecture, diverging from the long-standing dominance of x86 designs in the enterprise space. The decision to implement an ARM-based processor reflects a broader industry trend toward instruction set architectures that maximize parallel processing capabilities while minimizing electrical draw. Each processor core operates independently, allowing the system to handle numerous concurrent threads without the thermal penalties associated with high-frequency clock speeds. This architectural choice fundamentally changes how administrators approach workload distribution and hardware provisioning.

Storage and Expansion Architecture

Storage density represents a critical component of modern server design, and this chassis addresses that requirement through a carefully planned layout. The front panel houses ten hot-swap 2.5-inch NVMe drive bays, providing substantial raw storage capacity without consuming valuable rack space. These bays connect via PCIe 4.0 x4 lanes, ensuring that data throughput remains robust under heavy operations. Two additional M.2 slots reside internally, supporting both 2280 and 2230 form factors for boot drives or cache layers. The rear of the unit features a single full-height, full-length PCIe 4.0 x16 expansion slot. Administrators should note that this slot operates at x16 speeds only when paired with an Ampere Altra Max processor, while standard Altra variants will reduce the bandwidth to PCIe 4.0 x8.

Memory and Processing Capabilities

Memory architecture plays a vital role in determining how effectively a server can handle virtualized environments and database operations. This platform provides eight DDR4 288-pin slots designed for registered and load-reduced dual in-line memory modules. By utilizing high-capacity 256-gigabyte modules, the system can accommodate up to two terabytes of RAM, operating at speeds reaching 3200 megahertz. The memory controller is integrated directly into the processor, which reduces latency and improves data transfer efficiency between the central processing unit and the installed modules. This configuration allows administrators to allocate substantial memory resources to individual virtual machines without worrying about traditional memory bottlenecks that often plague older server generations.

How does the hardware configuration support modern data center demands?

Modern data centers require hardware that can scale efficiently while maintaining predictable performance characteristics. The ASRock Rack 1U10E-ALTRA/1L2T addresses these demands through a combination of high-density storage, substantial memory capacity, and streamlined power delivery. The chassis dimensions measure 625 millimeters in length, 430 millimeters in width, and 43.5 millimeters in height, allowing it to fit seamlessly into standard 19-inch rack enclosures. Power delivery is handled by two slim 650-watt power supplies that carry 80 Plus Platinum certification. This dual-supply configuration ensures redundancy while maximizing energy conversion efficiency, which directly reduces operational costs and cooling requirements in densely packed server rooms.

Virtualization and Operating System Compatibility

The transition to ARM-based server infrastructure requires careful consideration of software compatibility and virtualization support. Enterprise administrators often rely on established hypervisors to manage computing resources, and the compatibility of these platforms with alternative architectures has improved significantly in recent years. Testing has demonstrated that the VMware ESXi ARM Fling can install successfully on this hardware, providing a familiar management interface for virtual machine deployment. Once the hypervisor is operational, administrators can provision virtual machines running ARM-native operating systems, such as Ubuntu server for ARM or Red Hat Enterprise Linux. It is important to recognize that non-ARM compatible operating systems cannot execute on this hardware. This limitation requires administrators to verify application dependencies before deployment.

Why does ARM-based server infrastructure matter for enterprise workloads?

The shift toward ARM-based server processors addresses several persistent challenges that have affected traditional x86 infrastructure. Power consumption remains a primary concern for data center operators, as electrical costs and cooling requirements scale directly with hardware density. ARM architectures typically deliver higher performance per watt, allowing organizations to run more cores within the same thermal envelope. This efficiency translates into lower total cost of ownership over the lifespan of the hardware. Additionally, the instruction set architecture is inherently designed for parallel processing, which aligns well with modern cloud computing models, containerized applications, and database workloads that benefit from numerous simultaneous threads rather than high single-core clock speeds.

Power Efficiency and Thermal Management

Thermal management in a 1U chassis requires precise engineering to prevent component degradation and maintain consistent performance. The ASRock Rack 1U10E-ALTRA/1L2T incorporates dedicated temperature sensing for both the system-on-chip and the motherboard, alongside fan tachometers that monitor cooling airflow in real time. The dual platinum-rated power supplies contribute to thermal efficiency by reducing wasted energy as heat. Operating temperatures are specified between 10 degrees Celsius and 35 degrees Celsius during active use, with non-operational tolerance extending from negative 40 degrees to 70 degrees Celsius. These specifications ensure that the hardware remains reliable in standard data center environments while maintaining stability during extended computational tasks. Compact chassis design often mirrors the challenges discussed in the MINISFORUM AtomMan G7 Pro Review, where compact power meets thermal reality.

What are the practical implications for deployment and management?

Deploying an ARM-based server platform introduces specific considerations for system administrators who are accustomed to traditional x86 management workflows. The out-of-band management system relies on the OpenBMC framework, which provides a web-based interface for monitoring and controlling the hardware. This interface displays system information, firmware versions, network configurations, power metrics, and hardware inventory details. The hardware inventory tab allows administrators to verify processor specifications and memory status, including the identification of individual failed memory modules. This level of visibility simplifies troubleshooting and reduces the time required to resolve hardware issues in production environments. Regular monitoring through these tools ensures consistent operational performance.

Out-of-Band Management and Remote Access

Remote management capabilities are essential for maintaining server infrastructure across distributed data centers. The ASRock Rack platform utilizes an ASPEED AST2500 baseboard management controller paired with a dedicated Realtek RTL8211E controller for the IPMI network port. This configuration enables administrators to access the system console regardless of the operating system state. The integrated KVM console allows remote interaction with the server, even when the machine is powered off. Administrators can mount virtual media to install operating systems or update drivers without requiring physical access to the chassis. These features are provided through the open-source OpenBMC framework, which avoids the licensing fees often associated with proprietary management solutions.

Deployment Considerations and Workload Alignment

Successful deployment of this server requires alignment between hardware capabilities and application requirements. Organizations should prioritize workloads that can leverage ARM-native software stacks, such as containerized microservices, web servers, and database engines that have been optimized for the architecture. While the platform demonstrates strong potential for virtualization through the VMware ESXi ARM Fling, administrators must verify that all guest operating systems and applications support the aarch64 instruction set. The system supports Red Hat Enterprise Linux and CentOS Stream versions 8 and 9 for ARM architectures, providing a stable foundation for enterprise software deployment. Careful planning ensures that the efficiency benefits of the hardware are fully realized without encountering software compatibility barriers.

Conclusion

The evolution of server hardware continues to diversify as organizations seek solutions that balance performance, density, and operational cost. The ASRock Rack 1U10E-ALTRA/1L2T represents a deliberate step toward ARM-based infrastructure, offering a compact chassis that prioritizes energy efficiency and storage density. While the platform requires careful workload alignment and software verification, its architectural design provides a viable alternative for enterprises looking to reduce power consumption and expand computational capacity. As cloud computing models mature, platforms like this will likely play an increasingly important role in shaping the next generation of data center hardware.
