ATX12VO V3 Standard Details: Smaller Connectors and Enhanced Power Monitoring

The architecture governing desktop power delivery has undergone significant transformation over the past decade. Engineers have consistently sought ways to reduce component complexity while improving energy conservation across computing workloads. Intel Corporation now appears poised to introduce a third revision of its twelve-volt-only power specification, aiming to streamline motherboard layouts and enhance real-time power monitoring capabilities. This development marks a deliberate shift away from legacy multi-rail designs toward a more centralized and efficient power distribution model.

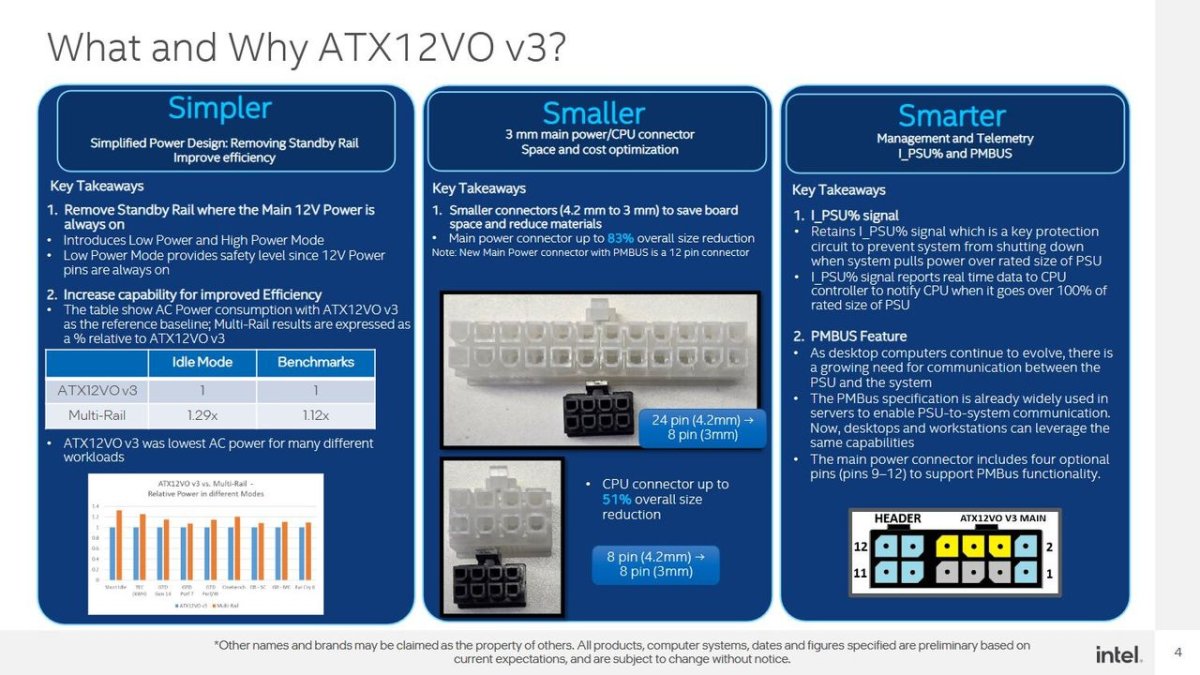

Intel is reportedly preparing to release the ATX12VO V3 specification, which eliminates the standby voltage rail, introduces a compact eight-pin main power connector, and integrates advanced communication protocols for precise power monitoring. These modifications aim to reduce manufacturing costs, improve idle efficiency, and provide system builders with detailed operational data for better hardware management and long-term reliability across desktop platforms.

What is the ATX12VO V3 standard and why does it matter?

The Advanced Technology eXtended twelve-volt only standard was initially introduced to simplify power circuitry and lower production expenses for original equipment manufacturers. By removing the traditional three-point-three-volt and five-volt output rails, the specification requires the power supply unit to deliver a single twelve-volt line directly to the motherboard. The motherboard then handles all voltage regulation for individual components. This architectural choice shifts the burden of power conversion from the external unit to the internal circuit board, fundamentally altering how desktop systems manage electrical distribution.

The upcoming third iteration builds upon previous revisions by addressing long-standing efficiency limitations. Intel has indicated that the new specification will remove the standby power rail entirely, ensuring that the primary twelve-volt line remains active at all times. This continuous power delivery model eliminates the need for complex standby circuitry that typically draws unnecessary energy during idle periods. The change represents a significant step toward reducing baseline power consumption across commercial and institutional desktop environments.

Evolution of the 12-Volt-Only Architecture

Previous iterations of the specification have already demonstrated measurable improvements in power delivery reliability. The second revision arrived alongside broader graphics card standards to support next-generation peripheral interfaces. It also introduced enhanced monitoring capabilities that allowed system integrators to track power distribution more accurately. These incremental updates proved valuable for business deployments and pre-built desktops, where consistent performance and simplified maintenance remain critical priorities.

The transition away from legacy multi-rail designs reflects a broader industry trend toward centralized voltage regulation. Modern processors and memory modules require stable and precise power delivery that traditional multi-rail units struggle to provide efficiently. By consolidating power conversion onto the motherboard, manufacturers can optimize trace routing and reduce electromagnetic interference. This approach also allows original equipment manufacturers to standardize power supply units across diverse product lines without compromising component compatibility. The ongoing refinement of these standards mirrors broader efforts to modernize residential electrical infrastructure for computing applications.

The historical trajectory of desktop power delivery demonstrates a consistent effort to balance performance demands with thermal constraints. Early personal computers relied on bulky multi-rail units that generated significant heat and occupied substantial chassis volume. As processor architectures evolved, the demand for stable voltage regulation increased dramatically. Engineers recognized that shifting regulation responsibilities to the motherboard would reduce heat generation and improve overall system reliability. This foundational concept paved the way for modern twelve-volt-only designs.

Removing the Standby Rail for Efficiency Gains

Intel has conducted internal testing to quantify the energy savings associated with the new standby rail removal. The company reports that conventional multi-rail power supplies consume approximately twenty-nine percent more energy during idle states compared to the new reference platform. During active benchmark workloads, the traditional design also draws roughly twelve percent more power than the updated architecture. These figures highlight the tangible benefits of eliminating unnecessary voltage conversion stages.

The specification also introduces dedicated low-power and high-power operational modes to further optimize energy consumption. These modes allow the system to dynamically adjust power delivery based on immediate workload demands. By reducing the complexity of internal power management circuits, manufacturers can achieve higher overall efficiency ratings. This shift aligns with broader regulatory efforts to minimize energy waste in consumer and commercial computing hardware.

Modern computing environments frequently experience extended periods of low activity, making idle power consumption a critical metric for energy conservation. Legacy standby rails require continuous voltage conversion even when the system appears inactive. Eliminating this rail removes a persistent source of energy waste that accumulates significantly over time. The continuous twelve-volt delivery model ensures that power conversion occurs only when necessary, reducing thermal output and lowering electricity costs for users who maintain always-on desktop workstations.

How does the new 8-pin connector change system design?

The physical interface between the power supply and the motherboard will undergo a substantial reduction in size. The current implementation utilizes a ten-pin connector, while the upcoming revision will adopt an eight-pin configuration with a three-millimeter pitch. Intel claims this modification reduces the overall connector footprint by up to eighty-three percent when compared to the legacy twenty-four-pin interface. The processor power connector will also shrink to a three-millimeter pitch, achieving a fifty-one percent reduction in physical dimensions.

These dimensional changes provide original equipment manufacturers with significantly more flexibility during chassis and motherboard development. Smaller connectors free up valuable real estate on the printed circuit board, allowing for denser component placement and improved airflow management. The reduced physical footprint also lowers material costs and simplifies assembly processes. System integrators can optimize internal layouts more effectively, particularly when designing compact desktop enclosures or high-density server configurations.

Physical Dimensions and Motherboard Real Estate

The reduction in connector size directly impacts how motherboard engineers route power traces and position critical components. Traditional twenty-four-pin interfaces occupy substantial board space that could otherwise accommodate additional expansion slots or cooling solutions. By adopting a compact eight-pin design, manufacturers can reorganize internal routing paths to minimize signal interference and improve thermal distribution. This optimization becomes increasingly valuable as processor power requirements continue to rise.

Smaller connectors also streamline the manufacturing process for both power supply units and motherboards. Reduced pin counts simplify molding and assembly procedures, which can lower production costs and improve yield rates. Original equipment manufacturers benefit from standardized components that require less custom tooling. The industry-wide adoption of compact connectors will likely accelerate the development of smaller form factor desktop systems without sacrificing power delivery capabilities.

Compact desktop systems require meticulous attention to internal space allocation. Traditional power connectors often obstruct airflow pathways and limit the placement of high-performance cooling solutions. By adopting a smaller eight-pin interface, chassis designers can route cables more efficiently and reduce physical bottlenecks. This optimization becomes particularly valuable in small form factor builds where every millimeter of clearance matters. The reduced connector size also simplifies cable management, resulting in cleaner internal aesthetics and improved thermal performance.

Enhanced Communication Through PMBus and I_PSU%

The new eight-pin connector will incorporate four optional pins dedicated to the Power Management Bus communication protocol. This protocol, traditionally utilized in server environments, will enable detailed monitoring of voltage levels, current draw, temperature readings, and overall power delivery metrics. System administrators and advanced builders will gain access to granular operational data that was previously unavailable in consumer-grade power supplies. This transparency supports proactive maintenance and precise hardware tuning.

The specification also introduces the I_PSU% signal, which allows the power supply to transmit real-time utilization data directly to the motherboard and central processing unit. This continuous feedback loop enables the system to detect when the power supply approaches or exceeds its rated capacity. By providing early warnings of potential power limitations, the architecture helps prevent sudden system shutdowns during intensive workloads. System builders can also utilize this data to select power supply units with more accurate capacity margins.

The integration of server-grade communication protocols into consumer desktop specifications represents a notable convergence of enterprise and personal computing technologies. Data centers have long utilized advanced monitoring standards to maintain operational stability and prevent catastrophic hardware failures. Translating these capabilities to the desktop market allows individual users and small business operators to monitor power delivery with professional-grade precision. This democratization of monitoring tools supports more informed hardware decisions and extends the operational lifespan of critical components.

What are the practical implications for builders and OEMs?

The combination of reduced physical dimensions, improved efficiency, and enhanced monitoring capabilities will significantly impact desktop assembly strategies. Original equipment manufacturers will benefit from standardized power delivery components that simplify inventory management and reduce manufacturing complexity. The elimination of the standby rail and the introduction of dynamic power modes will lower operational costs for commercial deployments. These factors make the updated specification particularly attractive for institutional and enterprise environments.

Independent system builders may also experience advantages through improved power management and more accurate capacity planning. The real-time utilization data provided by the new communication protocols allows for precise component pairing and optimized cooling solutions. While the transition requires updated motherboard designs and compatible power supply units, the long-term benefits of streamlined assembly and enhanced reliability will likely drive widespread adoption across the desktop computing market.

The financial impact of updated power delivery standards extends beyond manufacturing costs to consumer purchasing decisions. Budget desktop configurations often rely on standardized components to maintain competitive pricing. As original equipment manufacturers adopt the new specification, supply chain efficiencies will likely translate to lower retail prices for compatible power supplies and motherboards. This trend aligns with broader market efforts to deliver reliable computing hardware without excessive premiums. System builders will benefit from predictable component availability and streamlined upgrade paths.

When can the industry expect a wider rollout?

Intel has not yet announced an official release date for the updated specification. Industry observers anticipate that a formal introduction could occur during the Computex 2026 technology expo. The timeline suggests a gradual transition period that will allow motherboard manufacturers and power supply producers to update their product lines accordingly. Component vendors will need to redesign internal circuitry and connector housings to meet the new physical and electrical requirements.

The rollout schedule will likely depend on the pace of adoption among original equipment manufacturers and system integrators. Early adopters in the commercial sector will probably implement the updated standard first, given the immediate efficiency and management benefits. Consumer market penetration will follow as component availability increases and production costs stabilize. The industry will closely monitor implementation timelines to assess the impact on desktop power delivery infrastructure.

Component validation and certification processes will play a crucial role in determining the actual deployment timeline. Manufacturers must verify that the new connector dimensions and communication protocols meet established safety and performance benchmarks. Rigorous testing phases will likely involve compatibility assessments with existing peripherals and power management software. These evaluations ensure that the updated standard delivers reliable performance across diverse hardware configurations before widespread commercial distribution begins.

Conclusion

The evolution of desktop power delivery continues to prioritize efficiency, compact design, and precise monitoring capabilities. The upcoming specification represents a deliberate move toward centralized voltage regulation and streamlined component integration. By eliminating unnecessary power rails and reducing connector dimensions, manufacturers can achieve higher performance margins while lowering production expenses. Enhanced communication protocols will provide system builders with unprecedented visibility into power utilization patterns. These advancements will shape the next generation of desktop computing hardware.

As component vendors adapt to the new physical requirements, the desktop market will experience a gradual but steady transformation. Original equipment manufacturers will likely lead the transition by updating their commercial product lines first. Independent builders will follow as compatible motherboards and power supplies become widely available. The industry will continue to evaluate performance metrics and efficiency gains to ensure that the updated architecture meets the demands of modern computing workloads.
