Prinano Validates Photonic Chip Production Using Nanoimprint Lithography

The global semiconductor industry stands at a critical juncture where traditional manufacturing boundaries are colliding with geopolitical constraints. A recent announcement from a Chinese technology firm suggests that an alternative fabrication method may finally bridge the gap between theoretical possibility and industrial reality. By bypassing highly restricted equipment and adopting a fundamentally different approach to pattern transfer, the company claims to have achieved a significant milestone in chip production. This development forces industry observers to reconsider long-held assumptions about cost structures, yield rates, and the future architecture of semiconductor manufacturing.

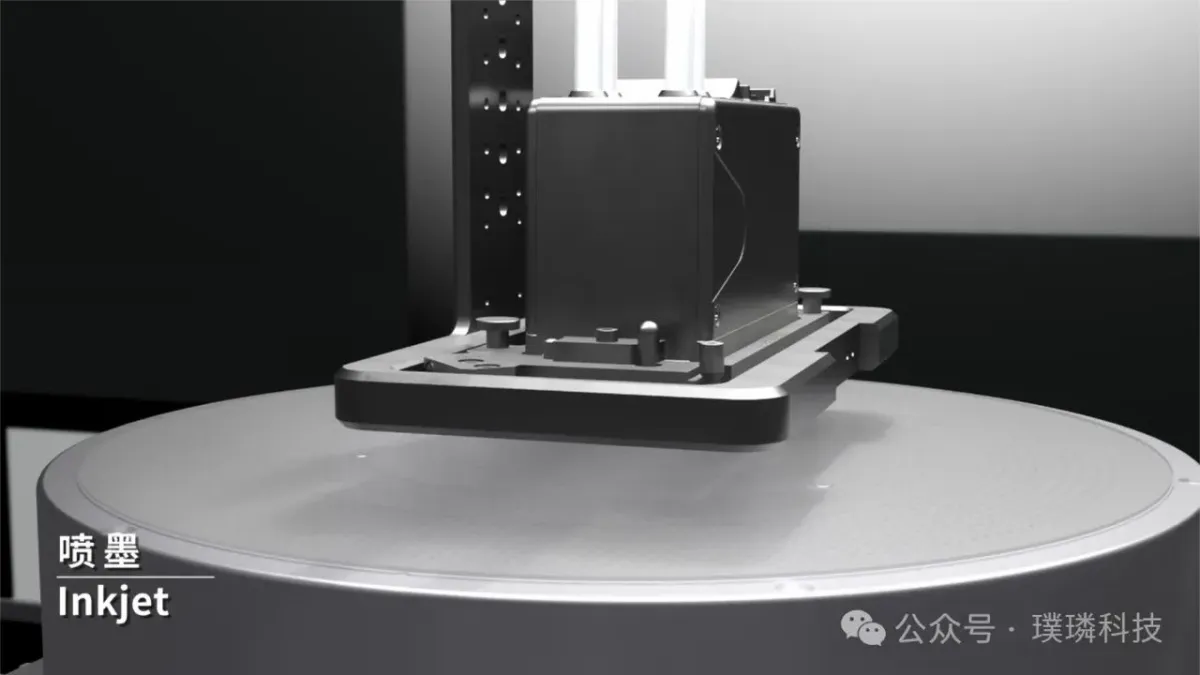

Chinese startup Prinano validated mass production of photonic chips using nanoimprint lithography on eight-inch wafers. The process eliminates deep-ultraviolet equipment requirements and reportedly reduces manufacturing expenses by ninety percent. While the technology targets specialized optical components rather than advanced processors, it highlights ongoing efforts to circumvent international export controls through alternative fabrication pathways.

What is nanoimprint lithography and how does it differ from traditional methods?

Modern semiconductor fabrication relies heavily on deep-ultraviolet (DUV) lithography systems and extreme ultraviolet (EUV) projection equipment. These machines utilize complex optical lenses and mirrors to project circuit patterns onto silicon substrates with extraordinary precision. The equipment represents some of the most intricate engineering achievements in human history, requiring massive capital investments and highly controlled environmental conditions. Each generation of logic chips demands increasingly sophisticated light sources and photoresist materials to maintain scaling trajectories.

Nanoimprint lithography operates on a completely different physical principle than conventional optical methods. Instead of projecting patterns through light, the process mechanically stamps nanoscale structures directly into a specialized resist layer coating the substrate. This approach functions similarly to traditional printing or embossing techniques but operates at microscopic dimensions. The method eliminates the need for expensive projection optics and complex illumination systems that dominate conventional fabrication facilities.

The technology has faced significant hurdles since its initial conception decades ago. Manufacturing environments demand exceptional uniformity across entire wafer surfaces while maintaining strict defect tolerances. Template wear, alignment accuracy, and throughput limitations historically prevented widespread adoption in high-volume semiconductor production. Engineers have spent years developing advanced materials and pressure control mechanisms to address these fundamental reliability concerns.

Recent iterations of the technique incorporate vacuum air-cushion systems that stabilize the imprinting process across large substrates. These innovations enable consistent pattern replication while minimizing mechanical stress on both the template and the substrate material. The approach supports sub-ten-nanometer feature generation through customized double-layer materials and proprietary chemical processes. Such advancements transform a previously theoretical concept into a viable manufacturing alternative for specific semiconductor categories.

Why does the shift to photonic chips matter for manufacturing?

Photonic integrated circuits represent a distinct category of semiconductor devices that manipulate light rather than electrical signals. These components serve critical functions in fiber-optic communications, data center interconnects, environmental sensing systems, and laser ranging technologies. The structural requirements for optical waveguides differ substantially from those required for traditional electronic transistors. Repeating nanoscale patterns dominate photonic designs, making them particularly compatible with stamping techniques rather than projection methods.

Traditional lithography struggles to optimize cost structures for repetitive optical architectures. Projection systems require complex mask sets and precise alignment stages that drive up production expenses unnecessarily. Nanoimprint technology naturally aligns with the architectural demands of photonics by replicating identical patterns across vast wafer areas simultaneously. This characteristic enables manufacturers to achieve economies of scale that remain elusive in conventional electronic chip fabrication.

The economic implications become particularly pronounced when examining large-scale deployment scenarios. Data centers and telecommunications infrastructure require millions of optical components annually to maintain network capacity and bandwidth requirements. Reducing per-unit manufacturing costs directly impacts the overall viability of next-generation communication networks. Lower production expenses accelerate the adoption of silicon photonics across commercial applications that previously relied on discrete optical modules.

Manufacturing compatibility also influences supply chain dynamics when examining substrate dimensions. The recent validation utilized eight-inch wafers rather than larger twelve-inch alternatives commonly associated with advanced logic processors. Eight-inch substrates remain standard in specialized semiconductor sectors including power electronics and compound materials. Demonstrating full wafer-scale production indicates that the process has transitioned beyond experimental laboratory conditions into formats compatible with existing industrial infrastructure.

How do export restrictions influence alternative chipmaking pathways?

International trade policies have fundamentally reshaped global semiconductor development strategies over recent years. Access to advanced lithography equipment remains heavily constrained under coordinated regulatory frameworks designed to limit technological transfer. Manufacturers operating within restricted regions must develop independent capabilities to sustain domestic production ecosystems and maintain competitive positioning in critical technology sectors. Companies are actively exploring alternative pathways that reduce dependency on foreign suppliers while preserving performance standards required by modern applications.

The pursuit of alternative fabrication methods represents a logical response to these geopolitical realities. Companies have explored diverse approaches ranging from advanced packaging architectures to novel circuit designs that minimize reliance on restricted equipment. Each pathway addresses specific bottlenecks within the manufacturing pipeline while attempting to preserve performance characteristics required by modern applications. Innovation accelerates when traditional supply chains face persistent disruption and operational uncertainty.

Photonic chip development exemplifies this strategic pivot toward independent capability building. Optical components do not require the same extreme precision standards as cutting-edge electronic processors. This distinction allows manufacturers to prioritize yield optimization and cost reduction over nanometer-scale scaling metrics that dominate logic chip development. The focus shifts from chasing smaller transistors to maximizing functional density through architectural efficiency and material science advancements.

Government initiatives and private investment continue to fuel research into unconventional manufacturing techniques. Funding flows toward equipment developers, material scientists, and process engineers who can demonstrate commercial viability outside established industry paradigms. Success in these alternative pathways could redefine competitive advantages across multiple technology sectors while reducing dependency on single-source equipment suppliers. The long-term impact extends beyond individual company strategies to encompass national technological sovereignty objectives.

What challenges remain before commercial viability is confirmed?

Technical validation and industrial deployment represent distinct milestones in semiconductor manufacturing development. Announcements regarding successful wafer production require careful examination of underlying performance metrics before drawing definitive conclusions about market readiness. Yield rates, defect densities, template lifespan, and throughput capacity determine whether a fabrication method can sustain continuous high-volume operations without compromising product reliability or economic feasibility.

Independent verification remains essential for establishing credibility within the global supply chain. Semiconductor manufacturers typically subject new processes to rigorous qualification protocols involving multiple testing phases and extended reliability assessments. Customer shipment data and production volume disclosures provide concrete evidence of commercial maturity rather than theoretical capability alone. The absence of these metrics leaves the actual industrial impact uncertain until further documentation emerges from independent observers.

Template durability presents another critical consideration for long-term manufacturing sustainability. Repeated mechanical contact between imprinting tools and substrates inevitably generates wear that compromises pattern fidelity over time. Advanced coating technologies and replacement schedules must be established to maintain consistent quality across extended production runs. Equipment maintenance costs directly influence the projected economic advantages claimed by developers and require thorough lifecycle analysis.

Integration with existing fabrication workflows requires substantial engineering coordination across multiple departments. Semiconductor facilities operate as highly synchronized ecosystems where each process step depends on precise timing and environmental control. Introducing a fundamentally different pattern transfer method demands comprehensive validation of material compatibility, chemical processing sequences, and quality assurance protocols. Successful deployment will depend on seamless integration rather than isolated technical achievements within controlled environments.

Conclusion

The semiconductor industry continues to evolve through incremental improvements and occasional paradigm shifts that redefine manufacturing boundaries. Alternative fabrication techniques offer promising avenues for addressing cost constraints and supply chain vulnerabilities while expanding the functional capabilities of integrated circuits. Photonic components demonstrate how architectural specialization can align with unconventional production methods to achieve practical results. Future developments will depend on sustained engineering refinement, transparent performance reporting, and gradual adoption within established industrial networks. The technology landscape remains dynamic as manufacturers balance innovation requirements with commercial realities.
