Reverse-Engineered PS2 Handheld Preserves Original Silicon Architecture

The legacy of the original PlayStation 2 remains deeply embedded in gaming history, yet its hardware architecture has long been confined to stationary consoles. A recent engineering initiative has successfully translated that complex architecture into a fully functional handheld device. By combining original silicon with modern power management and custom circuitry, developers have demonstrated that decades-old processing units can operate outside their intended form factors. This achievement highlights the ongoing intersection of retro hardware preservation and contemporary portable computing design.

A dedicated hardware enthusiast has successfully reverse-engineered the architecture of the original PlayStation 2 into a fully functional handheld console. The project integrates original processing chips with custom printed circuit boards, modern battery systems, and open-source software to deliver native gameplay without relying on emulation.

What is the PlayStation 2 Portable project and how did it originate?

The initiative, developed under the pseudonym tschicki, represents a four-year engineering endeavor that transitioned from private development to public documentation. Work commenced in 2022, with the final hardware configuration only shared with the broader technical community in recent months. The sustained development timeline reflects the immense complexity involved in translating stationary console architecture into a portable form factor. Rather than relying on modern emulation processors, the project deliberately preserves the original silicon architecture. This approach ensures that the hardware operates exactly as it did during its commercial release period. The design philosophy prioritizes historical accuracy over modern convenience, resulting in a device that functions as a direct hardware translation rather than a software abstraction.

Evolution of the Hardware Concept

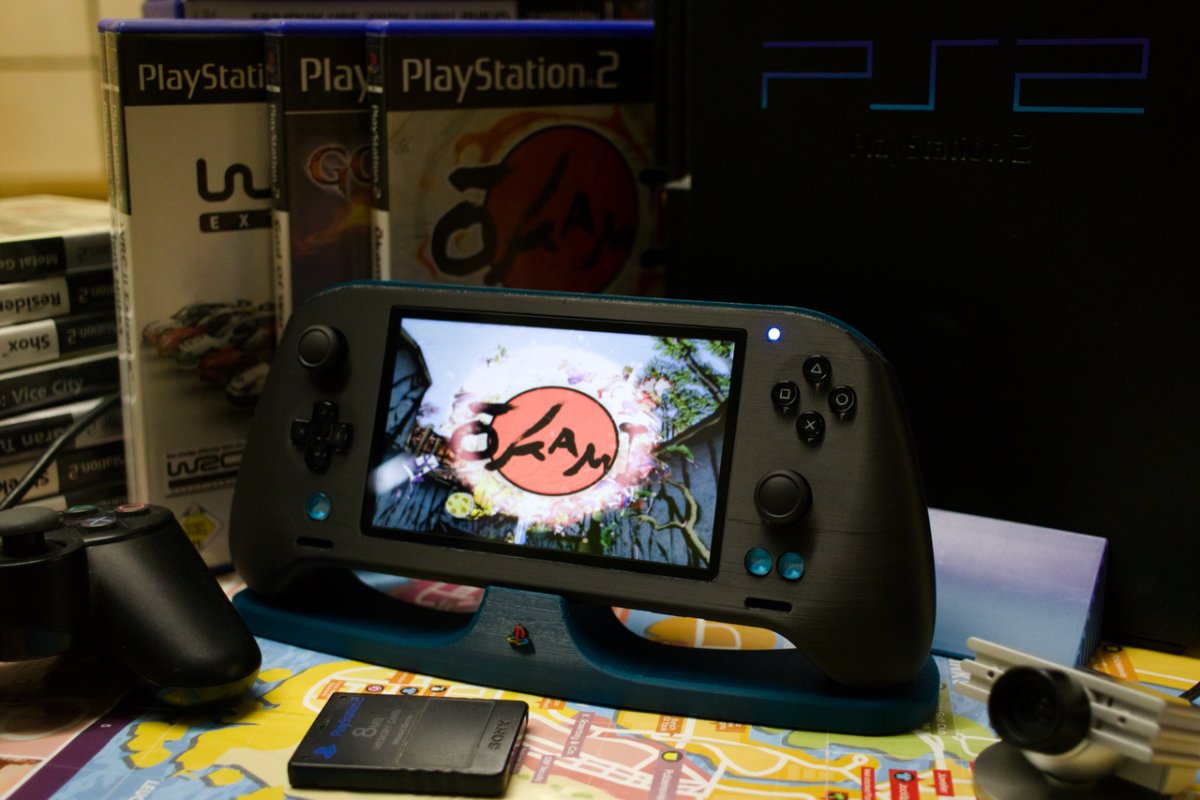

The physical chassis draws inspiration from contemporary handheld gaming computers, specifically adopting an ergonomic layout with extended grip sections. These grips accommodate dual lithium-ion battery cells with a combined capacity of 5000mAh, which provides approximately 4.5 hours of continuous operation. The exterior construction utilizes three-dimensional printed polymers, allowing for precise internal component placement while maintaining a lightweight structure. A distinct blue accent panel runs along the upper chassis, housing trigger mechanisms and a modern universal serial bus connection. This visual element provides structural reinforcement while maintaining a minimalist aesthetic that avoids unnecessary visual clutter.

Control Scheme and Ergonomic Integration

Input mechanisms were carefully selected to match the original controller specifications while utilizing modern manufacturing techniques. The device incorporates hall-effect analog sticks, which eliminate mechanical wear and provide consistent signal transmission over extended usage periods. Face buttons were sourced from the PlayStation Vita revision 2000, ensuring tactile feedback that closely mirrors the original DualShock controller layout. Ventilation channels are strategically positioned along the upper frame to facilitate passive airflow, while the rear panel features threaded mounting points and a dedicated intake grille. This dual-vent configuration ensures consistent thermal management without requiring external cooling accessories.

How does the custom motherboard architecture function?

At the core of the handheld lies a completely custom-printed circuit board that integrates six original integrated circuits extracted from SCPH-7900x or SCPH-9000x console motherboards. These components include the Emotion Engine processor, the Graphics Synthesizer rendering unit, dual random-access memory modules, the input-output processor, the SP2 audio chip, and the original boot read-only memory. Each chip was manually desoldered and repositioned onto the new board layout, requiring extensive circuit tracing and signal path verification. The reverse-engineering process mapped every existing connection before drafting a completely fresh routing diagram. This meticulous approach preserved original signal integrity while adapting the layout to fit within a significantly smaller physical footprint.

Signal Processing and Data Routing

The original processing units handle all primary computational tasks, including game logic execution and graphical rendering pipelines. Secondary functions such as temperature monitoring, input polling, audio mixing, and power regulation are delegated to separate RP2040 microcontrollers. These auxiliary processors communicate with the primary silicon through dedicated serial interfaces, ensuring that system resources remain efficiently allocated. The RP2040 units also translate controller inputs into native DualShock 2 protocols, complete with rumble feedback implementation. This hybrid architecture allows legacy processing units to operate alongside modern microcontrollers without requiring direct electrical compatibility.

Video Output and Display Integration

Video transmission presents a significant challenge when adapting high-definition console output to portable screens. The project utilizes a custom field-programmable gate array processor to extract direct digital signals from the Graphics Synthesizer. This method bypasses traditional analog-to-digital conversion stages, which historically degraded image quality during digital translation. The processed signal routes directly to a five-inch liquid crystal display with a native resolution of 480 by 800 pixels and a sixty hertz refresh rate. By maintaining a direct digital pathway, the system preserves the original color depth and timing characteristics that defined the console's visual output.

Why does reverse-engineering legacy silicon matter for hardware preservation?

The deliberate retention of original processing chips addresses a growing concern within the retro computing community regarding long-term hardware accessibility. As commercial manufacturing supply chains age, replacement components become increasingly scarce and expensive. By successfully integrating original silicon into modern circuitry, the project demonstrates that legacy processors can remain functional outside their original manufacturing ecosystems. This methodology provides a sustainable pathway for preserving hardware that would otherwise become obsolete due to physical degradation or component failure. Engineers can now reference the published schematics to understand how vintage signal pathways interact with contemporary power delivery systems. The project also validates the use of auxiliary microcontrollers to manage legacy interfaces that lack native modern compatibility.

Technical Implications for Retro Engineering

The success of this architecture establishes a practical framework for future hardware translation projects. Developers working on similar preservation initiatives can leverage these published methodologies to accelerate their own hardware adaptation timelines. This hybrid approach reduces the need for complex voltage translation circuits while maintaining signal accuracy. By removing proprietary barriers, the initiative encourages collaborative refinement and independent experimentation within the retro hardware community. The published documentation ensures that knowledge regarding signal routing and power management remains accessible to future engineers.

Community Impact and Knowledge Sharing

Open documentation allows independent engineers to verify each circuit modification and replicate the build process without relying on proprietary technical secrets. The published bill of materials and ten-part assembly guide provide a structured reference for advanced hardware technicians. This transparency ensures that the project remains accessible to individuals with specialized soldering expertise and firmware development experience. By releasing all technical specifications under open licenses, the developer enables independent researchers to modify, optimize, and adapt the design for alternative use cases, much like the approach seen with devices such as Flipper One. This collaborative model accelerates the collective understanding of legacy console architectures.

What are the practical limitations and accessibility challenges of this build?

Despite the technical achievements, the project presents significant barriers to casual adoption. The assembly process requires advanced surface-mount soldering capabilities, precise component alignment, and firmware customization experience. The documentation explicitly warns against attempting the build as a casual hobbyist project due to the high probability of permanent component damage during reconstruction. Additionally, the physical dimensions of the original integrated circuits dictate a minimum chassis size that limits further miniaturization efforts. The dual battery configuration provides adequate runtime but requires careful power distribution management to prevent voltage fluctuations during peak processing loads.

Power Management and Thermal Constraints

The custom cooling solution utilizes a fan extracted from a Nintendo Switch Lite, which operates reliably but introduces mechanical wear components into a typically solid-state design. Thermal dissipation remains a constant engineering challenge when compressing high-density processor layouts into portable enclosures. Continuous operation at maximum clock speeds generates substantial heat that requires consistent airflow to prevent processor throttling. The combination of legacy silicon and modern power delivery systems demands precise voltage regulation to ensure stable operation across varying load conditions.

Storage Architecture and Game Compatibility

The device utilizes two separate micro secure digital card slots to manage different storage requirements. One slot interfaces directly with the original memory card data lines, simulating an eight-megabyte storage module for boot files and save data. The second slot employs the open-source MX4SIO routing standard, which bypasses legacy memory controllers to access native storage protocols directly. This dual-storage approach allows players to maintain game libraries while preserving original save file compatibility. The system relies on custom loaders such as Open PS2 Loader or NHDDL to execute titles natively, alongside legacy PlayStation One software through DKWDRV implementation.

How does the open-source documentation shape the future of retro hardware modding?

The complete publication of three-dimensional printing files, printed circuit board schematics, field-programmable gate array code, and system firmware establishes a new standard for hardware preservation projects. By releasing all technical specifications under open licenses, the developer enables independent researchers to modify, optimize, and adapt the design for alternative use cases. This transparency accelerates the collective understanding of legacy console architectures and provides a reference framework for future translation efforts. The initiative demonstrates that direct hardware translation offers a viable alternative to software-based simulation for long-term archival purposes.

Comparison with Commercial Portable Solutions

While commercial handheld consoles previously attempted to deliver legacy gaming experiences, they fundamentally relied on modern processing units to simulate older architectures. The PlayStation Portable achieved widespread commercial success by utilizing dedicated graphics processors that approximated original behavior. Modern emulation technology has since advanced to the point where contemporary smartphones can process complex graphical pipelines with minimal latency. However, these commercial solutions cannot replicate the exact electrical behavior of vintage silicon, which remains a priority for hardware preservationists. Direct hardware translation ensures that original timing, signal routing, and processing characteristics remain intact.

Long-Term Preservation Strategy

The project demonstrates that preserving original processing components and adapting them to modern power and display standards allows legacy architectures to operate effectively outside their original environments. As physical media degrades and original console components become increasingly difficult to source, portable hardware translation provides a method for maintaining functional legacy systems. The published documentation ensures that knowledge regarding signal routing and power management remains accessible to future engineers. This approach prioritizes hardware authenticity over computational efficiency, acknowledging that preservation requires different engineering objectives than commercial product development.

The PlayStation 2 Portable project represents a meticulous engineering achievement that successfully bridges decades of hardware evolution. By preserving original processing components and adapting them to modern power and display standards, the initiative demonstrates that legacy architectures can operate effectively outside their original environments. The complete open-source documentation provides a valuable reference for hardware engineers, preservationists, and retro computing enthusiasts. While the build process remains inaccessible to casual hobbyists, the published methodologies establish a sustainable framework for future hardware translation projects. The initiative underscores the enduring relevance of vintage silicon when approached with rigorous technical discipline and systematic documentation.
