Apple Liquid Metal Hinge Validates 16 Years of Foldable Research

The development of a foldable iPhone has long occupied a unique space in hardware speculation, balancing consumer anticipation with the formidable engineering hurdles required to make the form factor viable. Recent reports suggest that Apple may finally be resolving one of the most persistent mechanical challenges by utilizing a specialized alloy known as Liquid Metal for the device’s primary hinge mechanism. This approach aligns with a research trajectory that stretches back more than sixteen years, indicating a deliberate and methodical approach to material science rather than a rushed adaptation of existing solutions.

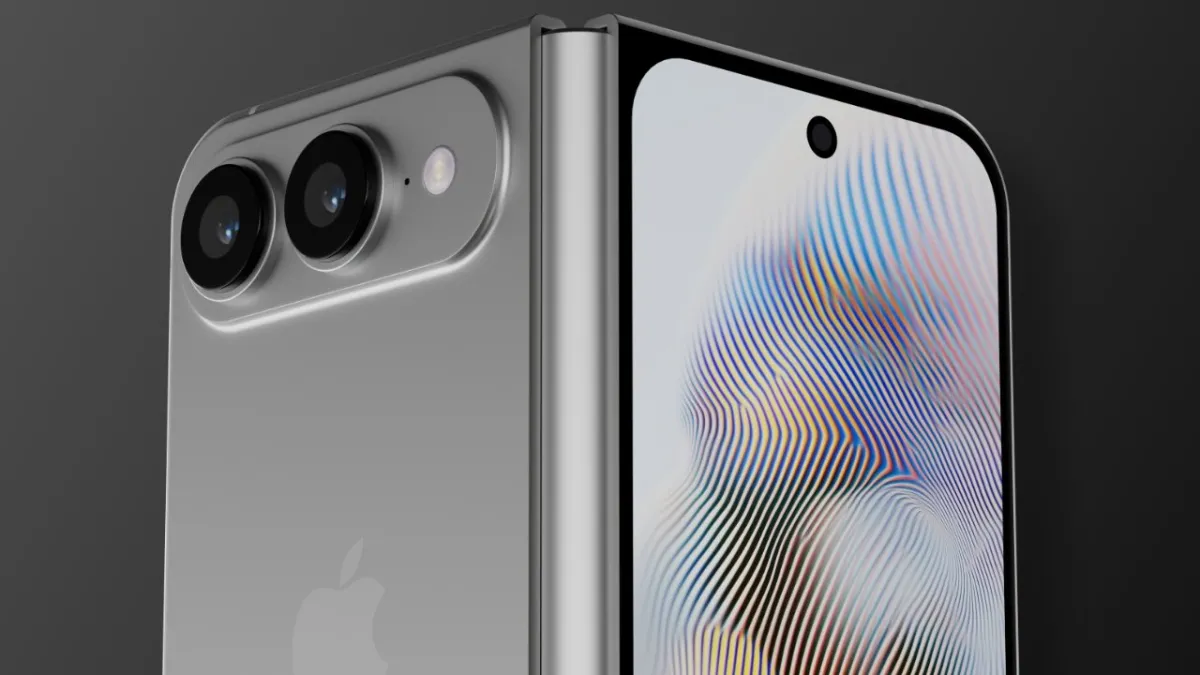

Apple’s upcoming foldable iPhone is reportedly utilizing Liquid Metal for its hinge mechanism, a technology the company has researched since 2010. Recent leaks confirm prototype testing, highlighting how a long-term exclusive partnership and specialized material properties address the mechanical demands of durable foldable displays.

What is Liquid Metal and why has Apple pursued it for over a decade?

Liquid Metal represents a distinct category of metallic glass alloys that deviate significantly from conventional crystalline metals. Developed initially at the California Institute of Technology, these amorphous alloys possess a disordered atomic structure that grants them exceptional mechanical properties. The material exhibits tensile strength that exceeds standard titanium by a substantial margin while maintaining remarkable elasticity. This unique combination allows the alloy to absorb significant physical stress and return to its original configuration without suffering permanent deformation or structural fatigue.

The pursuit of this material by Apple began with a formalized commercial agreement established in August 2010. The initial contract with Liquidmetal Technologies carried a minimum financial commitment of ten point nine million dollars, a figure that immediately resolved a portion of the supplier company’s outstanding debt. This early investment signaled a long-term strategic interest in amorphous metal alloys. Apple secured exclusive rights to utilize the material within consumer electronics, a restriction that fundamentally shaped the company’s subsequent research and development pathways.

How does the material address the core challenges of foldable displays?

Foldable smartphones require hinge mechanisms that can withstand thousands of flex cycles without compromising the structural integrity of the device or the display panel. Traditional metal alloys often suffer from work hardening, a process where repeated bending causes the material to become brittle and eventually fracture. Liquid Metal circumvents this limitation through its amorphous atomic structure, which lacks the grain boundaries that typically initiate cracks in crystalline metals. The material’s elastic recovery allows it to function as a highly durable mechanical spring, maintaining consistent tension and alignment throughout the device’s operational lifespan.

Manufacturing foldable hinges demands precision engineering that balances weight, thickness, and mechanical resilience. The density and strength profile of Liquid Metal enable engineers to design compact hinge assemblies that do not add excessive bulk to the device. This weight efficiency is particularly critical for handheld electronics, where user comfort directly influences adoption rates. The corrosion resistance of the alloy further reduces the need for additional protective coatings or complex sealing mechanisms, streamlining the production process. These technical advantages explain why the material has remained a focal point of Apple’s internal hardware research for nearly two decades.

The Historical Arc of Apple’s Exclusive Partnership

The commercial relationship between Apple and Liquidmetal Technologies evolved through distinct phases of collaboration and independent development. Following the initial exclusive agreement, Apple renewed the partnership in 2015, demonstrating sustained commitment to the technology despite the absence of immediate consumer products. During this period, the company filed multiple patents related to the manufacturing and application of amorphous metal alloys. One notable patent, secured jointly with the supplier, detailed a layer-by-layer manufacturing process designed to create complex three-dimensional components with high precision.

Despite the extensive research and patent portfolio, Apple has historically applied Liquid Metal to a limited range of products. The most visible application remains the SIM card ejection tool included with traditional iPhones, a small but functionally demanding component that benefits from the alloy’s durability and dimensional stability. The company also explored the material for sporting goods and other consumer electronics, though the exclusive rights for mobile devices kept the primary focus on internal hardware development. This long-term research trajectory reflects a corporate strategy that prioritizes foundational material science over immediate market trends.

What does the recent prototype testing indicate for the upcoming launch?

Recent industry analysis suggests that Apple may be advancing toward a commercial release of its foldable device. Reports indicate that a prototype featuring the Liquid Metal hinge has been distributed to global telecommunications operators for evaluation. This distribution typically signifies that the hardware has reached a mature stage in the manufacturing validation process. Operators require functional devices to assess network compatibility, thermal performance, and physical durability before committing to promotional support and retail distribution. The presence of a working prototype at this stage strongly implies that Apple is preparing for a late-year release window.

The timeline for a September launch aligns with Apple’s historical product release patterns for major hardware categories. Reaching this stage requires resolving numerous engineering challenges, including display folding mechanisms, software adaptation, and component miniaturization. The confirmation of a single hinge design in testing suggests that Apple has consolidated its research efforts around the Liquid Metal solution. Developing multiple hinge architectures simultaneously would introduce unnecessary complexity and delay production schedules. The focus on a unified mechanical system indicates confidence in the material’s ability to meet rigorous reliability standards.

How might this hinge design influence broader industry standards?

The adoption of Liquid Metal for a flagship foldable device could establish new benchmarks for mechanical durability in the smartphone sector. Industry analysts have noted that Apple’s hinge architecture might eventually serve as a reference design for other manufacturers. Establishing a new standard requires demonstrating superior longevity, smoother mechanical operation, and consistent performance under varied environmental conditions. If Apple successfully validates the material in a commercial product, competitors may face pressure to adopt similar alloy technologies or develop alternative solutions that match the established reliability metrics.

The broader implications extend beyond individual device performance. A successful implementation could accelerate the integration of amorphous metals into other consumer electronics categories. The manufacturing techniques refined for the hinge assembly may translate to other components requiring high precision and exceptional fatigue resistance. This shift could influence supply chain dynamics, as material suppliers and component manufacturers adapt to the increased demand for specialized alloys. The long-term impact on the industry will depend on how effectively Apple scales production while maintaining the material’s structural advantages.

What manufacturing hurdles must be overcome to scale this technology?

Transforming a laboratory alloy into a mass-produced component requires overcoming significant fabrication challenges. Liquid Metal exhibits a narrow supercooled liquid region, which demands precise thermal control during molding processes. Manufacturers must maintain exact temperature ranges to ensure the material flows correctly into complex hinge geometries without crystallizing prematurely. This precision requirement necessitates specialized injection molding equipment that differs substantially from standard smartphone component production lines. Establishing these manufacturing capabilities involves substantial capital investment and extensive process optimization.

Quality control procedures must also evolve to accommodate the unique properties of amorphous metals. Standard metallurgical testing methods often fail to detect microstructural inconsistencies specific to metallic glasses. Apple has likely developed proprietary inspection protocols to verify the homogeneity and mechanical integrity of each hinge component. These rigorous validation steps ensure that every unit meets the demanding performance expectations required for a flagship device. The complexity of these manufacturing processes underscores why the technology has remained in development for over sixteen years.

How does the current leak landscape affect consumer expectations?

The recent confirmation regarding the hinge mechanism originates from a leaker with a mixed history of accurate and inaccurate reports. Digital Chat Station previously suggested that Apple’s hinge solution might eventually become an industry standard, a claim that aligns with the long-term strategic vision implied by the material choice. While the immediate reliability of individual leaks requires careful verification, the underlying technical narrative remains consistent with Apple’s documented research trajectory. Industry observers should evaluate these reports within the broader context of the company’s established development cycles and material science investments.

Consumer anticipation for a foldable iPhone continues to grow alongside the steady progression of hardware prototypes. The confirmation of a specialized hinge design suggests that Apple is prioritizing mechanical reliability over rapid feature iteration. This approach contrasts with competitors who have adopted more conventional hinge mechanisms to accelerate time-to-market. The deliberate pace of Apple’s development process indicates a commitment to resolving durability concerns before commercial launch. Market participants will likely monitor subsequent testing phases to gauge the final product’s readiness for widespread distribution.

Why has the development timeline extended across multiple decades?

The extended development timeline reflects the inherent complexity of adapting experimental materials to consumer electronics. Early research into amorphous alloys focused primarily on industrial applications and specialized sporting equipment. Translating these findings to mobile hardware required overcoming significant scaling challenges. Engineers had to redesign component geometries to accommodate the specific flow characteristics of the alloy during manufacturing. This iterative refinement process naturally spans multiple product cycles, as each generation of prototypes informs the next phase of engineering.

Regulatory and supply chain considerations also contribute to the prolonged development schedule. Sourcing high-purity raw materials for metallic glass requires a stable and verified supply network. Apple has historically maintained strict vendor qualification standards to ensure consistent material quality across all product lines. The exclusive partnership established in 2010 provided a foundation for this supply chain stability. Maintaining these relationships while scaling production for a new device category demands careful coordination between research teams and manufacturing partners.

Conclusion

The integration of Liquid Metal into Apple’s foldable hardware represents the culmination of a prolonged research initiative focused on material innovation. The company’s historical approach to hardware development consistently emphasizes foundational engineering over rapid market entry. By prioritizing a specialized alloy with proven mechanical advantages, Apple addresses the most persistent limitations of foldable displays. The transition from experimental research to commercial validation marks a significant milestone in the evolution of mobile computing form factors. The coming months will reveal how effectively this long-term investment translates into a reliable consumer product.
