Visualizing Sound Waves Through Acoustic Tomography

Visualizing sound has long remained a theoretical exercise for physicists and audio engineers. Translating invisible pressure waves into tangible data requires sophisticated instrumentation and precise mathematical modeling. A recent engineering project demonstrates how accessible technology can bridge that gap, offering a clear window into how audio behaves within enclosed spaces. This approach transforms abstract acoustic phenomena into measurable spatial data.

A custom-built acoustic tomography rig reveals how spatial audio propagates through enclosed rooms, highlighting the critical role of environmental acoustics and demonstrating why digital calibration matters more than speaker placement alone. This accessible engineering project transforms abstract wave behavior into measurable spatial data for home theater optimization.

What is Computer Acoustic Tomography and How Does It Work?

Computer Acoustic Tomography (CAT) represents a specialized branch of signal processing that maps sound propagation through three-dimensional space. The technique relies on measuring time delays and amplitude variations across multiple sensor arrays to reconstruct wavefronts. Engineers originally developed these methods for geological surveys and medical imaging before adapting them for acoustic research. The core principle involves capturing how sound waves interact with physical boundaries and measuring the resulting interference patterns.

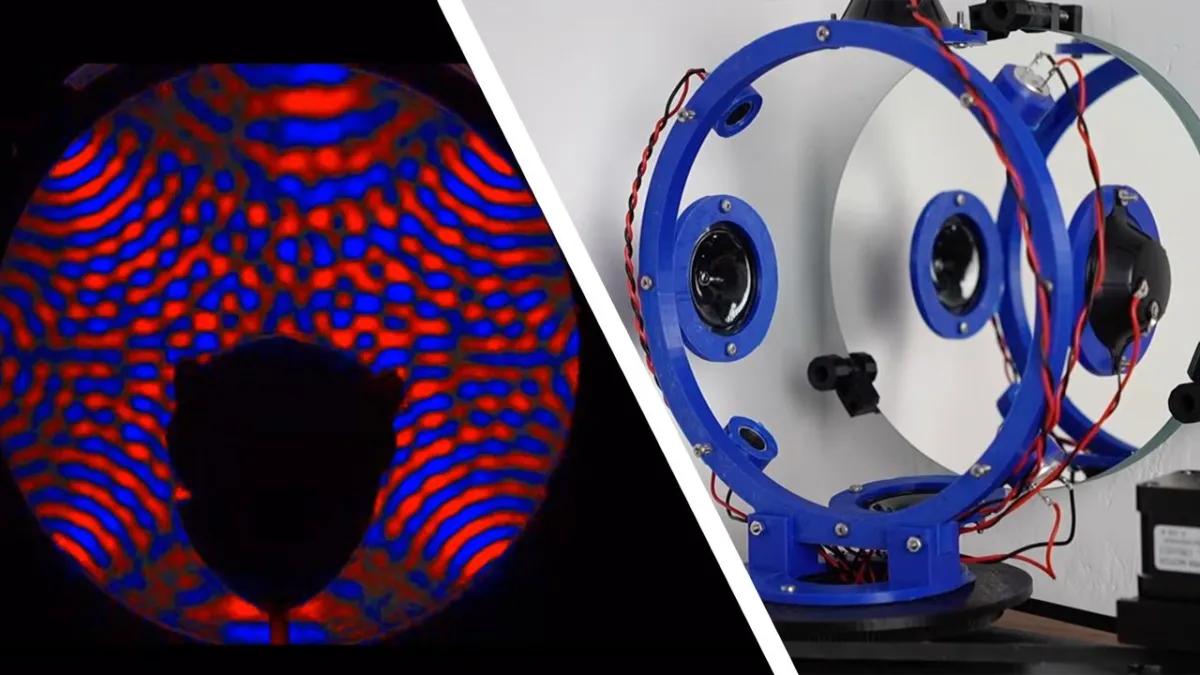

Building a functional system requires careful hardware selection and precise synchronization. The creator of the recent demonstration constructed a custom multi-channel amplifier to drive a circular array of speakers. This hardware configuration ensures that audio signals remain phase-coherent across the entire testing environment. The amplifier design eliminates timing discrepancies that would otherwise distort the spatial reconstruction. Without synchronized output, the tomographic algorithm would generate inaccurate spatial maps.

The testing environment utilizes a scaled physical proxy to represent human hearing. A miniature guinea pig figure serves as the acoustic receiver because its dimensions approximate a four-to-one scale of an average human head. This scaling factor allows researchers to observe how wavelengths interact with anatomical features without requiring full-size equipment. The proxy captures directional cues that the human auditory system uses to locate sound sources.

Data collection occurs through systematic sweeps across the frequency spectrum. Each speaker emits calibrated tones while the central receiver records arrival times and intensity shifts. The resulting dataset feeds into reconstruction software that calculates wavefront trajectories. The software applies mathematical inversion techniques to transform raw measurements into visual representations. This process converts abstract acoustic data into comprehensible spatial maps.

Why Does Room Acoustics Matter for Spatial Audio?

Enclosed spaces fundamentally alter how sound travels from source to listener. Hard surfaces reflect acoustic energy while soft materials absorb it. The balance between reflection and absorption determines the clarity and spatial accuracy of any audio reproduction system. Rooms with excessive soft furnishings tend to dampen high frequencies and reduce overall sound pressure levels. Conversely, sparse rooms create pronounced reverberation that blurs directional cues.

Wall geometry plays a decisive role in acoustic behavior. Parallel surfaces generate standing waves that amplify specific frequencies while canceling others. These resonant peaks and troughs create uneven frequency response curves that distort the original signal. Bass management becomes particularly challenging in rectangular rooms where modal resonances cluster at predictable intervals. Proper room treatment requires strategic placement of absorption panels and diffusers to break up coherent reflections.

Ceiling height introduces additional complexity to spatial audio reproduction. Sound waves traveling upward reflect downward with predictable time delays that interact with direct sound. These delayed reflections create comb filtering effects that smear transient details. The human brain compensates for these artifacts through neural processing, but electronic systems cannot replicate this biological adaptation. Audio engineers must account for vertical reflections when designing speaker arrays.

The interaction between direct sound and room reflections defines the perceived soundstage. A well-treated room allows direct sound to dominate while controlling early reflections. This approach preserves directional accuracy and maintains tonal balance. Poor acoustic treatment forces listeners to rely on indirect sound paths that degrade spatial imaging. Understanding these dynamics helps explain why identical audio equipment performs differently across various rooms.

How Do Soundbars Differ from Traditional Surround Systems?

Traditional surround sound configurations rely on discrete speaker placement to create distinct audio channels. Each speaker occupies a fixed position relative to the listener, establishing precise acoustic boundaries. This physical separation allows the brain to localize sound sources with high accuracy. The system depends on direct sound paths rather than reflected energy to convey spatial information.

Soundbar technology approaches spatial audio through a fundamentally different methodology. These compact units contain multiple drivers arranged in a linear configuration to simulate a wider soundstage. The engineering challenge involves creating virtual speaker positions using phase manipulation and time delay algorithms. The system calculates precise timing offsets to trick the auditory system into perceiving sound coming from off-axis locations.

Virtual surround processing relies heavily on room interaction to function correctly. The system beams audio toward walls and ceilings, expecting reflections to return with appropriate timing and intensity. This approach works best in rooms with reflective surfaces that preserve acoustic energy. Environments with heavy carpeting and thick drapes absorb the necessary reflections, causing the virtual soundstage to collapse. The acoustic environment becomes an active component of the reproduction system.

Room calibration algorithms attempt to compensate for environmental deficiencies. These systems measure the room response and apply equalization filters to flatten the frequency curve. Advanced implementations also adjust timing delays to align reflected sound with direct audio. The calibration process transforms an irregular acoustic space into a predictable listening environment. Without proper calibration, virtual surround processing struggles to maintain consistent spatial imaging.

Can DIY Acoustic Mapping Improve Home Theater Setup?

Accessible acoustic measurement tools have transformed how enthusiasts approach home audio installation. Previously, professional measurement required expensive equipment and specialized expertise. Modern open-source projects democratize this process by providing downloadable schematics and reconstruction code. Hobbyists can now construct functional testing rigs using standard three-dimensional printing components and off-the-shelf electronics.

The engineering behind these accessible systems focuses on reproducibility and precision. The circular speaker array requires exact spacing to maintain accurate spatial resolution. The custom amplifier design ensures consistent output across all channels without introducing phase distortion. The reconstruction software applies established tomographic algorithms to process the captured data. This combination of hardware and software creates a reliable measurement platform.

Practical application of acoustic maps involves identifying problematic reflection points and resonant frequencies. Listeners can use the visual data to position absorption panels at first reflection points. The maps also reveal how furniture placement affects sound propagation through the listening area. Adjusting seating positions based on acoustic data often yields better results than relying on visual symmetry alone.

The broader implication extends beyond home theater optimization. Understanding how sound behaves in enclosed spaces informs architectural design, recording studio construction, and public venue acoustics. The same principles that govern a living room apply to concert halls and broadcast studios. Acoustic mapping provides a universal framework for analyzing wave behavior across different scales.

What Role Does Computational Audio Play in Modern Systems?

Computational audio processing now extends beyond hardware calibration, as seen in recent developments like iOS 27’s Siri AI, which leverages machine learning to adapt system behavior to user environments. These algorithms analyze acoustic data in real time to optimize output parameters. The integration of artificial intelligence allows devices to adjust frequency response dynamically based on room characteristics. This shift reduces reliance on manual tuning procedures.

Machine learning models trained on extensive acoustic datasets can predict optimal speaker placement with remarkable accuracy. These systems evaluate thousands of potential configurations to identify the most effective arrangement for a given space. The predictive capability accelerates the setup process while improving final audio quality. Enthusiasts benefit from automated recommendations that account for architectural constraints.

The convergence of physical measurement and digital processing creates a comprehensive approach to acoustic optimization. Hardware provides the raw data while software applies sophisticated correction algorithms. This hybrid methodology ensures that theoretical acoustics align with practical listening conditions. Future audio systems will likely rely even more heavily on computational analysis to bridge the gap between equipment and environment.

Conclusion

The intersection of acoustic science and accessible engineering continues to produce valuable insights for audio enthusiasts. Visualizing sound propagation reveals the complex interactions between equipment, architecture, and human perception. The recent demonstration highlights how environmental factors often outweigh hardware specifications in determining audio quality. Proper room treatment and calibrated processing remain essential for accurate spatial reproduction.

Home audio systems will increasingly rely on computational methods to compensate for physical limitations. As processing power grows and measurement tools become more sophisticated, the gap between theoretical acoustics and practical listening environments will continue to narrow. The focus shifts from hardware acquisition to environmental optimization and algorithmic refinement.

Future developments in acoustic mapping will likely integrate advanced machine learning to predict optimal speaker placement and treatment strategies. The foundational principles established by early tomographic research will guide these advancements. Understanding sound behavior remains a critical step toward achieving faithful audio reproduction in any environment.
