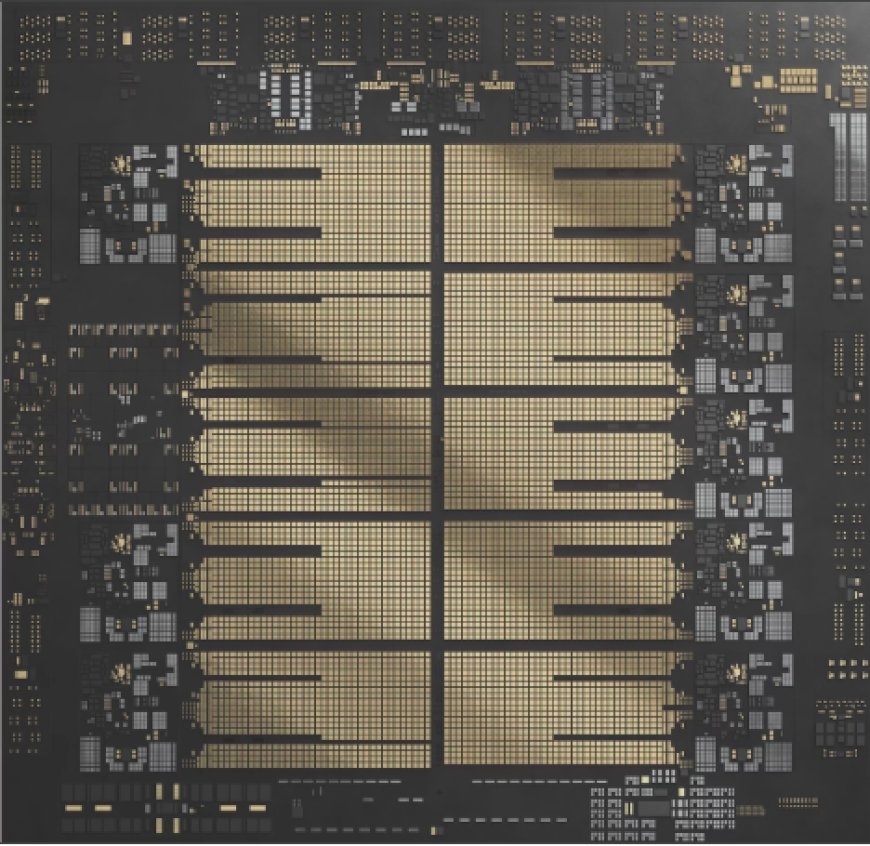

Architecture Details for IBM Telum II Processor and Spyre Accelerator

The enterprise computing landscape is undergoing a fundamental transformation as artificial intelligence moves from experimental phases into critical production environments. Mainframe systems, historically renowned for transactional reliability and data security, now face the dual challenge of maintaining legacy performance while integrating advanced machine learning capabilities. IBM has addressed this convergence by revealing detailed architectural specifications for its next-generation processing infrastructure at Hot Chips 2024. The announcement outlines a coordinated approach to scaling computational power without sacrificing energy efficiency or operational stability across global data centers.

What is the architectural shift behind IBM Telum II and Spyre?

The announcement at Hot Chips 2024 marks a deliberate pivot in how legacy infrastructure adapts to modern computational demands. Historically, mainframe architectures prioritized deterministic transaction processing over probabilistic machine learning tasks. This new design bridges that gap by integrating dedicated accelerator cores directly into the central processing unit while maintaining coherent data pathways. The architectural foundation relies on combining traditional neural networks with encoder large language models through an ensemble methodology. This approach allows enterprise systems to leverage distinct computational strengths rather than relying on a single monolithic model. By distributing workloads across specialized hardware, IBM aims to deliver more accurate predictions and robust decision-making capabilities for complex business environments.

The integration of these components represents a significant departure from previous generation designs. Previous mainframe iterations required external hardware solutions to handle advanced inference tasks, which often created bottlenecks in data flow and increased latency. The new architecture embeds the accelerator core directly within the processor die, ensuring low-latency communication between computational units. This coherently attached design simplifies system operations while enhancing the performance of principal components. Enterprises transitioning from proof-of-concept artificial intelligence projects to production environments now have a hardware foundation that supports appropriately sized foundation models. The coordinated architecture enables hybrid-by-design approaches for workloads that demand both high throughput and strict regulatory compliance.

Why does power efficiency matter for mainframe AI workloads?

Morgan Stanley research indicates that the power demands for generative artificial intelligence are expected to increase by seventy-five percent annually over the next several years. Projections suggest that global artificial intelligence energy consumption could match the entire national output of Spain by twenty-twenty-six. This rapid escalation has driven enterprise clients to prioritize architectural decisions that support sustainable scaling without overwhelming existing data center infrastructure. Mainframe systems traditionally operate in highly constrained physical environments where thermal management and power distribution are critical operational factors. The new hardware specifications directly address these constraints through advanced manufacturing processes and targeted power limits.

Samsung Foundry will manufacture the Telum II processor using its high-performance, power-efficient five-nanometer process node. This fabrication technology allows for greater transistor density while reducing leakage current and overall energy consumption per operation. The IBM Spyre Accelerator complements this efficiency by consuming no more than seventy-five watts per card when attached via a standard PCIe adapter. This strict power ceiling ensures that the accelerator can be deployed across existing rack configurations without requiring extensive cooling upgrades or electrical infrastructure modifications. The combination of advanced node fabrication and targeted wattage limits creates a scalable architecture that supports ensemble methods of artificial intelligence modeling while maintaining operational sustainability.

Data center operators face mounting pressure to optimize energy consumption while meeting growing computational requirements. The seventy-five watt limit per accelerator card directly addresses this operational reality by preventing thermal throttling in densely packed server racks. Engineers designing next-generation infrastructure must account for both peak load scenarios and sustained baseline operations when planning cooling systems. The targeted power specifications allow facilities to deploy additional compute units without triggering capacity limits on existing electrical feeds. This pragmatic approach reduces the financial burden associated with facility upgrades while maintaining compliance with corporate sustainability mandates.

The Technical Specifications of the Telum II Processor

The processor design incorporates eight high-performance cores operating at five-point-five gigahertz to handle complex transactional workloads and computational tasks simultaneously. Each core features thirty-six megabytes of level-two cache, contributing to a forty percent increase in on-chip cache capacity that totals three hundred sixty megabytes per chip. This expanded memory hierarchy reduces data retrieval latency and improves overall throughput for applications requiring rapid access to frequently used information. The virtual level-four cache will offer two-point-eight-eight gigabytes per processor drawer, representing another forty percent increase over the previous generation. These caching improvements directly support large-scale artificial intelligence workloads that require continuous model parameter access during inference cycles.

An integrated I/O Acceleration Unit Data Processing Unit is engineered to improve data handling with a fifty percent increase in input-output density. This component simplifies system operations by accelerating complex protocols for networking and storage on the mainframe, which historically required dedicated peripheral controllers. The unified architecture enhances IBM Z overall efficiency and scalability for data-intensive applications that process massive transaction volumes daily. The integrated artificial intelligence accelerator enables low-latency, high-throughput in-transaction inference, delivering a fourfold increase in compute capacity per chip compared to the last generation. These specifications position the processor as a viable foundation for enterprise compute solutions supporting large language models while maintaining the reliability expected from legacy mainframe platforms.

Cache architecture plays a critical role in determining how efficiently processors handle rapid data transitions during complex inference cycles. The expanded level-two and virtual level-four caches reduce the frequency of memory fetches, which traditionally consumes significant processing time and energy. By keeping frequently accessed parameters closer to the computational cores, the system minimizes latency spikes that could disrupt real-time transaction processing. This hierarchical design ensures that artificial intelligence workloads operate smoothly alongside traditional database queries without competing for bandwidth. The resulting efficiency gains translate directly into faster response times and improved resource utilization across enterprise applications.

How does ensemble AI transform enterprise applications?

The coordinated hardware architecture enables enterprises to implement ensemble methods that combine multiple machine learning or deep learning artificial intelligence models with encoder large language models. This methodology leverages the strengths of each model architecture to deliver more accurate and robust results compared to individual models operating in isolation. Traditional mainframe systems excel at structured data processing and deterministic rule execution, while modern neural networks provide pattern recognition and contextual understanding. By integrating these capabilities within a single coherent system, organizations can build applications that adapt to dynamic business requirements without sacrificing transactional integrity.

Enhanced fraud detection in home insurance claims represents one practical application of this ensemble approach. The system can combine traditional neural networks with large language models to analyze policy documents, claim narratives, and historical payment patterns simultaneously. Advanced detection of suspicious financial activities supports compliance with regulatory requirements while mitigating the risk of economic crimes across global banking networks. AI assistants integrated into these platforms accelerate application lifecycles by transferring institutional knowledge and providing automated code explanations and transformations. These capabilities unlock business value and create new competitive advantages for enterprises navigating increasingly complex operational environments.

The Strategic Implications of the Spyre Accelerator Design

The IBM Spyre Accelerator serves as a purpose-built enterprise-grade component designed to handle complex artificial intelligence models and generative use cases that exceed processor capacity. Each card features up to one terabyte of memory distributed across eight units in a regular input-output drawer, supporting model workloads across the mainframe while maintaining strict power limits. Every chip contains thirty-two compute cores capable of processing int4, int8, fp8, and fp16 datatypes simultaneously. This multi-format support enables both low-latency inference for real-time applications and high-throughput processing for batch training operations. The flexibility in data precision allows engineers to optimize model performance based on specific accuracy requirements and computational constraints.

The accelerator attaches via a seventy-five-watt PCIe adapter, providing scalability that fits diverse client needs without requiring complete system redesigns. This modular deployment strategy aligns with the industry shift toward hybrid-by-design approaches for artificial intelligence workloads. Organizations can incrementally expand their computational capacity as model complexity grows, avoiding the capital expenditure associated with wholesale infrastructure replacement. The preview release at Hot Chips 2024 demonstrates the viability of this add-on option for enterprise environments that demand secure, scalable, and power-efficient computing solutions.

Conclusion

The upcoming platform rollout represents a strategic response to escalating computational demands within traditional enterprise sectors. Mainframe systems have historically maintained their relevance through continuous architectural evolution rather than complete replacement cycles. The integration of dedicated accelerator cores and advanced fabrication processes ensures that legacy platforms can support modern artificial intelligence paradigms without compromising operational stability. As generative projects transition from experimental phases into critical production environments, the industry requires infrastructure that balances performance with sustainability.

The coordinated hardware specifications outlined for twenty-twenty-five provide a clear pathway for enterprises to leverage large language models and ensemble learning methodologies while maintaining strict regulatory compliance and energy efficiency standards. This architectural evolution underscores IBM Z and LinuxONE platforms as viable foundations for next-generation enterprise computing. Organizations adopting these systems will gain access to unified computational resources that bridge historical transactional reliability with contemporary machine learning requirements.

Industry analysts anticipate that the twenty-twenty-five release will establish new benchmarks for mainframe adaptability in the artificial intelligence era. Competitors in the server hardware market must now address similar challenges regarding power efficiency and architectural integration when developing next-generation processors. The coordinated approach demonstrated by IBM highlights the importance of aligning silicon fabrication with software ecosystem requirements. Enterprises evaluating infrastructure upgrades will find that this unified architecture reduces integration complexity while delivering measurable performance improvements across diverse workload categories.
