Intel Diamond Rapids Xeon Drops Hyperthreading for 192 Cores

Intel’s latest announcement regarding the upcoming Diamond Rapids Xeon processor marks a decisive pivot in server silicon design. The chipmaker has confirmed a substantial core count increase while simultaneously retiring a decades-old threading technology. This strategic departure signals a fundamental reevaluation of how high-performance computing workloads will be managed in modern data centers. The industry must now adapt to a new paradigm where raw core density takes precedence over traditional parallel execution methods.

Intel has officially confirmed that its upcoming Diamond Rapids Xeon processor will feature one hundred ninety-two cores while permanently abandoning simultaneous multithreading for this specific generation. The new architecture utilizes advanced chiplet packaging and expanded memory bandwidth to target high-performance computing workloads, fundamentally altering licensing models for cloud providers and enterprise infrastructure managers worldwide who rely on predictable performance metrics.

What is the architectural shift behind Diamond Rapids?

The upcoming processor represents a significant departure from previous generation designs, primarily through its core count and underlying manufacturing process. Intel has confirmed that the silicon will be fabricated using a refined version of its advanced node technology, which aims to deliver improved power efficiency and higher clock speeds. This manufacturing approach allows the company to pack a substantially larger number of execution units onto a single package without exceeding traditional thermal design limits. The transition to this specific process node reflects a broader industry trend toward maximizing transistor density while managing heat dissipation challenges in dense server environments.

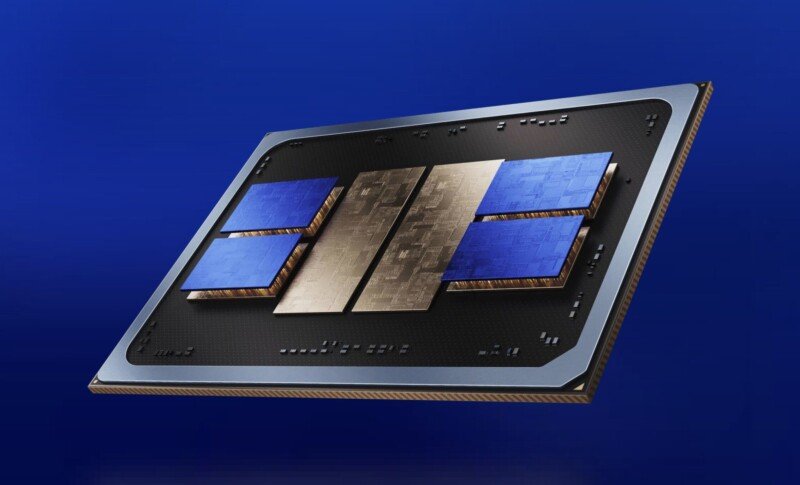

At the heart of this new design lies a sophisticated chiplet architecture that diverges from monolithic layouts. The processor will utilize advanced packaging technology to arrange four vertically stacked compute assemblies. Each assembly will contain forty-eight independent cores, resulting in the total one hundred ninety-two core configuration. This modular approach enables manufacturers to mix and match different silicon components during the assembly phase, which significantly reduces production costs and improves yield rates. The strategy mirrors successful implementations seen in other high-performance computing platforms, demonstrating how distributed architectures can outperform traditional single-die designs.

The integration of the last level cache onto a separate base die further illustrates this architectural evolution. By relocating the cache memory away from the compute tiles, designers free up valuable silicon real estate for additional execution pipelines. This spatial optimization allows each compute block to operate with greater independence while maintaining fast access to frequently used data. The layout bears a striking resemblance to recent designs from other semiconductor manufacturers, highlighting a convergent industry standard for next-generation server processors.

Memory controller placement remains a critical design consideration for this generation. Industry analysts suggest that the controller will likely reside on the input output dies rather than the base die. This configuration would reduce the number of non-uniform memory access nodes, thereby simplifying memory routing and improving latency characteristics. Moving the controller to the peripheral dies also aligns with established practices that prioritize bandwidth distribution across multiple physical channels. The exact implementation details will likely be clarified during upcoming technical presentations.

Why does the removal of simultaneous multithreading matter?

The decision to eliminate simultaneous multithreading represents a fundamental shift in how Intel approaches parallel execution. The technology originally debuted in the early two thousand two era to maximize execution unit utilization by allowing two threads to share idle resources during a single clock cycle. While this approach never doubled raw throughput, it consistently delivered double-digit performance gains for specific workloads that relied heavily on context switching and instruction pipelining. Retiring the feature marks the end of an era that defined server processor marketing for over two decades.

Consumer product lines have already undergone a gradual transition away from this threading model, and the server division is now following suit. The primary rationale involves the increasing complexity of modern software stacks and the diminishing returns of sharing execution resources. As core counts continue to climb, the overhead associated with managing multiple threads per core begins to outweigh the benefits. Engineers have determined that dedicating full execution pathways to individual threads yields more predictable performance characteristics for demanding computational tasks.

This architectural choice carries substantial implications for software optimization and workload scheduling. Applications that previously relied on thread-level parallelism will need to adapt to core-level parallelism models. Developers must redesign their concurrency strategies to fully utilize the expanded core count rather than depending on virtual thread doubling. This shift encourages a more granular approach to parallel programming, where explicit thread management becomes essential for achieving optimal efficiency. The industry will likely see a surge in updated libraries and frameworks designed for this new reality.

Cloud service providers and enterprise infrastructure managers will face immediate licensing and capacity planning challenges. Traditional hypervisor licensing models often calculate costs based on thread counts rather than physical cores. Customers who previously purchased instances with doubled thread counts will now receive half the virtual capacity for the same price point. This pricing discrepancy forces providers to restructure their billing tiers and adjust their resource allocation algorithms. Some vendors have already implemented core-pair pricing models for similar architectures, which may serve as a template for future deployments.

How will packaging and memory configurations evolve?

Memory bandwidth represents a critical performance vector for high-performance computing workloads, and the new design addresses this requirement aggressively. The processor will feature sixteen independent channels dedicated to double data rate five memory modules. This expanded memory interface allows the silicon to sustain massive data throughput rates that are essential for scientific simulations, large-scale database operations, and complex analytical workloads. The architectural decision prioritizes raw bandwidth over latency optimization, reflecting the demands of modern data-intensive applications.

While official speed specifications remain undisclosed, industry projections suggest support for extremely high transfer rates. Previous generations have already demonstrated capabilities exceeding eight thousand megatransfers per second on standard registered dual in-line memory modules. Advanced memory variants could potentially push these figures even higher, approaching rates that match leading competitor offerings. The resulting bandwidth per socket will likely exceed one point two terabytes per second, providing a robust foundation for memory-bound computational tasks that traditionally struggle with data delivery bottlenecks.

The packaging technology employed for this generation leverages advanced three-dimensional stacking techniques to maximize density. By vertically arranging compute assemblies, engineers can significantly reduce the physical footprint while maintaining electrical integrity across high-speed interconnects. This approach allows for shorter signal paths between the compute tiles and the memory controllers, which directly improves latency characteristics. The manufacturing process also enables greater flexibility in component selection, allowing for rapid iteration without requiring complete redesigns of the underlying platform.

Competitive dynamics in the server processor market continue to intensify as rival manufacturers accelerate their own product roadmaps. Competing offerings have already announced configurations that exceed the core count of this upcoming chip, and some may reach the market significantly earlier. This timeline discrepancy forces Intel to emphasize architectural efficiency and specialized workload optimization rather than relying solely on raw core density. The industry will closely monitor how these competing architectures perform in real-world deployment scenarios to determine which design philosophy delivers the most sustainable long-term value.

What are the commercial implications for cloud providers and enterprise buyers?

Market positioning for this processor clearly targets specialized high-performance computing environments rather than general-purpose enterprise infrastructure. Intel has explicitly stated that the silicon will be optimized for high-demand infrastructure as a service workloads and high-performance thread applications. This strategic focus means the chip will not see widespread deployment in traditional virtualization clusters or storage servers that rely on balanced core-to-thread ratios. Instead, it will cater to organizations running computationally intensive applications that benefit from dense core counts and massive memory bandwidth.

Cloud providers will need to adapt their infrastructure strategies to accommodate these specialized requirements. The shift toward dedicated high-performance instances will likely drive demand for more granular resource allocation models. Providers may begin offering specialized hardware tiers that emphasize raw computational density over virtualization flexibility. This evolution aligns with broader industry trends where specialized silicon replaces general-purpose processors for specific workload categories. The growing investment in regional data center infrastructure further underscores the need for highly optimized hardware that can deliver consistent performance at scale, as seen with recent major commitments to build gigawatt-scale facilities.

Power consumption and thermal management will remain critical considerations for data center operators. While official power specifications have not been released, the combination of high core counts and advanced memory interfaces typically results in substantial energy requirements. Cooling infrastructure must be carefully designed to handle the thermal output of densely packed server racks. Industry observers will be watching closely for official power delivery specifications and thermal design power ratings to determine how easily these processors can be integrated into existing facility designs without requiring extensive electrical upgrades. Recent regulatory discussions surrounding power consumption highlight the growing scrutiny on energy efficiency in modern computing environments.

Technical specifications and performance benchmarks will likely be disclosed during upcoming industry conferences. Intel has scheduled a detailed presentation for the autumn technical forum, which will provide engineers and analysts with comprehensive architectural insights. These presentations typically include instruction per clock measurements, power efficiency data, and real-world workload benchmarks. The industry will use this information to finalize procurement strategies and adjust infrastructure deployment timelines accordingly. The coming months will reveal whether the architectural choices deliver the promised performance advantages in production environments.

Looking Ahead to the Next Generation

The retirement of simultaneous multithreading marks a definitive turning point in server processor development. By prioritizing dedicated execution pathways and expanded core counts, Intel is signaling a clear direction for future computing architectures. The upcoming generation of processors will require software ecosystems to adapt to core-level parallelism rather than relying on virtual thread doubling. This transition will drive innovation in compiler optimization, operating system scheduling, and application design across the entire technology sector.

Manufacturers are already preparing for the subsequent generation, which will reintroduce the threading technology while building upon the foundational changes established in the current design. This iterative approach allows engineers to validate architectural assumptions while gradually reintroducing complex features. The industry will continue to monitor how these competing design philosophies evolve as computational demands grow increasingly complex. The next few years will determine which architectural paradigms ultimately define the future of high-performance computing infrastructure.
