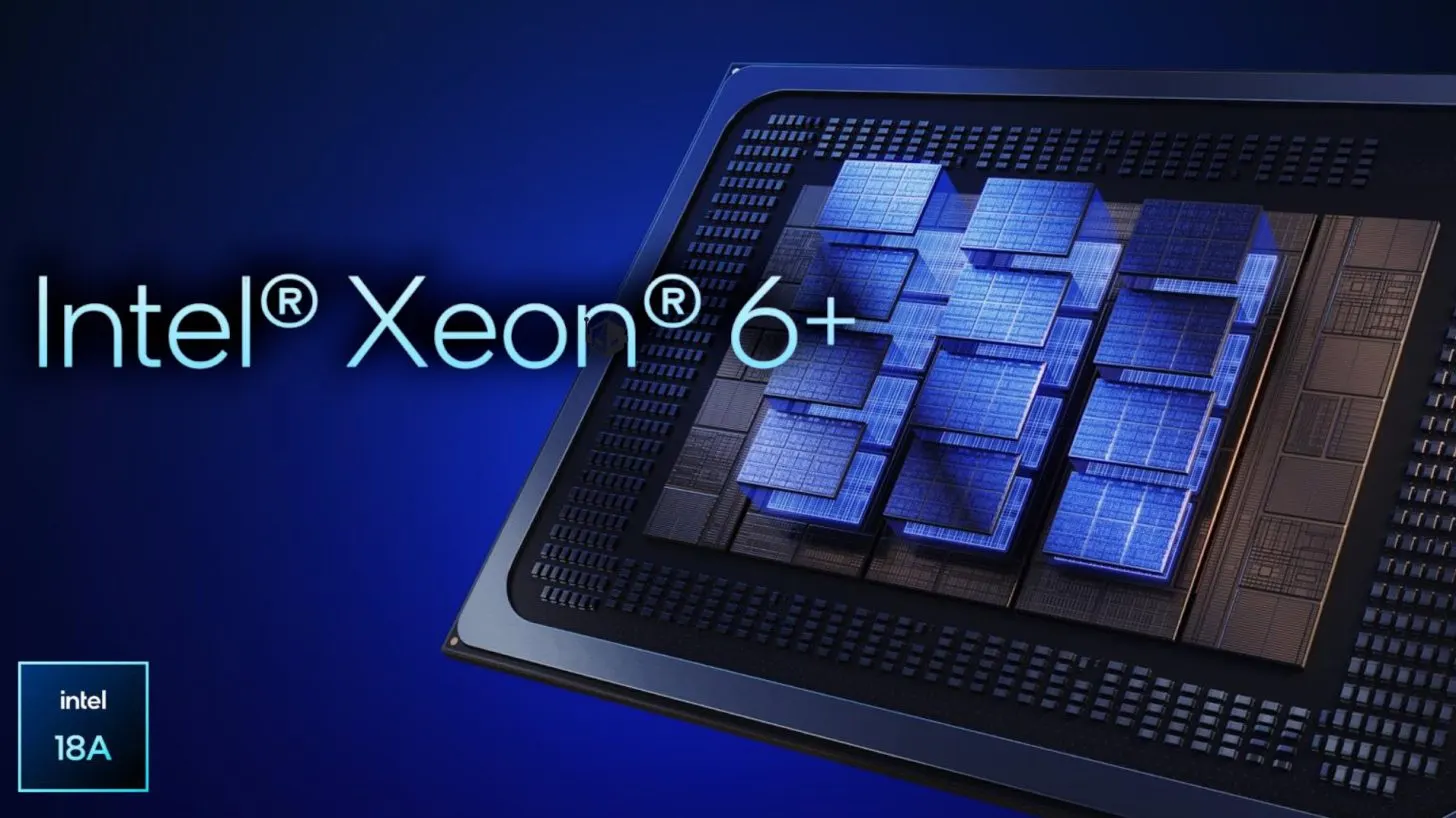

Intel Unveils 288-Core Clearwater Forest Xeon 6+ on 18A Process

The server processor market continues to evolve at a rapid pace, with manufacturers constantly pushing the boundaries of core density and power efficiency. Intel has now entered the next phase of its data center strategy by releasing the Clearwater Forest Xeon 6+ family. This new lineup marks a significant milestone as the first high-volume server chip to utilize the 18A manufacturing process. The introduction signals a deliberate shift toward disaggregated architectures and specialized core designs tailored for modern cloud infrastructure.

Intel has officially introduced the Clearwater Forest Xeon 6+ processor, featuring a 288-core E-core configuration built on the 18A process node. The chip utilizes advanced packaging and the new Darkmont microarchitecture to deliver significant gains in performance per watt and server consolidation capabilities for data center workloads.

What Architectural Shifts Define the Clearwater Forest Design?

Clearwater Forest represents a fundamental departure from traditional monolithic server chip designs. Intel has adopted a multi-layered, disaggregated approach that separates compute, base, and input output functions into distinct silicon tiles. This strategy allows each component to be fabricated on the most suitable manufacturing node rather than forcing the entire die onto a single process. The compute tiles utilize the advanced 18A node, while the active base tiles rely on Intel 3 technology. The input output tiles are built on Intel 7 process technology.

This multi chip package configuration requires sophisticated interconnect solutions to maintain data integrity and latency standards. Intel employs twelve EMIB tiles to bridge the gap between the compute and base layers. The connection utilizes 2.5D packaging techniques that provide high density routing while minimizing signal degradation. The architecture also marks the first high volume deployment of Foveros Direct3D technology in a server processor. This advanced packaging solution uses copper to copper bonding with a nine micrometer bump pitch to create an active silicon interposer. The result is a highly efficient pathway that requires virtually zero power to move data between the compute and input output dies.

How Does the 18A Process Node Change Server Computing?

The transition to the 18A manufacturing process introduces two critical technological innovations that directly impact server efficiency. RibbonFET replaces traditional fin structures with a gate that completely surrounds the transistor channel. This design provides tighter control over electrical currents, which reduces power leakage and allows for lower voltage operation. The gate length is also shortened by five to ten percent compared to previous fin designs. These improvements contribute to a twenty percent reduction in power consumption per transistor while maintaining high performance levels.

PowerVia addresses the traditional bottleneck of front side power delivery by routing electricity through the backside of the silicon die. This backside power delivery method eliminates congestion in the standard cell area and boosts overall performance by up to four percent. The technology also improves standard cell utilization by ten percent and enables more efficient power distribution through nano scale through silicon vias. These manufacturing advances are particularly relevant for large scale data centers. As chip density increases, managing heat and power consumption becomes increasingly difficult. The 18A node provides a foundation for higher core counts without proportionally increasing energy requirements. Industry observers note that Intel Foundry is reclaiming momentum as external customers begin to recognize the viability of these advanced manufacturing techniques.

Why Does the Darkmont Microarchitecture Matter for Workloads?

Each compute tile in Clearwater Forest contains six modules, and each module houses four Darkmont E cores. This configuration results in a total of 288 cores across the entire processor. The Darkmont architecture builds upon the Skymont design previously seen in client processors but introduces substantial enhancements for server environments. The microarchitecture features a nine wide execution pipeline and a wider decode cluster that increases instruction processing capacity by fifty percent compared to the Crestmont design. This expansion allows the processor to handle more complex workloads without sacrificing throughput.

The out of order engine also receives significant upgrades to improve resource allocation and retirement speeds. The processor now supports eight wide allocation and sixteen wide retirement, which accelerates the clearing of completed instructions. The out of order window expands to four hundred sixteen entries, providing more flexibility for dynamic instruction scheduling. Dispatch ports increase to twenty six, while the scalar engine gains eight integer arithmetic logic units and additional load store ports. The vector engine receives four floating point arithmetic logic units and expanded stack capabilities. These hardware changes directly translate to higher instructions per clock performance and better handling of parallelized server tasks.

Memory subsystem enhancements further support the increased computational demands. Each four core cluster includes four megabytes of L2 cache, which doubles the bandwidth to one hundred twenty eight bytes per cycle compared to previous generations. The communication between L1 and L2 caches becomes faster and more predictable by eliminating intermediate fabric transfers. This direct pathway reduces latency and improves overall system responsiveness. The processor also includes a massive five hundred seventy six megabytes of on package last level cache distributed across the base tiles. This expanded cache hierarchy reduces memory access bottlenecks and improves efficiency for database and analytics workloads.

What Platform Specifications Support the New Processors?

The Clearwater Forest lineup integrates with the LGA 7529 socket, which supports both single socket and dual socket configurations. This socket compatibility ensures that existing server infrastructure can accommodate the new processors without requiring complete platform overhauls. The chips operate within a thermal design power range of three hundred to five hundred watts, allowing data center operators to select configurations that match their cooling and power delivery capabilities. Lower core count variants operate at reduced power levels while maintaining competitive performance metrics for less demanding workloads.

Memory support extends to twelve channels of DDR5 with speeds reaching eight thousand megatransfers per second. This high bandwidth memory architecture is essential for AI training pipelines and large scale data processing applications. The platform also includes six universal path interconnect links operating at twenty four gigatransfers per second per lane. This interconnect technology enables efficient communication between multiple processors in a single server node. The input output subsystem provides ninety six PCIe fifth generation lanes and sixty four CXL second generation lanes, ensuring compatibility with modern accelerators and high speed storage arrays.

Security and power management features are integrated directly into the silicon. Intel Software Guard Extensions and Intel Trust Domain Extensions provide hardware level isolation for sensitive workloads and virtualized environments. Application energy telemetry and Turbo Rate Limiter tools give system administrators precise control over power distribution and thermal management. The processor also supports Advanced Vector Extensions two with vector neural network instructions and integer eight support, which accelerates machine learning inference tasks. These specifications position the Clearwater Forest family as a versatile solution for telecommunications, cloud computing, and AI infrastructure.

How Does Clearwater Forest Compare to Competing Server Chips?

Intel has published performance metrics comparing the Clearwater Forest processors against previous generation hardware and direct competitors. The flagship Xeon 6990E+ variant delivers two point two six times higher average performance than the 144 core Xeon 6780E while consuming thirty six percent less thermal design power. Efficiency improvements reach fifty five percent when measuring performance per watt. These gains stem from the combination of the 18A process node, the Darkmont microarchitecture, and the optimized memory hierarchy. Server consolidation ratios improve significantly, allowing cloud providers to run more virtual machines on fewer physical servers.

When compared to the AMD EPYC 9965 processor, which features one hundred ninety two cores built on the Zen five C architecture, the Clearwater Forest chip demonstrates a thirty percent uplift in average performance and efficiency at comparable power levels. The Intel processor operates at four hundred fifty watts while the competing AMD chip requires five hundred watts. Security acceleration shows substantial advantages, with the Clearwater Forest controller delivering a six point two times improvement in symmetric encryption tasks and a two point six times gain in secure hash algorithm processing. These metrics highlight the benefits of dedicated hardware accelerators integrated directly into the server die.

The competitive landscape remains dynamic as rival manufacturers continue to advance their own architectures. AMD has already begun mass production of the Venice platform, which incorporates up to two hundred fifty six Zen six cores. As those chips enter the market, the performance gap may narrow depending on real world deployment conditions and software optimization. Nevertheless, the Clearwater Forest launch establishes a new baseline for E core density and manufacturing efficiency. The processor demonstrates that disaggregated designs and advanced packaging can deliver tangible benefits for data center operators seeking to reduce operational costs.

What Does the Future Hold for Data Center Processors?

The release of Clearwater Forest signals a broader industry shift toward specialized silicon and modular chip design. Data center operators increasingly prioritize performance per watt over raw clock speeds as energy costs and cooling limitations become critical constraints. The success of the 18A node will likely accelerate the adoption of backside power delivery and ribbon field effect transistors across the semiconductor industry. Foundries that can reliably produce these advanced nodes will gain significant competitive advantages in the server market.

Intel has outlined a roadmap that includes subsequent processor families built on even smaller process nodes. The transition to Intel 18A P technology and future packaging innovations will continue to refine core density and interconnect bandwidth. Cloud providers and enterprise IT departments will evaluate these chips based on real world workload performance, software compatibility, and total cost of ownership. The Clearwater Forest Xeon 6+ family provides a robust foundation for next generation infrastructure, but long term success will depend on consistent yield rates, software ecosystem support, and competitive pricing strategies.
