Jay Forrester and the Invention of Practical Computer RAM

In the early 1950s, the transition from laboratory prototypes to reliable, industrial-scale computing required a fundamental breakthrough in data storage. Early machines relied on fragile vacuum tubes and electrostatic displays that frequently failed under continuous operation. The solution emerged from a military research initiative, resulting in a patent that would define computer memory for decades. Engineers sought a stable, non-volatile medium capable of handling real-time data processing without constant maintenance.

Jay Forrester filed the patent for coincident-current magnetic core memory in May 1951, receiving U.S. Patent 2736880 five years later. Designed for Project Whirlwind to replace failing vacuum tubes, the technology used tiny ferrite rings addressed by intersecting copper wires. It survived legal battles, yielding a record $13 million settlement with IBM before Forrester founded system dynamics.

What is magnetic core memory and why did it emerge?

Magnetic core memory represented a decisive engineering departure from the electrostatic storage tubes and magnetic drums that dominated early digital machines. These earlier storage methods suffered from severe reliability limitations. Vacuum tubes generated excessive heat and experienced rapid filament burnout, while electrostatic displays required constant refreshing to maintain their charge. The fundamental problem was not computational speed, but the inability to retain data reliably during continuous operation.

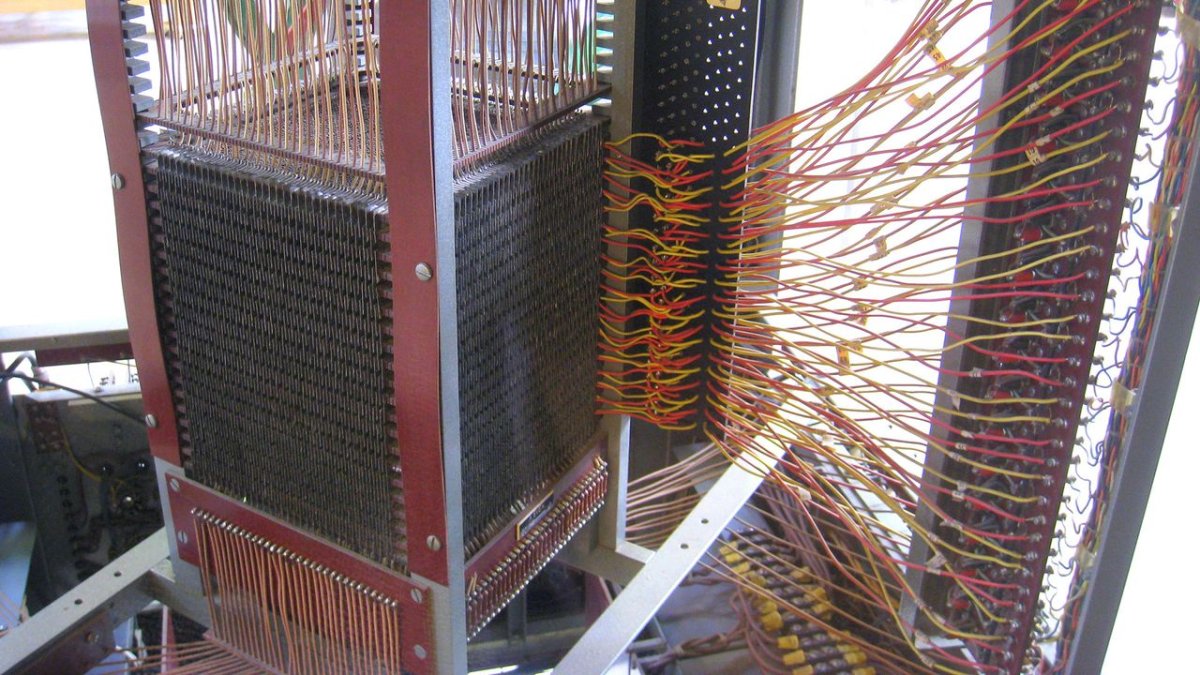

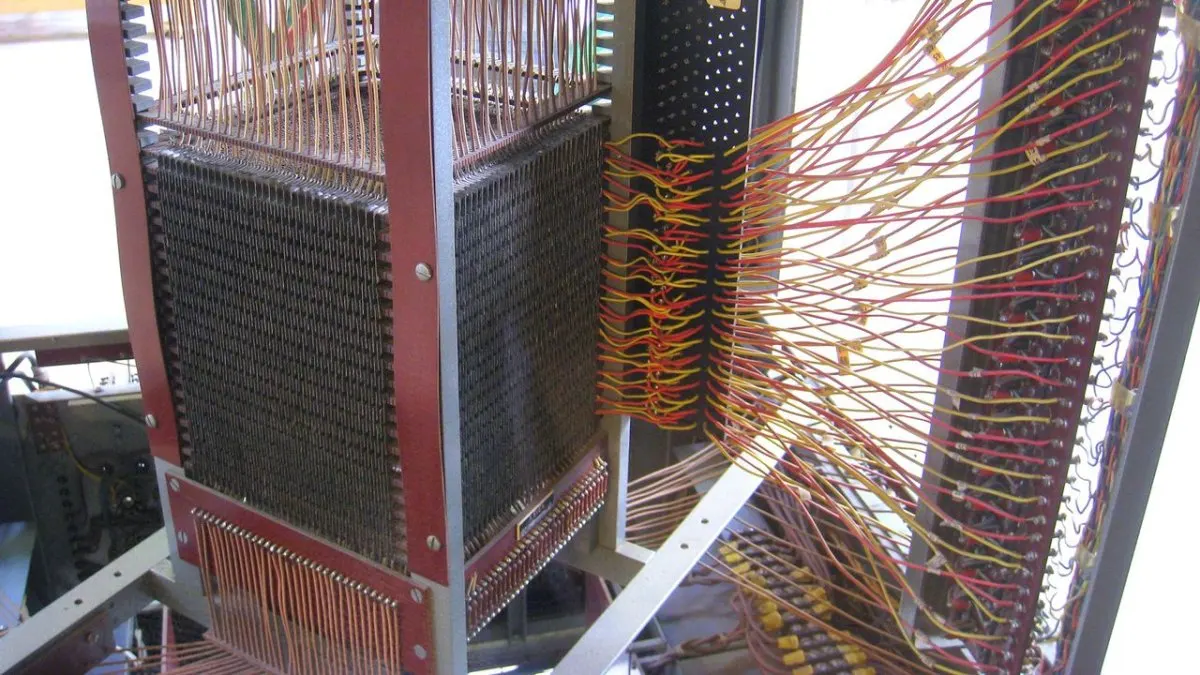

The proposed solution utilized tiny rings of ferrite material, each approximately the diameter of a pencil lead, threaded onto a precise grid of copper wires. This architecture allowed engineers to magnetize individual rings in one direction to represent a binary one, or in the opposite direction to represent a zero. The physical properties of ferrite provided inherent stability, making the storage medium immune to the electrical fluctuations that plagued tube-based systems.

The coincident-current technique formed the core innovation of this design. By sending calibrated electrical pulses through two intersecting wires simultaneously, engineers could selectively magnetize a single ring at the crossing point without disturbing adjacent components. This addressing method dramatically reduced the wiring complexity required to access millions of bits. The three-dimensional array configuration enabled dense packing while maintaining fast read and write cycles.

This physical approach solved the critical bottleneck of random access storage. Previous systems required sequential scanning to locate specific data, causing unacceptable delays in real-time applications. Core memory allowed direct addressing of any stored bit regardless of its physical location within the grid. The reliability and speed of this mechanism made it the logical successor to earlier, more fragile storage technologies.

The engineering constraints of the era demanded a solution that could operate continuously without frequent hardware intervention. Magnetic core memory provided that necessary durability. Ferrite rings retained their magnetic state indefinitely after power removal, yet could be rapidly rewritten when absolutely necessary. This dual capability established the foundational requirements for modern random-access memory architectures across multiple generations of computing hardware.

How did the Whirlwind project reshape computing hardware?

Project Whirlwind originated in the mid-1940s as a United States Navy initiative designed to create a sophisticated flight simulator. The military required a machine capable of processing navigation data in real time, which immediately exposed the limitations of existing storage technologies. Electrostatic storage tubes proved exceptionally vulnerable to breakdown, failing to meet the rigorous demands of continuous air defense tracking.

The computational requirements shifted dramatically as the project evolved from aviation simulation to real-time digital computing. Tracking aircraft in flight demanded instantaneous data retrieval and processing speeds that previous systems simply could not sustain. The constant hardware failures created operational bottlenecks that threatened the entire defense initiative. Engineers needed a storage medium that could withstand relentless computational cycles.

Jay Forrester and his graduate student William Papian responded by developing the first prototype in October 1950. The initial implementation demonstrated that the coincident-current architecture could reliably address and store data without the degradation characteristic of vacuum-based systems. The physical construction involved meticulously weaving copper wires through the ferrite rings to create the necessary magnetic fields.

The first full core memory bank entered active service in Project Whirlwind on August 8, 1953. This installation validated the technology for large-scale deployment and directly enabled the transition to national defense applications. The machine subsequently served as the foundational prototype for the Semi-Automatic Ground Environment (SAGE) air defense network, which operated twenty-three computer-controlled radar installations across the United States and one in Canada.

The success of this implementation fundamentally altered the trajectory of computer hardware design. Military and commercial sectors rapidly recognized the necessity of reliable, high-speed storage for real-time processing. The Whirlwind project demonstrated that complex computational tasks could be executed continuously without the constant maintenance previously required by vacuum tube architectures.

This shift established a new standard for computational reliability. Engineers realized that system durability depended as much on storage technology as on processing logic. The widespread adoption of magnetic core memory across subsequent machine generations proved that physical storage stability was indispensable for advancing digital computing capabilities.

Why did the patent litigation span nearly a decade?

The patent application filed on May 11, 1951, encountered immediate competition from other research institutions. Radio Corporation of America (RCA) engineer Jan Rajchman submitted a similar application eight months earlier, creating direct overlap in claimed priorities. Simultaneously, Harvard researcher An Wang developed a distinct core memory technique that International Business Machines (IBM) acquired in 1955 for five hundred thousand dollars.

The legal landscape surrounding early computing patents was highly competitive and fiercely contested. IBM initiated extensive challenges against Forrester broader patent claims, seeking to invalidate the priority of coincident-current addressing. The corporation deployed significant legal resources to examine the technical merits and historical precedence of the invention.

Massachusetts Institute of Technology (MIT) responded with meticulous forensic documentation to establish Forrester priority. Archival records indicate that the university systematically traced original purchase orders, examined historical telephone bills, reviewed travel vouchers, and analyzed detailed laboratory notebooks. This comprehensive evidence trail provided irrefutable proof of independent development and early conception.

RCA eventually withdrew its competing claims after reviewing the documented evidence. The prolonged litigation highlighted the immense commercial value of foundational computer hardware patents. Corporations recognized that controlling core memory intellectual property would determine market dominance in the emerging digital industry.

The legal resolution concluded in 1964 with IBM settling the dispute for thirteen million dollars. This figure represented the largest patent payout in history at that time. Forrester personally received one point five million dollars from the settlement, reflecting his direct contribution to the invention.

The outcome established important precedents for technology patent enforcement. The case demonstrated that rigorous archival documentation could successfully defend independent invention against well-funded corporate challenges. The settlement also underscored the financial stakes attached to fundamental computing innovations during the early Cold War technological race.

What was the long-term impact on computer architecture?

Magnetic core memory dominated random-access storage for approximately two decades following its successful deployment. The technology provided the reliability and speed necessary for mainframe computers, military systems, and early commercial data processing applications. Its physical architecture influenced subsequent memory designs through its principles of direct addressing and magnetic state retention.

The transition from electrostatic tubes to core arrays marked a critical inflection point in hardware engineering. Engineers could now design machines with predictable performance characteristics rather than managing unpredictable component failures. This stability enabled more complex software development and more sophisticated computational algorithms.

Industrial manufacturing adapted to produce core memory arrays at scale. The standardized wire weaving and ferrite ring production created new supply chains for computer components. These manufacturing processes established quality control standards that influenced broader electronics production techniques.

The conceptual framework of coincident-current addressing laid groundwork for later memory technologies. While subsequent generations adopted semiconductor materials, the fundamental requirement for reliable random access remained unchanged. Core memory proved that direct addressing of binary storage elements was essential for practical computing systems.

System architects recognized that storage durability directly correlated with computational reliability. The industry shifted focus from maximizing processing speed to balancing speed with memory stability. This holistic approach to hardware design became standard practice across all subsequent computing generations.

The technological legacy extended beyond mere component replacement. Core memory demonstrated that physical storage mechanisms could be engineered for precision and longevity. This engineering philosophy guided future innovations in data retention and hardware reliability standards.

How did Forrester transition from hardware to systems theory?

Jay Forrester left active digital computing research in 1956, the same year his patent was officially granted. He joined the Massachusetts Institute of Technology Sloan School of Management, redirecting his analytical expertise toward organizational and industrial processes. This career shift reflected a broader interest in complex feedback systems.

The foundational principles of his memory research naturally aligned with systems engineering. The concept of precise state management and controlled information flow translated directly into industrial dynamics. Forrester applied computational thinking to model economic and social systems rather than computer circuits.

He established the field of system dynamics by developing mathematical models that tracked variables over time. These models utilized feedback loops similar to those found in electronic circuitry but applied to manufacturing, resource allocation, and urban development. The methodology provided quantitative tools for managing complex organizational behavior.

His academic contributions emphasized the importance of structural analysis over isolated event management. By treating organizations as interconnected networks of information flows, he demonstrated how policy decisions created long-term systemic consequences. This approach influenced management theory and computational modeling simultaneously.

Forrester continued his academic work until his death on November 16, 2016, at the age of ninety-eight. His career trajectory illustrated the interdisciplinary nature of technological innovation. The connection between hardware engineering and systemic analysis remains evident in modern computational modeling practices.

Conclusion

The development of coincident-current magnetic core memory resolved a critical vulnerability in early digital computing. By replacing fragile vacuum tubes with stable ferrite arrays, engineers enabled continuous real-time processing that would have been impossible otherwise. The subsequent legal battles highlighted the immense commercial value of foundational hardware patents. The technology provided a reliable storage foundation that accelerated computing development for decades. While modern systems utilize semiconductor architectures, the fundamental requirements for random access and data retention remain unchanged. The intersection of military necessity, engineering precision, and intellectual property law ultimately shaped the trajectory of digital information storage. Understanding this historical evolution clarifies how practical constraints drive technological innovation and institutional adaptation across successive computing generations.
