Compact Wafer Fabs Challenge Semiconductor Economics

The global semiconductor industry has long operated under a rigid economic model that demands massive capital expenditure and sprawling industrial infrastructure. Traditional fabrication facilities require multibillion-dollar investments and years of construction before producing a single functional chip. This financial and temporal barrier has effectively centralized production within a handful of established markets, leaving emerging economies and specialized sectors struggling to access advanced manufacturing capabilities. A fundamental shift in how microchips are produced may finally emerge from an unexpected direction: compact, modular fabrication systems designed for significantly smaller silicon wafers.

A United States startup is challenging the conventional semiconductor manufacturing model by developing compact fabrication systems that utilize smaller silicon wafers. By reducing capital requirements to between five and fifteen million dollars, the company aims to lower barriers for specialized industries and accelerate workforce training programs. The approach prioritizes equipment utilization and capital efficiency over traditional wafer dimensions, offering a viable pathway for decentralized chip production.

What is the economic barrier to traditional semiconductor manufacturing?

The historical trajectory of semiconductor production has been defined by continuous scaling. As consumer electronics demanded greater processing power and energy efficiency, manufacturers responded by building larger fabrication plants capable of processing thousands of wafers monthly. These facilities require highly controlled clean-room environments, advanced lithography tools, and complex utility infrastructure. The financial commitment needed to construct such campuses routinely exceeds several billion dollars. Consequently, only a limited number of corporations and sovereign governments can afford to participate in advanced chip manufacturing. This concentration of capital has created a bottleneck that restricts market entry and limits geographic diversity in the supply chain.

Emerging markets attempting to establish domestic production capabilities face years of planning and construction before achieving operational status. The traditional model inherently favors high-volume output, making it economically unviable for low-volume or highly customized production runs. Manufacturers must maintain constant equipment operation to justify the initial investment, which forces rigid scheduling and limits process flexibility. This structural rigidity has historically prevented smaller organizations from entering the semiconductor supply chain. The industry now faces pressure to diversify production networks while managing escalating infrastructure costs.

How does InchFab approach wafer miniaturization?

InchFab, a United States startup founded by MIT graduate Mitchell Hsing and a team of collaborators, has pursued an alternative strategy focused on equipment miniaturization. The company designs compact clean-room fabrication systems that operate using significantly smaller silicon wafers than those used in conventional foundries. Initial development phases involved experimenting with one-inch wafers, as standard photolithography fields naturally aligned with those physical dimensions. However, practical supply chain complications quickly emerged. One-inch wafers are difficult to source commercially and typically require manual cutting from larger substrates, introducing inefficiencies and potential material defects.

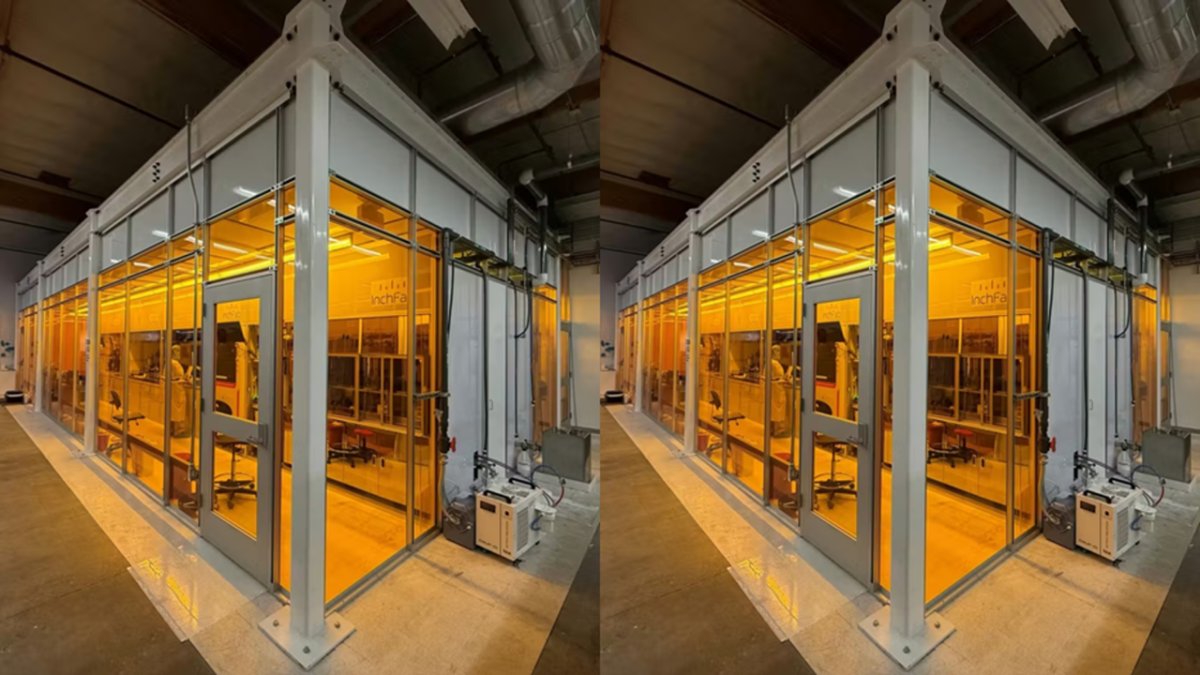

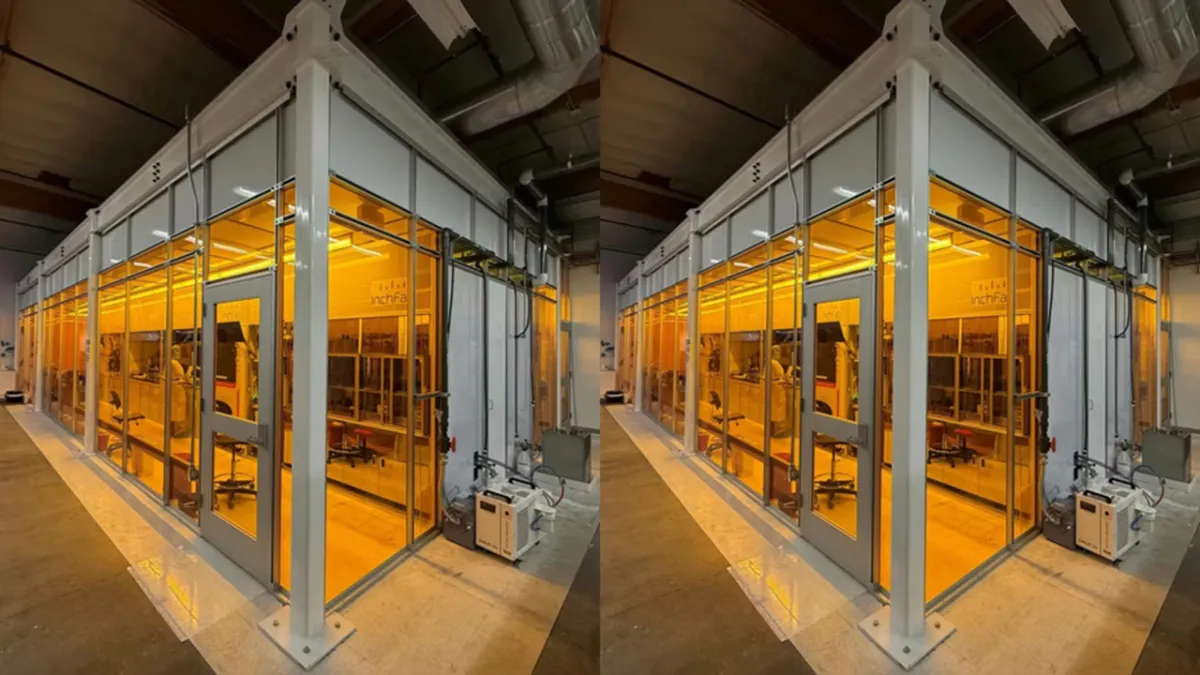

The engineering team subsequently shifted toward two-inch formats before ultimately settling on four-inch wafers. This final selection balanced the advantages of equipment miniaturization with practical manufacturing considerations. The resulting systems occupy roughly the same footprint as standard shipping containers, allowing them to be deployed in existing industrial facilities rather than requiring dedicated campus construction. Modular deployment enables organizations to install fabrication capability directly within research laboratories or regional manufacturing hubs. This geographic distribution reduces logistics costs and accelerates the transition from prototype to production.

The physics of compact plasma processing

Reducing the physical scale of semiconductor fabrication equipment fundamentally alters the underlying engineering dynamics. When fabrication systems shrink, the relationship between chamber surface area and internal volume shifts dramatically. Plasma-based processing systems rely on protective sheath layers that prevent chamber walls from degrading during operation. In miniature environments, these surface interactions become increasingly dominant relative to the processing volume. This physical shift creates distinct operational characteristics that differ substantially from large-scale industrial equipment. Engineers must recalibrate how they manage gas flow, thermal distribution, and chemical reactions within confined spaces.

The altered physics also presents unexpected advantages for certain backend manufacturing processes. Controlling compact plasma chambers simplifies several operational parameters compared to maintaining stability inside massive industrial systems that run continuously at full capacity. Smaller pumps, valves, mass-flow controllers, and vacuum regulation systems require reduced operating volumes, which naturally lowers energy consumption and improves response times. These engineering adjustments make it easier to maintain precise process control during delicate deposition and etching operations. The compact design effectively removes several traditional scaling bottlenecks that complicate large-scale production.

Why does utilization matter more than wafer dimensions?

Critics of wafer miniaturization frequently question whether smaller formats can remain economically competitive against established foundries processing thousands of wafers monthly. The traditional argument emphasizes economies of scale, suggesting that larger wafers inherently reduce the cost per chip. Mitchell Hsing directly challenges this perspective by emphasizing that fabrication economics depend more heavily upon utilization rates and capital efficiency than raw wafer dimensions. The company claims its compact systems can achieve price competitiveness with eight-inch foundries when applied to specialized industrial and aerospace manufacturing requirements.

High utilization ensures that expensive equipment generates revenue continuously, offsetting the lower throughput per individual wafer. Capital efficiency becomes the primary metric for evaluating the financial viability of a fabrication system. When equipment costs drop from billions to single-digit millions, the financial risk associated with technological shifts decreases dramatically. This model allows manufacturers to upgrade or replace processing tools without facing catastrophic capital loss. Organizations can experiment with new process flows without committing to permanent infrastructure. The reduced financial barrier encourages innovation and accelerates the adoption of novel manufacturing techniques.

How are specialized industries adapting to modular fabrication?

The semiconductor industry is gradually recognizing that high-volume production does not serve every application equally. Several sectors require low production volumes, customized process flows, and rapid iteration cycles that traditional foundries cannot efficiently support. InchFab currently serves customers operating in biomedical research, advanced sensing, aerospace engineering, defense contracting, photonics development, and compound semiconductor manufacturing. These fields prioritize flexibility and precision over raw output volume. Modular fabrication systems enable these industries to maintain controlled manufacturing environments close to their research and development facilities.

This proximity accelerates feedback loops between design teams and production engineers. Companies can test new material combinations, adjust deposition parameters, and validate prototypes without waiting for external foundry schedules. The ability to conduct in-house manufacturing reduces lead times and protects sensitive intellectual property from supply chain vulnerabilities. Furthermore, these compact facilities serve a critical educational function. Workforce training programs can utilize the systems to develop domestic technical talent without requiring years of construction or billions in funding. This approach provides a practical pathway for nations attempting to build independent semiconductor capabilities.

What are the limitations and future prospects?

Despite the advantages of compact fabrication, significant technical constraints remain. Lithography continues to serve as the primary limitation for miniaturized systems. Feature size and production speed still depend heavily upon exposure technology constraints. While electron-beam methods can theoretically achieve extremely small geometries, their slower write speeds reduce practicality for large manufacturing volumes. The company acknowledges that advanced chip production still depends heavily upon lithography performance and manufacturing consistency. Scaling down equipment does not eliminate the fundamental physics of light diffraction or the precision requirements of pattern transfer.

Future development will likely focus on optimizing exposure tools for smaller formats and improving process uniformity across miniature wafers. The technology may never replace high-volume foundries for consumer electronics, but it offers a viable alternative for specialized applications where flexibility outweighs scale. Manufacturers must carefully evaluate whether the trade-offs between throughput and capital efficiency align with their specific operational goals. The compact fab model succeeds when applied to high-mix, low-volume environments that demand rapid process adaptation. As industry requirements evolve, modular fabrication may transition from a niche solution to a standard manufacturing option.

Conclusion

The semiconductor industry stands at a crossroads between centralized mass production and decentralized specialized manufacturing. Compact fabrication systems represent a strategic pivot toward capital efficiency and operational flexibility. By prioritizing equipment utilization and reducing infrastructure requirements, these modular systems lower the threshold for participating in chip manufacturing. Workforce training programs can utilize these facilities to develop domestic technical talent without requiring years of construction or billions in funding. The approach does not aim to dismantle traditional foundries but rather to complement them with agile alternatives.

As industries demand more customized components and sovereign nations seek supply chain resilience, modular fabrication may gain increased relevance. The future of semiconductor manufacturing will likely feature a hybrid ecosystem where large-scale plants handle consumer electronics while compact systems serve specialized sectors. This diversification could ultimately strengthen the global technology supply chain by distributing manufacturing capabilities across a broader range of organizations and geographic regions. The shift toward smaller, more efficient fabrication models reflects a broader industry recognition that scale alone no longer guarantees competitive advantage.
