Lenovo ThinkSystem D3 Chassis: Dense Compute Architecture

The Modern Data Center Demands Higher Compute Density

Modern data centers are pushing past the limits of traditional rack-mounted servers. As workloads grow heavier and energy costs climb, facility managers need hardware that delivers maximum compute power without demanding proportional floor space or cooling capacity. Multi-node server architectures answer this challenge by packing independent computing systems into a single, highly efficient enclosure.

What is the architectural shift behind the ThinkSystem D3 chassis?

Multi-node server technology represents a deliberate departure from traditional single-server rack configurations. Instead of dedicating an entire two-rack unit to a single computing system, this architecture partitions the available space into multiple independent nodes. Each node operates as a complete server with its own processing cores, memory channels, and storage interfaces. This modular design allows data center operators to install up to four half-wide nodes within a single enclosure. The engineering philosophy prioritizes compute density over individual node expandability, making it particularly suitable for environments where physical space and power allocation are the primary constraints.

The chassis itself functions as a standardized infrastructure platform rather than a traditional server. It provides the foundational power distribution, physical mounting rails, and network uplink pathways that individual nodes require to function. By centralizing these shared resources, the design eliminates redundant power supplies and cooling fans that would otherwise occupy valuable rack space. This consolidation directly translates to higher operational efficiency, as facility managers can deploy more processing capacity per square foot without proportionally increasing their cooling or electrical infrastructure requirements.

Historically, blade server systems attempted to solve density problems by sharing massive external fan trays and power buses. Those older architectures often suffered from cascading thermal failures, where a single overheating node would raise the ambient temperature for its neighbors. The ThinkSystem D3 chassis abandons that centralized cooling model entirely. Every computational node carries its own dedicated airflow management system. This fundamental shift in hardware design allows each server to operate autonomously, preventing thermal throttling from spilling over between adjacent units and significantly improving overall cluster stability.

How does the shared infrastructure model impact data center efficiency?

Power distribution remains the most critical component of any dense computing environment. The ThinkSystem D3 chassis accommodates three hot-swappable power supplies that deliver electricity to all installed nodes simultaneously. These units carry 80 PLUS Platinum and Titanium certifications, indicating high conversion efficiency that reduces wasted energy as heat. The system supports N-plus-one redundancy, ensuring that a single power supply failure does not interrupt service to the entire chassis. This shared power architecture simplifies electrical planning for IT directors who must balance total facility load against available circuit capacity.

• Network connectivity follows a similar centralized approach. The chassis does not include integrated I/O architecture or built-in network ports.
• It relies on top-of-rack networking switches to handle all external communication.
• This design decision forces administrators to utilize modern switching fabrics that can aggregate bandwidth from multiple nodes efficiently.

By removing networking hardware from the server nodes themselves, Lenovo reduces the power draw and heat generation inside the enclosure. The nodes can dedicate more of their internal power budget to computational tasks rather than peripheral connectivity. Physical deployment logistics also benefit from this shared infrastructure model. The enclosure measures eighty-seven millimeters in height and weighs approximately eleven point eight kilograms when empty. When fully loaded with four nodes and three power supplies, the total weight reaches forty-seven point eight kilograms. Despite this mass, the toolless chassis design allows technicians to slide nodes in and out without specialized equipment. The standardized form factor ensures compatibility with existing rack rails and cable management arms, reducing the capital expenditure required for facility upgrades.

Intel-based multi-node configurations and performance parameters

The Intel-based variants of the ThinkSystem D3 chassis include the SD530 V3 and the SD550 V3. Both systems utilize fifth-generation Intel Xeon Scalable processors. The SD530 V3 adopts a one-rack-unit form factor and supports either one or two processors. When equipped with a single chip, it can utilize processors up to three hundred and fifty watts with sixty-four cores. Dual-processor configurations limit each chip to two hundred and five watts and thirty-two cores. This node supports sixteen DDR5 memory channels and up to one terabyte of system memory.

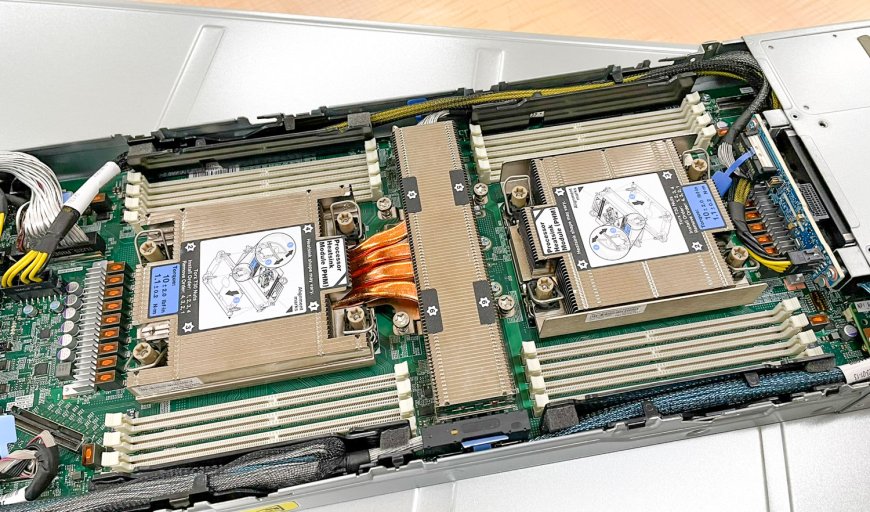

The SD550 V3 expands the physical footprint to two rack units while retaining the dual-processor architecture. The larger chassis allows for substantially bigger CPU heatsinks and a different fan configuration. Instead of four smaller fans, this node utilizes three larger sixty-millimeter dual-rotor units. The increased airflow capacity permits both processors to run at their full three hundred and fifty-watt thermal design power without performance penalties. The SD550 V3 also supports up to two terabytes of memory and includes an internal RAID adapter for SAS and SATA drive configurations.

Both Intel nodes feature identical front panel interfaces, including USB ports, a serial connection, a VGA port, and a dedicated diagnostics port for the XClarity Controller 2. The rear panels provide remote management Ethernet, additional USB connections, and a mini-DisplayPort for local video output. Networking flexibility is achieved through a dedicated OCP 3.0 small form-factor pluggable slot and a PCIe 5.0 x16 expansion slot. These interfaces enable administrators to install high-speed network adapters, GPU accelerators, or specialized storage controllers as workload requirements evolve.

AMD processor integration and core density advantages

The AMD-based ThinkSystem SD535 V3 offers a fundamentally different computational approach by supporting a single processor. This node accommodates fourth-generation AMD EPYC 9004 series chips, which can deliver up to one hundred and twenty-eight cores per socket. While the Intel nodes require two processors to reach sixty-four cores, the SD535 V3 achieves that threshold with a single chip. This architecture appeals to workloads that benefit from massive single-node thread counts and reduced inter-processor communication latency.

Memory capacity scales accordingly with the AMD configuration. The SD535 V3 provides twelve DIMM slots per socket, supporting up to one point five terabytes of DDR5 memory using 3DS registered DIMMs. The processor integrates platform controller hub functions directly into the silicon, eliminating the need for a separate chipset. This integration reduces latency and improves power efficiency. The node retains the same four-fan cooling system as the SD530 V3, ensuring consistent thermal performance despite the higher single-processor power draw.

Storage options on the SD535 V3 closely mirror the SD550 V3, featuring six two-point-five-inch AnyBay drive bays that support SAS, SATA, and NVMe solid-state drives. Two onboard M.2 slots provide dedicated boot storage with optional RAID capabilities. The networking architecture remains identical to the Intel variants, utilizing the OCP 3.0 slot and PCIe 5.0 expansion interface. This hardware consistency allows IT departments to mix AMD and Intel nodes within the same chassis without complicating management protocols or cabling schemes.

Why does independent thermal management matter in dense deployments?

Heat dissipation dictates the physical limits of any computing hardware. As processor core counts and clock speeds increase, the thermal design power of individual chips grows substantially. The Intel-based SD530 V3 and SD550 V3 nodes support fifth-generation Intel Xeon Scalable processors, which can draw up to three hundred and fifty watts per chip. The AMD-based SD535 V3 accommodates fourth-generation AMD EPYC processors with thermal ratings reaching four hundred watts. Managing this level of heat within a confined two-rack unit requires precise airflow engineering.

The chassis meets ASHRAE Class A2 compliance standards, allowing operation in data centers with ambient temperatures up to thirty-five degrees Celsius. This certification reflects the effectiveness of the node-specific cooling design. By keeping thermal loads isolated, Lenovo ensures that each server maintains optimal operating temperatures regardless of the workload distribution across the chassis. The vapor phase heat sinks in the Intel nodes are engineered to function correctly regardless of installation orientation, further simplifying deployment logistics for facility technicians.

• Independent cooling also simplifies predictive maintenance strategies.
• Each node monitors its own fan speeds and temperature sensors to identify failing components before they cause system-wide disruptions.
• The simple-swap fan design allows technicians to replace individual units without powering down the entire chassis.

Hot-swappable capabilities ensure continuous operation during routine maintenance windows. The absence of shared fan trays eliminates the risk of a single cooling failure taking down multiple servers simultaneously.

How do enterprise workloads align with these hardware specifications?

The hardware configuration directly supports specific enterprise computing paradigms. The SD530 V3 node offers two hot-swap E3.S one-terabyte EDSFF drive bays and two onboard M.2 slots for boot storage. It supports up to one terabyte of system memory using sixteen DDR5 RDIMMs. The SD550 V3 expands storage capacity significantly with six two-point-five-inch drive bays and supports up to two terabytes of memory. Both Intel variants feature PCIe 5.0 slots for high-bandwidth networking and peripheral expansion. These specifications cater to transactional processing, cloud infrastructure, and hyperconverged environments where balanced compute and memory performance are essential.

The AMD-based SD535 V3 targets different computational priorities. It supports a single processor capable of one hundred and twenty-eight cores, delivering exceptional single-node thread density. This configuration provides up to one point five terabytes of memory across twelve channels. The node includes six two-point-five-inch drive bays and maintains the same networking and management interfaces as its Intel counterparts. Organizations running big data analytics, machine learning inference, or high-performance computing simulations often prefer this architecture for its ability to concentrate processing power without requiring multiple chassis.

Security protocols remain a fundamental requirement for enterprise hardware. Each node includes a Trusted Platform Module supporting TPM 2.0 specifications, along with power-on and administrator passwords. The XClarity Controller 2 firmware receives continuous security updates to address emerging vulnerabilities. Modern data centers require rigorous security protocols, which is why vendors continuously update their management firmware to address vulnerabilities. These measures ensure that dense compute deployments maintain compliance with industry standards.

What role does systems management play in multi-node environments?

Managing multiple independent servers within a single physical enclosure introduces unique operational challenges. The XClarity Controller 2 embedded management engine addresses these complexities by providing a standardized remote access interface for each node. Administrators can monitor hardware health, adjust power limits, and deploy firmware updates without physical access to the rack. The controller supports standard Redfish REST APIs, enabling integration with existing data center automation platforms. This programmability reduces manual configuration errors and accelerates the provisioning of new compute resources.

Serviceability remains a critical consideration for enterprise hardware. The chassis design prioritizes toolless access to critical components. Technicians can remove and replace drives, fans, and power supplies without specialized tools or extensive disassembly. The nodes themselves slide out smoothly from the enclosure, allowing for straightforward maintenance or replacement. Lenovo backs these systems with a three-year customer-replaceable unit warranty and next-business-day onsite service options. This support structure ensures that hardware failures result in minimal downtime for mission-critical applications.

Performance validation relies on standardized industry benchmarks. Lenovo has published multiple world records for the SD535 V3 and SD550 V3 using SPECpower and SPECjbb testing suites. These results demonstrate the hardware capability to handle intensive transactional workloads across both Linux and Windows Server environments. The operating system support matrix includes Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, and Ubuntu Server. This broad compatibility allows organizations to migrate existing virtualized workloads without rewriting application code or restructuring infrastructure.

Conclusion

The evolution of data center hardware continues to prioritize density and efficiency as computational demands grow. Multi-node architectures demonstrate how shared infrastructure can be balanced with independent processing capabilities to meet modern enterprise requirements. The ThinkSystem D3 chassis provides a structured pathway for organizations seeking to maximize rack utilization while maintaining reliable performance across diverse workloads. As facility managers evaluate capacity expansion strategies, systems that combine high core counts with intelligent thermal and power distribution will remain central to long-term infrastructure planning.
