Apple M5 Max And RTX 5090 eGPU Benchmarks Reveal Performance Realities

The convergence of mobile processors and desktop-class graphics has long defined the trajectory of modern computing. Apple’s transition to custom silicon fundamentally altered performance expectations, yet it also introduced new architectural boundaries for peripheral compatibility. Enthusiasts have consistently sought ways to bypass these limitations, particularly when pairing high-end processors with external graphics hardware. Recent experimental configurations demonstrate that substantial graphical workloads can be routed through portable chassis, though the software pathways required to achieve this remain highly complex.

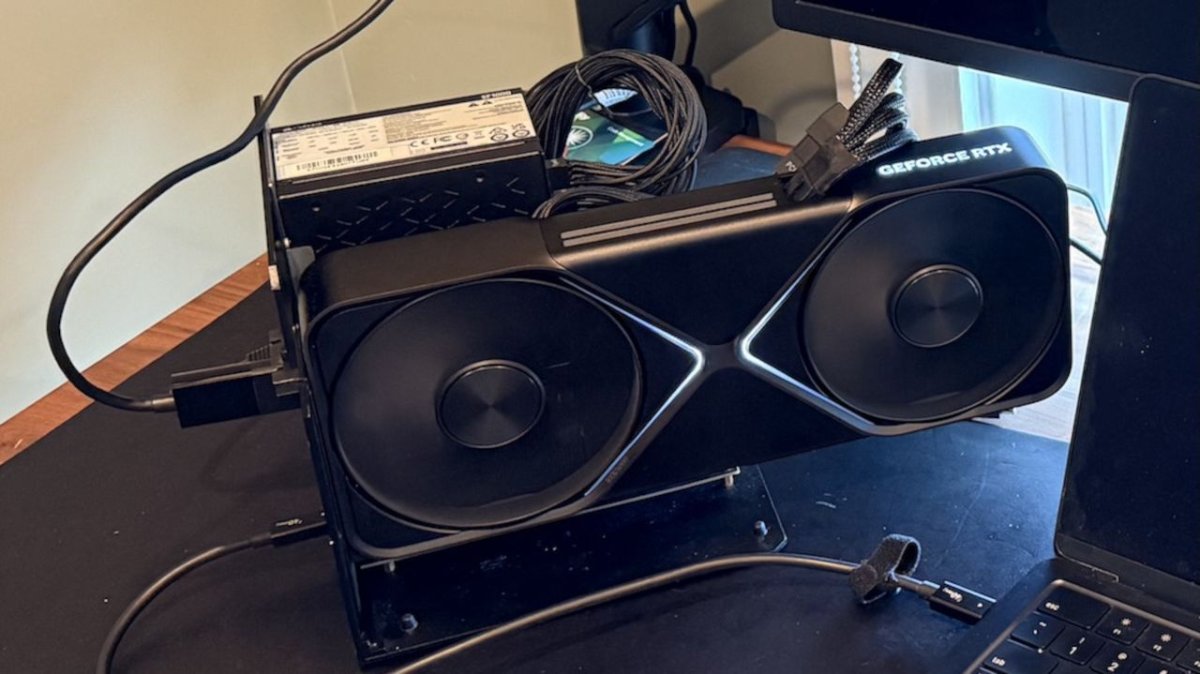

An experimental setup successfully runs an Nvidia RTX 5090 on an Apple M5 Max MacBook Pro via an external dock. Testing shows that modern AAA titles achieve over one hundred frames per second at maximum settings, but only when frame generation is enabled. The configuration demands complex virtualization adjustments and instruction translation layers that significantly reduce processor efficiency.

What drives the push for external graphics on Apple Silicon?

Apple’s migration to ARM-based system-on-chip designs fundamentally changed how the company approaches hardware integration. By consolidating processing, memory, and neural engines onto a single die, Apple achieved remarkable efficiency gains that desktop competitors once struggled to match. However, this architectural shift also eliminated legacy ports and standardized peripheral interfaces, leaving Thunderbolt as the primary channel for high-bandwidth external hardware. Graphics processing units require substantial data throughput, which Thunderbolt connections can theoretically support but historically struggle to deliver consistently to non-native operating systems.

The absence of native driver support for dedicated graphics cards remains the central obstacle for Mac users seeking desktop-level performance. Apple has historically optimized its integrated graphics solutions for specific creative and productivity workflows rather than gaming. This strategic focus means that even when external hardware is physically connected, the operating system lacks the underlying software architecture to recognize and utilize those components directly. Consequently, users must rely on third-party virtualization frameworks and instruction translation utilities to bridge the compatibility gap.

The broader computing industry has witnessed a gradual migration toward cloud rendering and software-based frame generation to compensate for hardware limitations. Technologies that synthesize intermediate frames allow processors to maintain higher average frame rates without increasing raw rendering demands. This shift has altered how enthusiasts evaluate hardware performance, making software optimization as critical as physical component selection. The recent experimental pairing of an M5 Max processor with an RTX 5090 underscores how deeply software workarounds now influence hardware capability assessments.

How does virtualization bridge the gap between macOS and dedicated GPUs?

Establishing a functional environment for external graphics requires navigating multiple layers of architectural incompatibility. The primary challenge involves running a Linux operating system within a virtual machine on ARM hardware. Apple Silicon processors execute ARM instructions natively, while traditional desktop graphics software relies on x86 instruction sets. Virtualization platforms like QEMU can emulate the necessary processor architecture, but raw emulation alone cannot overcome driver or peripheral communication barriers. Users must manually configure PCI base address registers to map memory allocations correctly.

Direct memory access configuration further complicates the virtualization process. Graphics cards require direct pathways to system memory to minimize latency and maximize throughput. Without precise memory routing, data transfer between the external GPU and the virtual machine becomes bottlenecked by software abstraction layers. Enthusiasts must also adjust thread scheduling parameters to prevent benchmark fluctuations. Default virtual machine settings often assign uniform priority levels to virtual processor threads, which causes unstable performance metrics during intensive graphical workloads.

The FEX translation layer serves as a critical intermediary between the virtualized Linux environment and the host processor. This utility converts x86 instructions into ARM-compatible code in real time, allowing traditional desktop software to execute on Apple hardware. The translation process introduces additional computational overhead, as the processor must constantly decode, translate, and execute foreign instructions alongside native tasks. Configuring this layer correctly requires extensive technical knowledge and iterative testing to balance compatibility with performance stability.

What do real-world gaming benchmarks reveal about the M5 Max and RTX 5090 pairing?

Performance testing across multiple software configurations provides a clear picture of how virtualization affects graphical workloads. When frame generation technology is enabled, the experimental setup successfully maintains frame rates above one hundred per second in demanding titles like Cyberpunk 2077. This achievement occurs despite the heavy computational penalties imposed by instruction translation and Thunderbolt data routing. The M5 Max processor handles the additional translation workload efficiently enough to prevent severe bottlenecks, allowing the external graphics card to render frames at high visual fidelity.

Removing frame generation exposes the underlying performance limitations of the virtualized environment. Frame rates drop significantly when the system must render every frame natively. The M5 Max configuration struggles to maintain consistent performance, while older ARM-based devices experience even steeper declines. In direct comparisons, traditional desktop processors paired with the same graphics card demonstrate substantially higher frame rates without relying on software interpolation. This disparity highlights how much of the system’s computational capacity is consumed by translation overhead rather than actual graphics processing.

Additional testing across other demanding titles reveals similar performance constraints. Titles that require heavy CPU involvement or lack robust translation support frequently fall below sixty frames per second. The data indicates that the current virtualization approach cannot fully compensate for architectural differences. While the external graphics card retains considerable raw power, the host processor and software stack limit how effectively that power can be utilized. The benchmarks demonstrate that frame generation is not merely an optional enhancement but a necessary component for maintaining playable performance levels.

How has the evolution of peripheral interfaces shaped hybrid computing?

The physical infrastructure supporting external hardware has undergone significant transformation over the past decade. Thunderbolt technology was originally developed to provide a unified high-speed connection that could handle data, video, and power delivery simultaneously. Each subsequent generation has doubled available bandwidth, theoretically eliminating the performance gap between internal and external components. However, real-world implementations often fall short of theoretical maximums due to protocol overhead, cable quality variations, and power delivery constraints. These physical limitations become increasingly apparent when routing massive graphics workloads across a single cable.

Software ecosystems also play a critical role in determining whether peripheral interfaces can function effectively. Operating systems must maintain robust driver architectures that can dynamically allocate resources across internal and external components. When hardware manufacturers prioritize specialized workflows over universal compatibility, developers face fragmented environments that require extensive troubleshooting. This fragmentation forces enthusiasts to rely on community-driven utilities that patch together disparate systems. The cumulative effect creates a computing experience that feels powerful on paper but requires considerable technical investment to operate reliably.

The intersection of hardware evolution and software development illustrates why hybrid configurations remain niche rather than mainstream. Even when physical connections support unprecedented data transfer speeds, the logical pathways must align to utilize that bandwidth effectively. Manufacturers continue to push architectural boundaries, yet cross-platform compatibility remains a persistent challenge. Until standardized protocols and native driver support mature, users will continue navigating complex workarounds to achieve desktop-class performance in portable form factors.

Why does the translation overhead matter for future hybrid setups?

The performance penalty associated with instruction translation represents a fundamental challenge for cross-architecture computing. Real-world testing indicates that the translation layer reduces processor efficiency by approximately fifty percent compared to native execution. This reduction becomes particularly apparent when evaluating benchmark scores, where virtualized environments consistently produce lower results than native counterparts. The computational cost of decoding and translating instructions constantly competes with graphical rendering tasks, creating a persistent bottleneck that limits overall system responsiveness.

Thunderbolt bandwidth limitations further compound the efficiency losses. Even when the processor handles translation effectively, data must travel across the external connection to reach the graphics card. Physical cable constraints, protocol overhead, and power delivery requirements all contribute to reduced throughput compared to internally mounted hardware. The combination of translation overhead and external data routing creates a compounding effect that restricts maximum performance potential. Hardware enthusiasts must accept that external configurations will always lag behind internal implementations in raw throughput.

The broader implications extend beyond individual benchmark results to the sustainability of hybrid computing models. Software developers increasingly optimize titles for specific architectures, leaving cross-platform compatibility as a secondary concern. Virtualization utilities can bridge temporary gaps, but they cannot eliminate the fundamental inefficiencies inherent in translating between instruction sets. Future improvements will likely depend on native driver development, hardware-level translation capabilities, and industry-wide standardization of peripheral communication protocols rather than software workarounds.

What does this experimental pairing indicate about the future of mobile graphics?

The successful execution of an RTX 5090 on an M5 Max MacBook Pro proves that the theoretical foundation for hybrid computing already exists. Enthusiasts have demonstrated that ARM processors can handle the computational demands of modern graphics workloads when paired with appropriate translation and virtualization tools. The primary barrier is no longer raw processing power but rather software ecosystem fragmentation and driver compatibility. Addressing these challenges requires coordinated efforts from hardware manufacturers, operating system developers, and game studios.

Frame generation technology has emerged as a critical component in making external graphics viable. By synthesizing intermediate frames, these systems reduce the immediate processing burden on the host architecture. This approach allows virtualized environments to maintain playable performance levels despite inherent translation penalties. As frame generation algorithms continue to improve, the gap between native and virtualized performance will likely narrow further. Software optimization will increasingly dictate hardware capability rather than physical specifications alone.

The experimental configuration demonstrates that external graphics processing on Apple Silicon remains theoretically feasible but practically constrained. Enthusiasts willing to navigate complex virtualization setups can achieve respectable performance in carefully selected titles. The reliance on frame generation technology underscores how software optimization has become inseparable from hardware capability. As processor architectures continue to evolve, the industry faces a choice between pursuing native compatibility or refining translation utilities. Until foundational software support improves, external graphics configurations will remain specialized solutions rather than mainstream alternatives.
