Micron 12-Hi HBM3E Stacks Reshape AI Memory Infrastructure

The relentless expansion of artificial intelligence workloads has pushed traditional memory architectures to their physical limits. As computational demands scale exponentially, the bottleneck has shifted from processing power to data movement. Manufacturers are now racing to redesign how memory interfaces with graphics processors, fundamentally altering the infrastructure that powers modern machine learning. The transition from conventional memory modules to highly integrated vertical stacks represents a critical inflection point in semiconductor engineering.

What is the architectural shift behind the new 12-Hi HBM3E stacks?

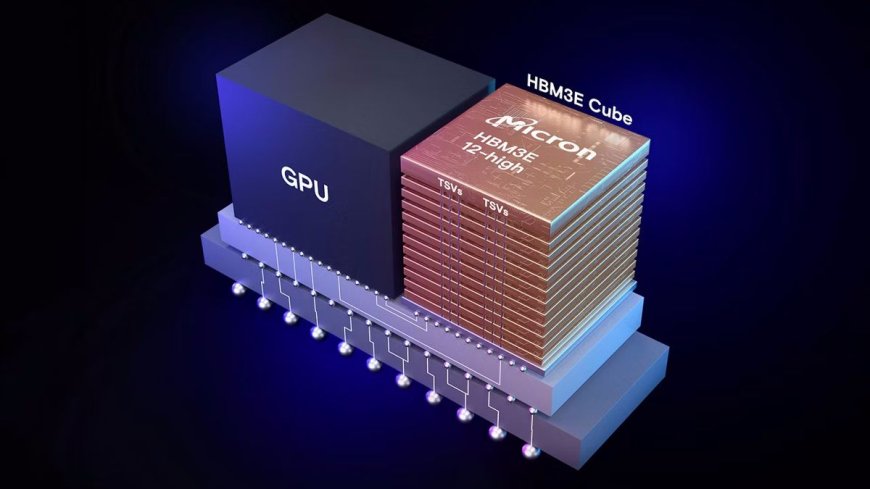

High bandwidth memory has evolved significantly since its initial introduction to the market. The progression from earlier generations to the current twelve-die configuration marks a deliberate engineering response to escalating data requirements. By stacking twelve individual memory dies vertically, manufacturers can dramatically increase the density of the interface without expanding the physical footprint on the motherboard. This vertical integration allows for a massive number of interconnects between the memory layers and the processing unit.

The structural design relies on advanced through-silicon vias that route electrical signals directly through each die. This approach minimizes the distance that data must travel, which directly reduces latency and improves overall system responsiveness. The twelve-high configuration effectively multiplies the available pathways compared to previous eight-die variants. Engineers have optimized the routing layers to maintain signal integrity even at extremely high clock speeds. The result is a memory subsystem that can keep pace with the aggressive computational pipelines of modern graphics processors.

Manufacturing these stacks requires precise alignment and bonding techniques that push the boundaries of current fabrication capabilities. The process involves bonding individual silicon wafers together with microscopic precision. Any defect in the alignment process can compromise the entire stack, which is why yield rates and quality control remain paramount. The successful commercialization of this architecture demonstrates a mature supply chain capable of handling complex three-dimensional integration. Industry observers note that this level of precision is essential for sustaining the trajectory of artificial intelligence development.

How does increased capacity transform large language model deployment?

Artificial intelligence models have grown exponentially in complexity over the past few years. Training and inference tasks now require processors to hold vast amounts of weights and activations in fast-access memory simultaneously. The thirty-six gigabyte capacity of the new twelve-high stack provides a substantial increase over the twenty-four gigabyte limit of earlier eight-die versions. This additional space allows data centers to load significantly larger models directly onto a single graphics processing unit.

When a model fits entirely within the local memory of a processor, the system avoids the severe performance penalties associated with moving data back and forth. Frequent CPU offloading creates bottlenecks that stall computation and waste valuable energy. By keeping the entire seventy-billion parameter model resident in high-speed memory, the processor can execute operations continuously without interruption. This direct access drastically cuts the communication delays that typically occur between different hardware components.

The practical implications for machine learning workflows are substantial. Researchers and enterprise developers can run more complex neural networks without requiring distributed computing across multiple nodes. This consolidation simplifies system architecture and reduces the overall cost of ownership for cloud providers. Faster data processing translates directly into shorter training cycles and more responsive inference services. The ability to scale model size within a single chip accelerates the pace of innovation across the entire artificial intelligence sector.

Bandwidth, power efficiency, and validation mechanisms

Performance metrics for the new memory stacks extend beyond simple capacity measurements. The architecture delivers over one point two terabytes per second of memory bandwidth, ensuring that data flows continuously to the processing cores. Transfer rates exceeding nine point two gigatransfers per second further enhance the throughput capabilities. These figures represent a substantial leap forward in how quickly information can be retrieved and manipulated during intensive computational tasks.

Despite the significant increase in capacity, the design maintains strict power efficiency standards. The twelve-high configuration consumes less power than previous eight-die versions while delivering superior performance. This efficiency is achieved through optimized voltage regulation and improved signal routing that minimizes electrical resistance. Lower power consumption reduces cooling requirements in data centers, which directly impacts operational expenses and environmental sustainability.

Reliability testing plays a crucial role in the commercialization of these advanced memory modules. The inclusion of a fully programmable memory built-in self-test system allows manufacturers to validate each stack before deployment. This technology simulates system-level traffic at full operational speed, identifying potential defects early in the production cycle. Faster validation times accelerate the time-to-market for system integrators and reduce the risk of deploying untested components into critical infrastructure.

Why does advanced packaging dictate the future of AI hardware?

The integration of memory with processors relies heavily on sophisticated packaging technologies. The new memory stacks are designed to work seamlessly with chip-on-wafer-on-substrate methodologies. This approach places the memory dies directly onto an interposer, which then connects to the main processor substrate. The interposer acts as a high-density highway for electrical signals, bridging the gap between different components with minimal signal degradation.

Traditional packaging methods struggle to accommodate the massive number of connections required for modern graphics processors. Advanced packaging solves this problem by utilizing microbumps and fine-pitch interconnects that fit within a compact area. This density allows for more memory channels and higher bandwidth without increasing the physical size of the final module. The technology has become indispensable for manufacturers aiming to build the next generation of artificial intelligence accelerators.

Strategic partnerships between memory manufacturers and semiconductor foundries are essential for scaling these complex systems. Long-term collaboration ensures that memory designs align with packaging capabilities and fabrication processes. Joint development efforts streamline the qualification process and reduce the time required to bring new products to market. This cooperative model has proven effective in addressing the unique challenges of three-dimensional integration and high-speed signal transmission.

The strategic alignment between memory manufacturers and foundries

Industry leaders recognize that isolated development is no longer sufficient for meeting the demands of artificial intelligence. Coordinated engineering efforts between memory producers and foundries create a unified pipeline for hardware innovation. This alignment allows for simultaneous optimization of memory architecture and packaging design. Engineers can address thermal management, signal integrity, and mechanical stress as integrated problems rather than isolated challenges.

The ecosystem surrounding these technologies continues to expand as more companies adopt advanced packaging standards. Standardization efforts help ensure compatibility across different hardware generations and manufacturer platforms. This interoperability reduces the risk for system integrators who must balance performance requirements with supply chain flexibility. The collaborative approach has established a foundation for sustained growth in the artificial intelligence infrastructure market.

What does the roadmap reveal about next-generation memory standards?

The development of current memory stacks is only one phase in a longer trajectory of hardware evolution. Engineers are already working on subsequent generations that will push the boundaries of performance even further. The upcoming fourth generation of high bandwidth memory aims to address the escalating demands of future processor architectures. These next steps will likely introduce new interface protocols and enhanced power management techniques.

Future processors based on advanced silicon architectures will require memory systems that can keep pace with their computational capabilities. The transition to newer memory standards will involve significant changes in how data is routed and stored. Manufacturers are exploring alternative materials and bonding techniques to improve reliability and reduce costs. These innovations will be critical for supporting the continued scaling of artificial intelligence workloads.

The competitive landscape for memory technology remains highly dynamic. Companies that successfully deliver reliable, high-performance memory solutions will secure a dominant position in the artificial intelligence supply chain. The focus on power efficiency and capacity scaling will continue to drive engineering decisions. As computational demands grow, the importance of advanced memory architectures will only increase. The industry is poised for further breakthroughs in how hardware handles data.

The ongoing evolution of memory technology underscores the critical role of infrastructure in enabling artificial intelligence. As models grow larger and more complex, the hardware supporting them must adapt accordingly. The transition to twelve-die stacks represents a significant milestone in this continuous process. Future advancements will build upon these foundations to meet the ever-increasing demands of computational science. The trajectory points toward a future where data movement is no longer a constraint, but a catalyst for innovation.
