MIT 3D Prints Triaxial Electrospray Nozzles for Drug Delivery

The intersection of microfluidics and additive manufacturing has long promised a revolution in precision engineering. Traditional fabrication methods for microscopic fluidic devices rely heavily on semiconductor cleanrooms, where extreme environmental controls and photolithography dictate production timelines. Researchers at the Massachusetts Institute of Technology have recently demonstrated a viable alternative to this costly infrastructure. By utilizing high-resolution resin printing, a team has successfully manufactured complex triaxial electrospray emitter arrays outside of controlled laboratory environments. This development removes a significant financial and logistical barrier that has historically restricted the widespread adoption of advanced droplet generation technologies.

MIT researchers have successfully fabricated triaxial electrospray emitter arrays using high-resolution 3D resin printing, eliminating the need for expensive semiconductor cleanrooms. The modular design enables scalable production of three-layered microdroplets for targeted drug delivery and tissue regeneration, marking a significant step toward accessible precision manufacturing and broader biomedical innovation.

What is triaxial electrospray and why does it matter?

Electrospraying represents a specialized technique for atomizing liquids into microscopic droplets through the application of high-voltage electric fields. Unlike conventional mechanical nozzles that rely on physical pressure to break fluid streams, electrospray systems manipulate surface tension and electrostatic forces to achieve unprecedented control over droplet size and composition. The process has historically served niche applications ranging from mass spectrometry ionization to specialized space propulsion systems. The fundamental advantage lies in the ability to generate uniform particles with diameters far smaller than those produced by purely mechanical methods. This precision becomes particularly valuable when handling multiple liquid phases simultaneously.

The traditional manufacturing pathway for these microscopic emitters has always demanded semiconductor-grade fabrication facilities. Cleanroom environments provide the necessary temperature stability, particulate filtration, and vibration isolation required to print photomasks and etch silicon wafers. Producing even a single array of high-precision emitters typically requires months of specialized labor and substantial capital investment. These constraints have effectively limited electrospray technology to well-funded academic laboratories and large-scale industrial research divisions. The financial and temporal barriers have prevented smaller biotech firms and independent medical device developers from accessing the technology or conducting preliminary experiments.

How does additive manufacturing solve the precision challenge?

The introduction of high-resolution stereolithography has fundamentally altered the landscape of microfluidic device production. Researchers utilized a specialized resin printer capable of resolving features down to twenty-seven micrometers per pixel. This level of optical precision allows the machine to deposit photopolymer materials with sufficient accuracy to form the intricate internal channels required for triaxial operation. The printer does not require the extreme environmental controls of a semiconductor facility. Instead, it relies on controlled light exposure to cure liquid resin into solid three-dimensional structures layer by layer.

Constructing a triaxial emitter demands a complex network of concentric microchannels that must remain perfectly aligned. The outer channel delivers the protective coating layer, the middle channel supplies the therapeutic agent, and the innermost channel transports the core active ingredient. Maintaining this geometric alignment during fabrication has traditionally been impossible outside of cleanroom environments. The 3D printing approach bypasses the need for multi-step lithography and chemical etching. It allows engineers to design the entire fluidic architecture as a single continuous structure, significantly reducing assembly errors and material waste.

What are the practical applications of layered microdroplets?

The ability to generate three-layered microdroplets opens numerous pathways in advanced medical and materials science. Pharmaceutical developers can utilize this technology to create targeted delivery systems that release medications at specific locations within the human digestive tract. The outer shell can be engineered to dissolve only after passing through the stomach, while the middle layer promotes cellular regeneration. The innermost core can contain a protective antibiotic that shields newly forming tissue from infection. This multi-stage release mechanism ensures that each component reaches its intended destination without premature degradation.

Tissue engineering stands to benefit equally from this precision droplet generation. Artificial cells constructed through electrospraying can mimic the structural complexity of natural biological tissues. Researchers can layer biocompatible polymers around living cells to create scaffolds that guide tissue growth. Self-healing materials represent another promising application domain. By embedding microcapsules containing healing agents within a larger matrix, engineers can create surfaces that automatically repair microfractures when exposed to environmental triggers. The modular nature of the printed emitter arrays allows these materials to be scaled for industrial manufacturing.

What does the future hold for scalable emitter arrays?

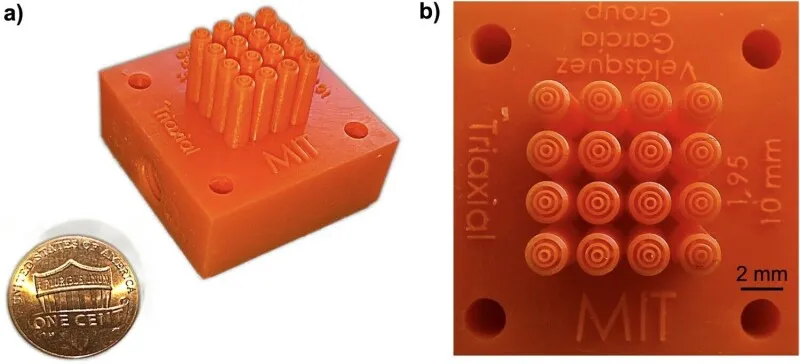

The current prototype contains sixteen functional emitters distributed across a single square centimeter of surface area. This density represents a functional proof of concept rather than a final commercial limit. The primary constraint remains the optical resolution of the available resin printing hardware. As printer technology advances, the emitter density can increase proportionally. Researchers have calculated that tiling the modular design across a larger footprint could yield approximately fifteen thousand emitters per square foot. This scalability transforms the technology from a laboratory curiosity into a viable manufacturing platform.

Commercial deployment will depend heavily on material compatibility between the printed resin and the target liquid formulations. Different chemical compositions require varying degrees of solvent resistance and surface tension management. Manufacturers will need to select specific resin feedstocks that maintain structural integrity while resisting degradation from the sprayed materials. The underlying fluidic architecture remains the critical innovation. The precise routing of the tube network and the strategic placement of support structures ensure uniform droplet formation across all emitters. These design elements constitute the core intellectual property driving the technology forward.

Academic institutions typically restrict faculty and staff from founding commercial ventures based on university research. Instead, researchers focus on licensing agreements and technical advisory roles for external partners. The development team has indicated readiness to collaborate with industry stakeholders interested in bringing the emitter arrays to market. This licensing pathway allows specialized biotech companies to adapt the core design for specific therapeutic applications. It also ensures that the technology reaches commercialization without compromising academic oversight or intellectual property rights.

Why does removing cleanroom dependency matter for scientific progress?

The democratization of microfluidic fabrication represents a fundamental shift in how scientific tools are developed. Historically, the barrier to entry for precision engineering has been measured in millions of dollars and years of facility construction. By transferring fabrication to standard desktop or benchtop resin printers, laboratories worldwide can prototype complex fluidic devices rapidly. This acceleration reduces the time between conceptual design and functional testing. Researchers can iterate on channel geometries and emitter spacing without waiting for external cleanroom scheduling. The resulting feedback loop dramatically speeds up the innovation cycle and resource allocation.

How will material science evolve alongside this manufacturing shift?

The compatibility between printed polymers and sprayed liquids dictates the ultimate utility of these emitter arrays. Different therapeutic compounds and biological materials require specific surface energies and chemical resistances. Engineers must carefully match the cured resin formulation to the intended fluidic payload. This requirement ensures that the microchannels do not swell, crack, or degrade during operation. Future iterations will likely feature specialized resin chemistries optimized for aggressive pharmaceutical solvents or delicate biological suspensions. The ability to customize material properties alongside geometric precision will expand the technology into new scientific domains.

What structural limitations currently constrain wider adoption?

Despite the clear advantages, several engineering hurdles remain before widespread commercial deployment. The resolution limits of resin printers directly dictate the minimum channel diameter and emitter spacing. As designs become more complex, the risk of resin shrinkage during curing increases. Engineers must account for thermal expansion coefficients and polymerization stress to maintain channel alignment. Additionally, post-processing steps such as washing and ultraviolet curing require careful handling to preserve microscale features. Addressing these manufacturing variables will determine how quickly the technology transitions from experimental prototypes to standardized industrial components.

How does this innovation impact the broader biotechnology sector?

The reduction in fabrication costs and timeline fundamentally alters the competitive landscape for medical device development. Smaller research groups can now access precision fluidic tools that were previously reserved for well-funded institutions. This accessibility encourages cross-disciplinary collaboration between materials scientists, pharmacologists, and mechanical engineers. The ability to rapidly prototype and test new emitter geometries accelerates the discovery of novel therapeutic delivery mechanisms. As the technology matures, it will likely establish new standards for microfluidic device manufacturing across multiple scientific disciplines.

The transition from cleanroom-dependent fabrication to high-resolution additive manufacturing marks a significant inflection point for microfluidic engineering. By removing the financial and logistical barriers associated with semiconductor facilities, researchers have democratized access to precision droplet generation. The modular emitter arrays demonstrate that complex three-layered fluidic systems can be produced rapidly and cost-effectively. This advancement will likely accelerate development cycles in targeted drug delivery, artificial tissue construction, and advanced materials science. The technology proves that intricate microscale engineering no longer requires macroscopic infrastructure to succeed.
