Edatec CM4 Industrial Panel Features Dual Ethernet and 4G LTE

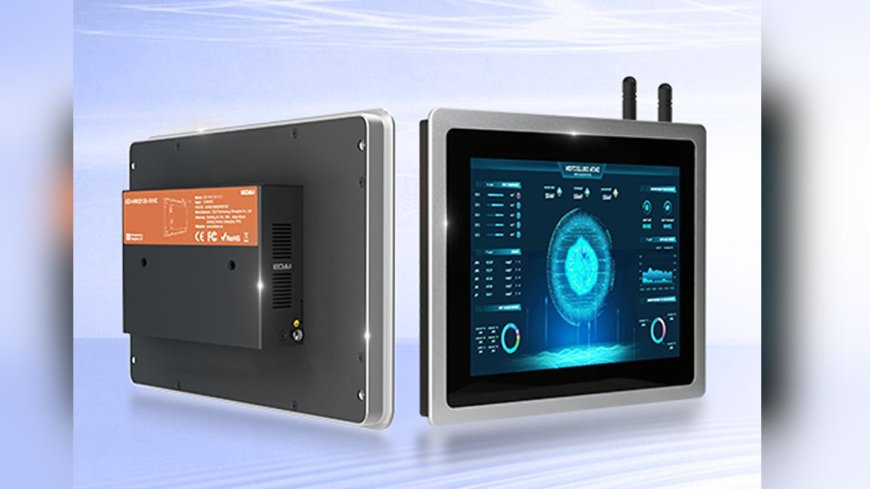

The landscape of industrial automation continues to shift toward modular computing architectures that balance processing power with physical durability. Manufacturers increasingly demand hardware capable of operating in harsh environments while maintaining robust connectivity standards. Edatec has addressed this market need by releasing the ED-HMI2120-101C, a carrier board designed specifically for the Raspberry Pi Compute Module 4 (CM4). This new panel integrates a comprehensive suite of industrial interfaces into a single enclosure, offering engineers a streamlined pathway to deploy edge computing solutions without extensive custom circuit design.

What is the Edatec ED-HMI2120-101C Industrial Panel?

This device represents a significant evolution in modular computing hardware designed for manufacturing and facility management applications. The primary architecture centers around the Raspberry Pi Compute Module 4, which serves as the processing core for all operational tasks. Engineers can mount this module directly onto the carrier board to establish a compact yet powerful computing environment. The physical enclosure houses a ten-inch thin-film transistor liquid crystal display with a resolution of one thousand two hundred eighty by eight hundred pixels. This visual interface allows operators to monitor system performance, control machinery parameters, and view diagnostic data in real time without requiring external monitors.

The hardware design prioritizes direct access to essential industrial protocols while maintaining compatibility with standard computing workflows. A forty-pin general-purpose input-output header remains available for connecting additional sensors or actuators directly to the compute module. Video output capabilities include an HDMI two-point-zero port, which supports high-definition signal transmission for secondary displays or recording equipment. An eight-megapixel camera interface allows the system to integrate visual inspection tools or environmental monitoring cameras into automated workflows. Audio functionality is provided through integrated five-watt speakers and a standard three-point-five millimeter jack for external sound devices.

Why Does Dual Ethernet and 4G LTE Matter for Edge Computing?

Industrial environments frequently demand redundant network pathways to ensure continuous operation during infrastructure failures or maintenance periods. The ED-HMI2120-101C addresses this requirement by incorporating two distinct RJ-four-five ports on its rear panel. One of these connections supports Power over Ethernet technology, which simplifies installation by delivering both data transmission and electrical power through a single cable. This feature reduces wiring complexity in factory floors where technicians must deploy dozens of connected devices simultaneously. The second network interface provides an independent communication channel for backup operations or segregated network traffic management.

Wireless connectivity options further expand the deployment flexibility of this carrier board. Built-in wireless local area networking and Bluetooth protocols allow seamless integration with existing facility infrastructure. More importantly, the system includes dedicated four-gigabyte long-term evolution support alongside a sma antenna connector. This cellular capability ensures that machines can maintain communication links even when wired network infrastructure is unavailable or compromised. Network reliability remains a critical factor in automated systems, and understanding wireless limitations helps engineers plan robust fallback strategies. The combination of cellular, wireless, and wired options creates a resilient communication architecture suitable for remote monitoring stations or mobile industrial equipment.

Redundant network configurations prevent single points of failure that could halt production lines or disrupt safety monitoring systems. When primary connections experience latency spikes or physical damage, secondary pathways immediately assume data routing responsibilities without interrupting active processes. This dual architecture aligns with modern industrial control standards that prioritize uninterrupted operation over cost efficiency. Engineers can configure load balancing algorithms to distribute traffic evenly across both ports during normal operations while automatically switching to backup channels during peak demand periods.

Cellular integration addresses geographic limitations where traditional broadband infrastructure cannot reach remote equipment installations. Agricultural monitoring stations, construction site controllers, and transportation logistics hubs frequently operate outside standard network coverage zones. The included sma connector allows technicians to attach directional antennas that improve signal reception in obstructed environments. This capability ensures continuous telemetry transmission regardless of local telecommunications availability, which remains essential for predictive maintenance algorithms and real-time inventory tracking systems.

How Does Storage Expansion Improve System Reliability?

Traditional embedded systems often rely on flash memory cards that degrade over time due to frequent read and write cycles. The ED-HMI2120-101C mitigates this vulnerability by introducing an m-point-two nvme solid-state drive socket into its design. Users can install either a twenty-three-zero or twenty-four-two form factor storage module through the b-key interface, which dramatically increases data throughput compared to standard memory cards. This upgrade enables faster boot sequences, quicker database queries, and more efficient logging of operational metrics in demanding industrial applications.

The system retains a microsd card slot for initial operating system installation alongside a four-kilobyte electrically erasable programmable read-only memory chip. These components work together to establish secure boot processes and store configuration parameters that persist across power cycles. Engineers can utilize the expanded storage capacity to host complex control algorithms, machine learning models, or extensive historical data archives directly on the edge device. This local processing capability reduces latency by eliminating the need to transmit raw information back to centralized servers for analysis.

Solid-state storage architectures eliminate mechanical failure risks associated with spinning disk drives in vibrating machinery environments. Industrial controllers experience constant physical stress from heavy equipment operation, which accelerates wear on traditional hard drives and corrupts stored data over extended periods. The nvme interface provides vibration resistance alongside thermal management capabilities that maintain consistent performance across temperature fluctuations. This durability ensures critical control software remains intact during unexpected power interruptions or environmental shocks.

Power Management and Peripheral Support

Industrial equipment must operate reliably across varying electrical conditions, which requires flexible input voltage tolerance. The carrier board accepts direct current ranging from nine volts up to thirty-six volts, allowing integration with standard factory power distribution systems or battery backups. This wide input range protects sensitive computing components from voltage fluctuations that commonly occur in heavy machinery environments. Internal regulation circuits convert the incoming power into stable voltages required by the compute module and peripheral interfaces.

Power distribution extends beyond the internal circuitry to support external hardware requirements. The system provides twelve-volt direct current outputs capable of driving additional peripherals connected to the main panel. Technicians can attach up to three separate devices using these dedicated output channels, which simplifies wiring layouts in control cabinets. This capability allows operators to power secondary display screens, lighting indicators, or small cooling fans directly from the carrier board without requiring external power supplies.

Efficient power routing reduces thermal buildup within confined equipment enclosures where airflow remains restricted. By consolidating multiple voltage conversion stages into a single regulated output channel, engineers minimize heat generation that could otherwise degrade nearby electronic components. The twelve-volt distribution network maintains consistent current delivery even when attached peripherals draw fluctuating amounts of energy during active processing cycles. This stability prevents unexpected shutdowns caused by power starvation or electrical interference from adjacent machinery.

What Are the Practical Applications for This Carrier Board?

Manufacturing facilities increasingly adopt modular computing architectures to streamline equipment upgrades and reduce downtime during maintenance cycles. The ED-HMI2120-101C serves as a direct replacement for legacy human-machine interface panels that rely on outdated processors or proprietary operating systems. Engineers can migrate existing control software to the Raspberry Pi operating system environment while leveraging additional drivers to activate every hardware feature on the panel. This transition allows facilities to maintain familiar operational workflows while benefiting from modern processing capabilities and expanded connectivity options.

Agricultural monitoring stations benefit significantly from the integrated cellular networking and ruggedized design elements. Remote sensors deployed across large fields require continuous data transmission regardless of local network availability. The dual Ethernet ports ensure stable connections when wired infrastructure is present, while the four-gigabyte long-term evolution module maintains communication during storms or equipment failures. Solar-powered installations can utilize the wide voltage input range to draw energy directly from battery banks without complex conversion hardware.

Transportation logistics hubs utilize these panels to track fleet movements and manage warehouse inventory automation. Mobile tracking devices mounted on delivery vehicles require reliable data collection systems that function across diverse geographic regions. The carrier board supports continuous telemetry gathering alongside localized decision-making processes that optimize routing algorithms without relying on cloud dependencies. This autonomous operation capability ensures accurate cargo documentation even when traveling through areas with limited telecommunications coverage.

The integration of standardized computing modules into specialized industrial enclosures continues to reshape how organizations approach automation infrastructure. By combining proven processor architecture with purpose-built connectivity and storage solutions, manufacturers gain the flexibility to adapt equipment to changing operational requirements without redesigning entire control systems. This modular approach reduces development costs while accelerating deployment timelines for new monitoring stations or upgraded machinery interfaces.

As edge computing becomes more prevalent across production environments, hardware that balances processing power with physical durability will remain essential for maintaining continuous operations in demanding conditions. Engineers who prioritize redundant networking pathways and expandable storage architectures will build systems capable of surviving extended deployment cycles without frequent maintenance interventions. The industry continues to move toward unified platforms that simplify integration while delivering reliable performance across diverse operational contexts.
