Silicon Motion SM2524XT Redefines Mainstream SSD Performance for AI Workloads

The evolution of solid-state storage has long been defined by a simple trajectory: more channels, more dies, and higher bandwidth. For years, achieving peak sequential read speeds required expensive enterprise-grade hardware or high-end consumer drives packed with complex multi-channel controllers. Mainstream systems have historically operated with a performance ceiling, constrained by the physical limitations of quad-channel architectures and the growing memory bottleneck that occurs when local processing tasks outpace available system memory. A recent architectural shift is beginning to close that gap, introducing a new class of storage controllers designed to deliver unprecedented throughput without relying on traditional memory buffers.

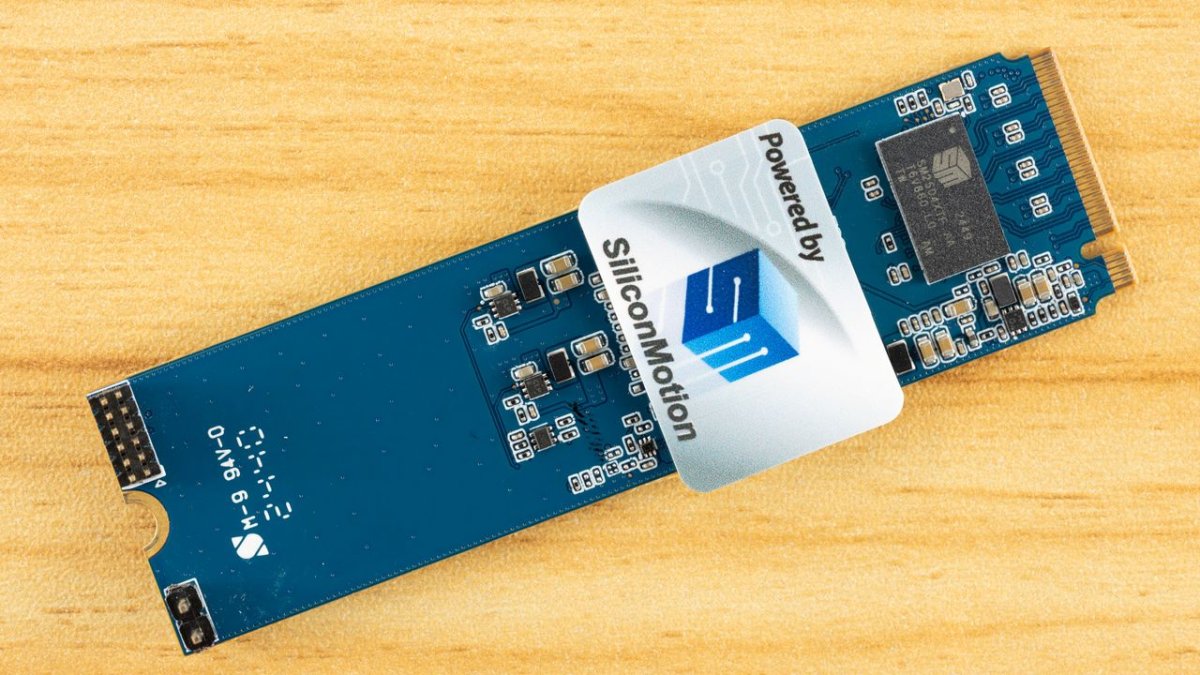

Silicon Motion has introduced the SM2524XT, a six-nanometer DRAMless controller that enables mainstream solid-state drives to reach fourteen gigabytes per second in sequential reads. By leveraging advanced three-dimensional NAND interfaces and specialized command separation technology, the chip significantly reduces latency for local artificial intelligence workloads. This development marks a pivotal step toward making high-performance, AI-optimized storage accessible to everyday computing environments rather than restricting it to specialized data centers.

What is the Silicon Motion SM2524XT controller and how does it differ from previous generations?

The Silicon Motion SM2524XT represents a deliberate recalibration of mainstream storage architecture. Historically, manufacturers relied on eight-channel controllers to push sequential read speeds beyond the twelve gigabyte per second threshold. Those designs demanded complex routing, higher power consumption, and significantly more board space. The new platform achieves comparable throughput using only four NAND channels. Each channel supports data transfer rates approaching four thousand eight hundred megatransfers per second. This achievement relies on compatibility with next-generation three-dimensional NAND flash memory that features a faster internal interface. The controller operates without a dedicated dynamic random access memory buffer, a design choice that has traditionally been associated with cost reduction but now delivers performance metrics that challenge older assumptions about DRAMless limitations.

Silicon Motion developed the silicon using a six-nanometer process technology manufactured by TSMC. Moving to a smaller fabrication node reduces power consumption and thermal output while allowing more transistors to fit within a compact footprint. The chip complies with the NVM Express 2.0 specification and utilizes a PCIe five point zero x four host interface. These specifications ensure that the storage device can communicate with modern motherboards without becoming a bottleneck. The architecture supports both three-dimensional triple-level cell and quad-level cell NAND flash. To manage the increased error rates inherent in denser memory cells, the controller integrates Silicon Motion NANDXtend low-density parity check error correction coding technology. The company has not publicly disclosed the exact generation of the flash memory or the specific codeword size, but the engineering clearly targets sustained high-speed operations under heavy computational loads.

The silicon is built upon four processing cores, which are presumed to be Arm Cortex-R-series processors. This core configuration handles the complex scheduling tasks required to manage data flow between the host interface and the NAND channels. By optimizing the firmware and hardware pipeline, the controller delivers up to two point five million random input output operations per second alongside the fourteen gigabyte per second sequential read speeds. This combination suggests that the silicon has successfully optimized its internal algorithms to handle fragmented data access patterns efficiently. The transition from older fabrication processes to a six-nanometer node also allows for tighter transistor spacing, which improves signal integrity and reduces electrical resistance during high-frequency operations.

Why does the shift to DRAMless mainstream storage matter for modern computing?

DRAMless architectures have long been viewed as a compromise between cost and performance. Traditional solid-state drives rely on volatile system memory to maintain mapping tables that track where data physically resides on the flash chips. Removing that buffer forces the controller to calculate those locations on the fly, which historically introduced latency spikes during random read and write operations. The SM2524XT addresses this fundamental limitation through architectural innovation rather than brute force. The controller delivers up to two point five million random input output operations per second alongside the fourteen gigabyte per second sequential read speeds. This combination suggests that the silicon has successfully optimized its internal scheduling algorithms to handle fragmented data access patterns efficiently.

The broader industry implications extend beyond raw speed metrics. As personal computing devices continue to integrate more powerful processors and larger local memory pools, the storage subsystem must keep pace without draining battery life or generating excessive heat. A DRAMless design eliminates the power draw associated with maintaining volatile memory arrays. This efficiency gain becomes particularly relevant for mobile workstations and thin client systems where thermal constraints dictate performance ceilings. Furthermore, the removal of DRAM reduces manufacturing costs and simplifies supply chain dependencies. When mainstream drives can match the sequential throughput of previous generation high-end models, the performance gap between budget and premium storage categories narrows significantly. This democratization of speed allows system integrators to build more capable machines at accessible price points.

The PCIe five point zero x four interface further amplifies the benefits of this architectural shift. The protocol doubles the bandwidth available to storage devices compared to its predecessor, allowing the four-channel controller to push data at rates that previously required eight channels. This increased bandwidth capacity means that the storage subsystem will no longer throttle the processing capabilities of modern central processing units. As software applications become more demanding, the ability to move large datasets quickly between the processor and the storage medium becomes a critical determinant of overall system responsiveness. The SM2524XT positions itself at the intersection of this bandwidth expansion and architectural efficiency.

How does the architecture address the specific demands of local artificial intelligence workloads?

Local artificial intelligence processing has introduced a new set of storage requirements that differ sharply from traditional computing tasks. Large language models and complex agent systems rely heavily on a mechanism known as the key-value cache. This storage area retains previously processed data so the computational engine does not need to recalculate information for every new token. While this approach dramatically reduces processing overhead, it generates massive volumes of small, random, and latency-sensitive memory and storage accesses. When these workloads run on a personal computer with limited system memory, the storage subsystem often becomes the primary bottleneck. The SM2524XT was explicitly engineered to mitigate this specific performance penalty.

The controller incorporates a technology known as Separated Command Address routing. This architectural feature divides command and address traffic within the NAND interface, allowing the silicon to process both streams simultaneously rather than sequentially. By eliminating the serial processing delay, the system lowers latency and increases effective bandwidth. The result is more predictable performance during fragmented read and write operations that characterize artificial intelligence inference tasks. Nelson Duann, the senior vice president of Client and Automotive Storage Business at Silicon Motion, emphasized that sustained high throughput and low-latency data access have become critical factors for next-generation AI storage architectures. The design ensures that local agent workloads and on-device large language model operations maintain responsiveness without stalling. For readers tracking the broader ecosystem of AI-enabled hardware, the industry is simultaneously advancing processors and storage to support these demands, as seen in recent announcements regarding Acer Unveils Gaming Laptops and Streaming Handheld at Computex 2026.

The separation of command and address traffic is particularly valuable for edge computing environments. Devices that process data locally rather than sending it to remote servers require storage that can handle unpredictable workloads without degrading under pressure. The Separated Command Address technology and the six-nanometer process node make the controller suitable for applications where power efficiency and thermal management are just as important as speed. By maintaining predictable performance during heavy random access patterns, the controller prevents the stuttering and lag that typically occur when AI models attempt to retrieve cached context information. This stability is essential for multi-agent systems that require continuous data exchange between different computational modules.

What practical implications does this technology hold for the broader storage market?

The introduction of this controller signals a transition in how manufacturers will approach system storage in the coming years. Prototype drives utilizing the SM2524XT will be demonstrated at the upcoming Computex trade show, providing industry observers with their first hands-on look at the silicon in action. While actual consumer products will likely not reach the market until next year, the engineering roadmap is already clear. Storage manufacturers will increasingly prioritize latency stability and random input output performance over raw sequential numbers when designing drives for AI-enabled personal computers. The focus is shifting toward how quickly a system can retrieve small data fragments rather than how fast it can stream large files.

This architectural shift also benefits edge computing environments. Devices that process data locally rather than sending it to remote servers require storage that can handle unpredictable workloads without degrading under pressure. The Separated Command Address technology and the six-nanometer process node make the controller suitable for applications where power efficiency and thermal management are just as important as speed. System builders will need to adjust their motherboard layouts and power delivery specifications to accommodate the demands of PCIe five point zero x four interfaces. As the ecosystem matures, we can expect a wave of storage solutions that balance high performance with sustainable power consumption, ultimately enabling more capable local computing experiences without relying on cloud infrastructure.

The broader market will likely see a consolidation of storage tiers. Previously, consumers had to choose between affordable DRAMless drives with modest performance and expensive high-end models with dedicated memory buffers. The SM2524XT blurs that distinction by delivering high-end sequential speeds and robust random access capabilities within a DRAMless framework. This convergence simplifies inventory management for system integrators and provides consumers with clearer value propositions. As three-dimensional NAND technology continues to advance in density and speed, controllers like the SM2524XT will serve as the critical bridge that translates raw flash capabilities into usable system performance.

Conclusion

The trajectory of solid-state storage has always been driven by the need to bridge the gap between processing power and data access speed. The SM2524XT demonstrates that architectural refinement can achieve performance milestones previously reserved for complex multi-channel designs. By eliminating the DRAM buffer while simultaneously reducing latency for artificial intelligence workloads, the controller establishes a new baseline for mainstream systems. As local computing continues to evolve, storage technology will remain a critical determinant of overall system capability. The industry is moving toward a future where high-speed, AI-optimized storage is no longer a luxury but a fundamental requirement for everyday digital experiences.
