Plugable TBT-UDH2 Dual HDMI Thunderbolt 5 Dock Analysis

What is the Plugable TBT-UDH2 Docking Station?

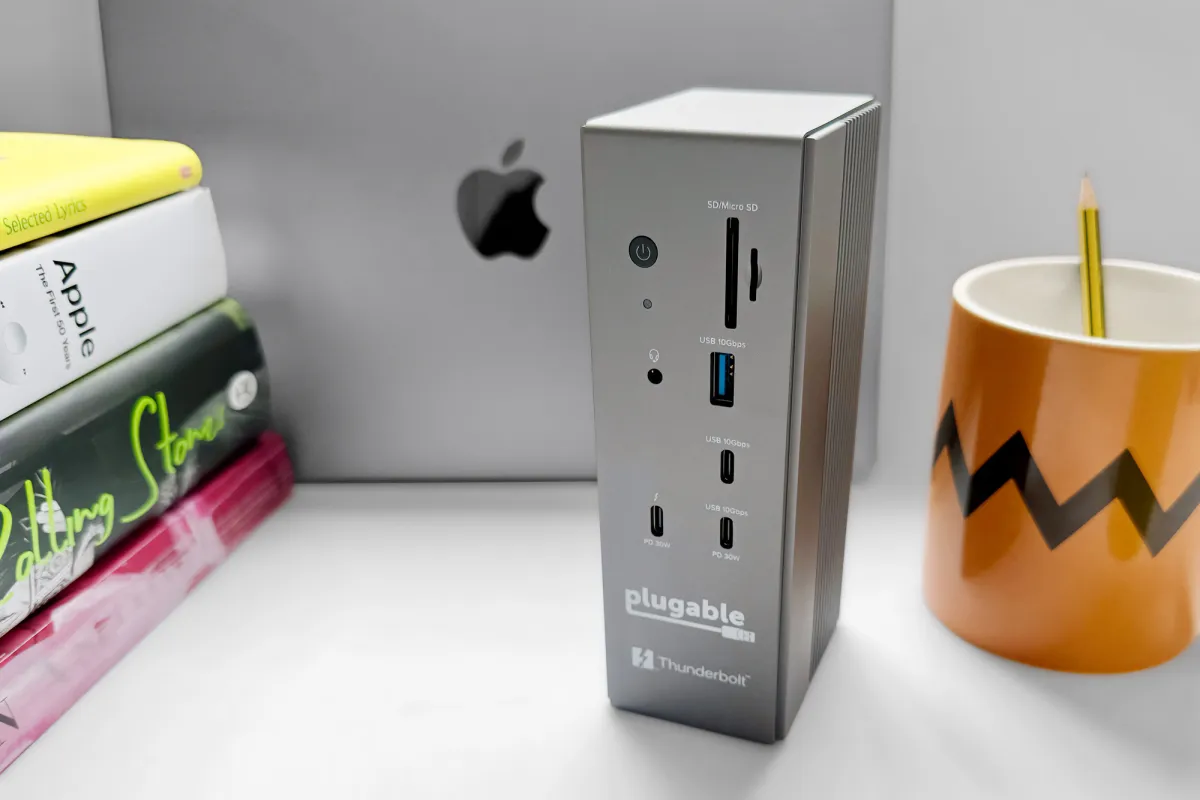

The device represents a specialized docking solution designed primarily for macOS environments. It integrates an upstream Thunderbolt 5 interface with a downstream expansion port while allocating two additional high-bandwidth channels to dedicated HDMI 2.1 outputs. This architectural choice prioritizes native video connectivity over additional Thunderbolt expansion slots. The chassis utilizes space gray aluminum and incorporates passive cooling grilles along the sides to maintain silent operation. Users can position the unit vertically or horizontally depending on desk configuration. The design also includes physical security mounting options for corporate environments.

How Does Dual HDMI Integration Change Mac Workflows?

Traditional docking stations typically rely on DisplayPort alt modes or Thunderbolt video routing, which often forces users to purchase separate adapter cables for HDMI monitors. This hardware approach eliminates that intermediate step by providing two native HDMI 2.1 ports. The integration simplifies cable management and reduces potential points of failure in professional setups. macOS operating systems historically lack Multi-Stream Transport support, which restricts how video signals distribute across multiple displays. By dedicating separate bandwidth channels to HDMI outputs, the dock circumvents these software limitations and ensures stable dual-monitor performance.

Display Capabilities Across M-Series Chips

Video output specifications vary significantly depending on the internal processor architecture. Systems equipped with M4 Max or M5 Max chips can drive dual 8K displays at sixty hertz or dual 4K displays at one hundred forty-four hertz. Pro and base M-series processors support dual 6K displays at sixty hertz or 4K at 144 hertz. Older M1 Pro and M1 Max models maintain dual 6K support but lack higher refresh rate options. Base M1 and M2 Macs remain limited to a single external display, making alternative docking solutions necessary for those configurations.

Why Does Thunderbolt 5 Bandwidth Matter for Peripherals?

Thunderbolt 5 introduces dynamic bandwidth allocation that adjusts based on connected devices. The upstream connection provides eighty gigabits per second of data throughput, while the downstream port offers the same baseline with potential boosts up to one hundred twenty gigabits per second. This architecture allows simultaneous high-speed data transfer and video transmission without bottlenecking. The technology builds upon decades of peripheral standardization, evolving from Mini DisplayPort connectors to the current universal USB-C form factor. The increased bandwidth ensures that storage arrays, network interfaces, and high-resolution displays operate concurrently without performance degradation.

Connectivity and Charging Architecture

The peripheral array includes nine downstream ports distributed across the front and rear panels. Two front-facing USB-C ports deliver thirty watts of power for rapid device charging. Additional data ports feature ten gigabit and five gigabit transfer speeds. The rear panel houses three five gigabit USB-C ports and two five gigabit USB-A ports. Storage professionals benefit from dual UHS-II card readers capable of three hundred twelve megabytes per second. A twenty point five gigabit Ethernet port provides stable wired networking, while a front-facing audio jack supports direct headphone output.

What Are the Practical Limitations for Mac Users?

The hardware design introduces specific constraints that prospective buyers must evaluate carefully. The absence of Multi-Stream Transport support means only two displays can function simultaneously, regardless of processor capability. Base M1 and M2 Macs cannot utilize the dual HDMI outputs effectively, restricting them to single external display configurations. Thunderbolt 3 equipped systems remain entirely incompatible with the dock. Availability currently focuses on North American markets, which may complicate international procurement. Users requiring extensive Thunderbolt daisy-chaining or additional downstream expansion ports should consider alternative docking architectures.

Market Positioning and Value Assessment

The pricing structure places the unit in the upper tier of Thunderbolt docking stations. Competing models often prioritize additional Thunderbolt expansion slots over native HDMI connectivity. The CalDigit TS5 series offers different charging profiles and higher price points, while budget alternatives sacrifice charging wattage and port density. The included one hundred eighty watt external power supply ensures sufficient headroom for laptop charging and peripheral operation. The design philosophy emphasizes convenience for HDMI-centric workflows rather than maximum expansion flexibility. This targeted approach justifies the premium for users who prioritize straightforward dual-monitor integration.

Historical Context of Peripheral Docking

The concept of docking stations emerged from the need to simplify complex workstation setups. Early iterations relied on proprietary connectors and parallel ports to transmit video and data signals. The transition to universal serial bus standards gradually unified peripheral communication. Thunderbolt technology later combined PCI Express data pathways with DisplayPort video routing into a single cable. This convergence allowed manufacturers to create compact hubs that could replace multiple legacy interfaces. The current generation of docks reflects this evolution by prioritizing high-bandwidth protocols and native display outputs.

Comparing HDMI 2.1 and DisplayPort Standards

DisplayPort has traditionally dominated the professional monitor market due to its superior refresh rate capabilities and adaptive sync support. HDMI 2.1 has largely closed this performance gap by introducing higher bandwidth ceilings and advanced color space support. Gamers and video professionals often prefer DisplayPort for its one hundred twenty hertz and higher refresh rate options. The inclusion of dual HDMI 2.1 ports addresses a practical need for users who rely on existing monitor inventory. This approach eliminates the need for active conversion adapters that can introduce latency or signal degradation.

Understanding Dynamic Bandwidth Allocation

Thunderbolt 5 represents a significant architectural shift compared to previous generations. The protocol utilizes a dynamic bandwidth allocation system that prioritizes traffic based on real-time demand. Base bandwidth remains fixed at eighty gigabits per second, but the standard allows for temporary boosts up to one hundred twenty gigabits per second when video or storage demands increase. This intelligent routing prevents bottlenecks that previously plagued multi-device workstations. The downstream port retains full Thunderbolt 5 compatibility, enabling users to connect high-performance external graphics enclosures or rapid storage arrays without compromising video output.

Power Delivery Mechanics and Thermal Design

Power delivery standards have evolved to support increasingly powerful mobile processors. The dock incorporates a one hundred forty watt power delivery 3.1 connection to the host computer. This specification ensures that even high-performance laptops receive adequate charging current while simultaneously driving external peripherals. The included one hundred eighty watt external power supply provides necessary overhead for sustained operation. Two front-facing thirty watt ports allow rapid charging of mobile devices without draining the main system capacity. This distributed charging architecture maintains stability during extended work sessions.

macOS Display Architecture Constraints

Apple operating systems handle display routing differently than Windows environments. The lack of Multi-Stream Transport support means that macOS cannot split a single video signal across multiple monitors through a single hub port. Dock manufacturers must allocate separate display pipelines to accommodate dual-screen configurations. The Plugable TBT-UDH2 dedicates two independent HDMI channels to bypass this software restriction. Users connecting via the downstream Thunderbolt port can add a third display on compatible M5 processors. This limitation remains a fundamental constraint of the macOS display architecture rather than a hardware deficiency.

Physical Construction and Workspace Integration

Thermal management in compact electronics requires careful engineering to prevent performance throttling. The dock utilizes a fanless design that relies on passive heat dissipation through its aluminum chassis. Grilles along the side panels facilitate natural airflow without generating audible noise. This silent operation proves valuable for recording studios, editing suites, and quiet office environments. The physical dimensions measure approximately five point nine by two by three inches. The lightweight construction allows flexible placement on any desk surface while maintaining structural rigidity during cable connection.

Conclusion

The docking station landscape continues to fragment as manufacturers balance bandwidth allocation, native interface support, and power delivery requirements. This particular model addresses a specific gap in the market by eliminating adapter dependency for dual HDMI setups. The hardware delivers robust performance for compatible Mac architectures while maintaining silent operation and compact dimensions. Users must carefully verify processor compatibility and display requirements before purchase. The device represents a pragmatic solution for professionals who value streamlined connectivity over maximum expansion flexibility.
