Plugable TBT-UDH2 Dual HDMI Thunderbolt 5 Dock Analysis

Modern professional workstations demand reliable peripheral connectivity without the clutter of proprietary adapters or bandwidth bottlenecks. The introduction of Thunderbolt 5 has fundamentally altered how docking stations manage data and video signals simultaneously. Manufacturers are now rethinking port allocation to accommodate high-resolution displays while maintaining robust power delivery standards. Plugable recently entered this evolving market with a specialized docking station designed specifically for Mac users who require native dual HDMI outputs alongside next-generation bandwidth capabilities.

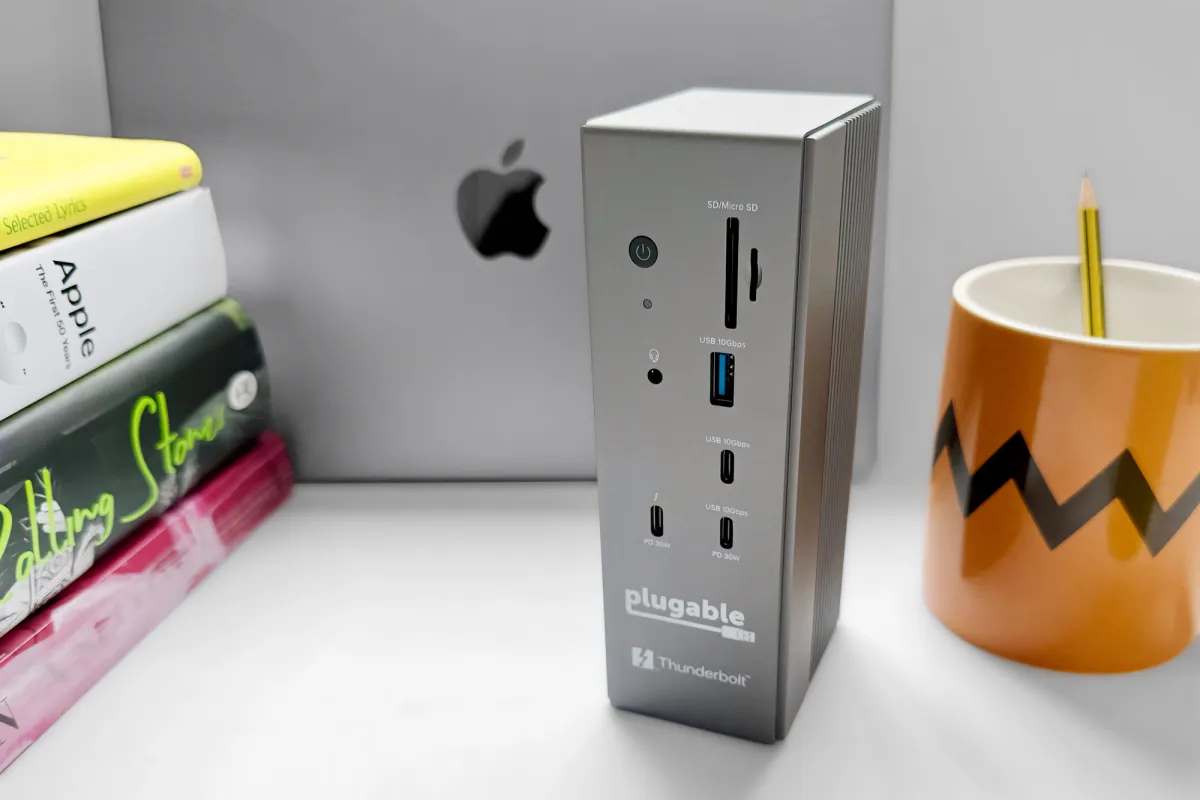

The Plugable TBT-UDH2 delivers dual HDMI 2.1 ports, Thunderbolt 5 connectivity, and extensive peripheral support in a fanless aluminum chassis. It targets Mac users needing native dual-monitor setups without adapters, offering up to 140W of host charging and nine downstream USB ports for comprehensive workstation integration. This specialized hardware addresses longstanding workflow bottlenecks by eliminating the need for DisplayPort adapters while maintaining robust power delivery standards across all connected devices.

What is the Plugable TBT-UDH2 docking station?

This device represents a deliberate shift away from traditional Thunderbolt reference designs that prioritize multiple downstream data ports over dedicated video outputs. The hardware features sixteen total connection points distributed across the front and rear panels. A single upstream Thunderbolt 5 port connects to the host computer while delivering up to one hundred forty watts of Power Delivery 3.1 (PD 3.1) charging. The architecture allocates two additional high-bandwidth channels specifically for dual HDMI 2.1 outputs rather than preserving extra Thunderbolt ports. This configuration directly addresses a longstanding friction point for Mac professionals who prefer direct HDMI connections over relying on DisplayPort adapters or third-party dongles.

Design and physical architecture

The chassis utilizes space gray aluminum to match contemporary Apple hardware while maintaining a compact footprint measuring approximately five point nine by two by three inches. Engineers omitted internal fans entirely, relying instead on passive thermal management through side grilles and the conductive properties of the metal enclosure. Users can position the unit vertically or horizontally depending on desk constraints. Security features include both standard K-slot and Kensington Nano slot compatibility for institutional environments. The external power supply weighs significantly more than the dock itself, providing necessary wattage headroom when the host laptop draws maximum charging current while other peripherals remain active.

How does Thunderbolt 5 change display connectivity?

Intel Thunderbolt technology originally combined PCI Express data pathways with DisplayPort video signals into a single cable interface. Early iterations utilized Mini DisplayPort connectors before transitioning to the universal USB-C form factor starting with version three. This technical foundation allowed docking stations to repurpose Thunderbolt ports for direct display connections. However, macOS lacks support for Multi-Stream Transport (MST) protocols that Windows systems utilize natively. Consequently, manufacturers must allocate separate video channels when connecting multiple monitors. The Plugable unit dedicates two independent data lanes exclusively to HDMI 2.1 outputs, ensuring each display receives full bandwidth without relying on MST daisy-chaining. This approach guarantees stable multi-monitor performance across all compatible Mac models while preserving one downstream Thunderbolt port for additional expansion or alternative video connections.

Display capabilities across Mac processor generations

External display support depends entirely on the silicon architecture within the host computer. Systems equipped with M4 Max or M5 Max processors can drive dual eightK displays at sixty hertz refresh rates or dual fourK monitors at one hundred forty-four hertz. Mid-tier configurations utilizing M4 Pro, M5 Pro, or earlier M2 and M3 series chips support dual sixK outputs at sixty hertz alongside fourK high-refresh-rate options. Base model M4 and M5 Macs also handle dual sixK resolutions but cannot sustain the higher refresh rates required by professional content creation workflows. Older hardware running base M1 or M2 processors remains restricted to a single external display regardless of dock capabilities. Users with legacy systems should evaluate DisplayLink-based alternatives that rely on software compression rather than direct bandwidth allocation.

Why does power delivery matter for modern workstations?

Modern high-performance laptops require substantial continuous wattage to maintain peak processor speeds during intensive tasks. The upstream Thunderbolt connection delivers up to one hundred forty watts directly to the host machine, ensuring that even sixteen-inch MacBook Pro models remain fully charged during extended docking sessions. An external one hundred eighty-watt power adapter supplies the dock and distributes remaining current across downstream ports. Two front-facing USB-C connections provide thirty watts each for rapid accessory charging. This configuration allows professionals to power mobile devices without drawing heavily from the primary laptop supply. The system dynamically balances power distribution, though heavy peripheral loads may reduce available wattage for connected phones or tablets during peak operation periods.

Port allocation and peripheral management

The remaining connectivity options include nine downstream data ports distributed across both panels. Front access features a ten-gigabit USB-C port with thirty-watt charging capability alongside a matching ten-gigabit USB-A connection. Both UHS-II Secure Digital (SD) and microSD card readers occupy prime front-facing positions to facilitate rapid media transfers at three hundred twelve megabytes per second. Rear connectivity comprises three additional five-gigabit USB-C ports, two five-gigabit USB-A connections, and a twenty-five gigabit Ethernet interface. The network adapter operates backward compatible with standard one-gigabit infrastructure while supporting future five-gigabit or ten-gigabit upgrades. A front-mounted audio jack provides convenient headphone access without requiring cable routing behind the desk setup.

How should users evaluate the pricing and market position?

The docking station retails at three hundred forty-nine dollars ninety-five cents within North American markets. This positioning places it near the premium tier of Thunderbolt peripherals while offering distinct advantages over competing models. Alternative docks from established manufacturers often charge higher prices for similar bandwidth capabilities but provide fewer dedicated video outputs or reduced charging wattage across downstream ports. Some competitors prioritize multiple Thunderbolt expansion slots at the expense of native HDMI connectivity, forcing users to purchase additional adapters that introduce potential signal degradation and desk clutter. The current market availability remains limited geographically, which may affect international procurement timelines. Professionals requiring immediate dual-monitor integration without adapter dependencies will find the port configuration justifies the initial investment despite the premium pricing structure.

Historical context of Thunderbolt docking evolution

Intel originally established reference designs for Thunderbolt docks that prioritized three downstream data ports alongside a single upstream connection. This architecture assumed users would rely on DisplayPort native outputs or purchase separate adapters for HDMI monitors. As display technology advanced, the industry recognized that dedicated video channels reduced latency and eliminated adapter-related signal conversion errors. The Plugable approach abandons the traditional multi-Thunderbolt layout in favor of fixed HDMI infrastructure. This strategic pivot acknowledges that modern professionals prioritize plug-and-play reliability over maximum expansion flexibility. The trade-off reflects a broader industry trend toward specialized hardware that solves specific workflow problems rather than attempting universal compatibility through excessive port counts.

macOS display architecture and Multi-Stream Transport limitations

Operating system constraints fundamentally shape how docking stations allocate video bandwidth across multiple monitors. Windows environments natively support Multi-Stream Transport protocols that allow a single Thunderbolt connection to drive several displays through daisy-chaining or hub distribution. macOS deliberately restricts this functionality, requiring each external monitor to receive an independent video signal path from the host processor. Dock manufacturers must therefore dedicate separate internal data lanes for every connected display. The dual HDMI configuration on this unit ensures that both monitors operate simultaneously without software-based frame buffering or compression artifacts. This hardware-level separation guarantees consistent refresh rates and color accuracy across professional creative workflows.

Power delivery dynamics and thermal management

High-wattage charging capabilities require careful electrical engineering to prevent voltage drops during peak usage periods. The external one hundred eighty-watt power supply maintains stable output even when the host laptop consumes maximum current alongside active peripheral loads. Internal circuitry dynamically redistributes remaining wattage across downstream ports, ensuring that fast-charging accessories receive consistent power without interrupting data transmission. Fanless operation depends on aluminum chassis conductivity and precisely calculated airflow channels along the enclosure sides. This passive cooling strategy eliminates mechanical failure points while maintaining quiet operation in shared workspaces. Users should verify their local electrical infrastructure supports continuous high-wattage draw when deploying multiple high-power devices simultaneously.

Network connectivity and storage throughput considerations

Modern professional workflows demand rapid file transfers and stable network connections to support cloud-based collaboration tools. The twenty-five gigabit Ethernet interface provides substantial bandwidth headroom for large media files, virtual machines, and high-resolution video editing projects. Users operating on standard one-gigabit networks will still experience reliable connectivity while benefiting from future-proof hardware compatibility. Dual UHS-II card readers accelerate raw media ingestion by delivering three hundred twelve megabytes per second directly to the host system. This speed prevents storage bottlenecks during intensive photography or cinematography workflows. The front-facing placement minimizes cable management complexity and allows quick access for field professionals who frequently swap memory cards between camera bodies and workstations.

Market positioning and competitive analysis

The premium pricing structure reflects the specialized nature of dual HDMI infrastructure combined with next-generation Thunderbolt bandwidth. Competing models often reduce costs by eliminating dedicated video outputs or lowering downstream charging wattage. Some alternatives prioritize multiple Thunderbolt expansion slots, which appeals to developers and engineers who require extensive peripheral connectivity but forces video professionals to purchase additional adapters. The current North American availability limits immediate global adoption, though distribution channels typically expand within standard hardware release cycles. Professionals evaluating long-term workstation investments should consider how display technology standards evolve over the next three years. Hardware that supports dual eightK outputs today will remain relevant as content creation tools increasingly demand higher resolution workflows and faster data transfer rates.

Workflow integration for creative professionals

Video editors and graphic designers require consistent color accuracy and frame-perfect synchronization across multiple monitors. The dual HDMI 2.1 implementation eliminates signal conversion delays that occur when routing Thunderbolt data through DisplayPort adapters. Direct digital transmission preserves native refresh rates and reduces input lag during real-time editing sessions. Front-accessible controls allow users to power down the dock without interrupting active host processes, which protects battery health during extended idle periods. The compact footprint leaves ample desk space for drawing tablets, audio interfaces, and reference materials. This spatial efficiency becomes increasingly valuable as professional workspaces adapt to hybrid office environments requiring rapid setup and breakdown capabilities.

Future compatibility and upgrade pathways

Hardware investments should align with anticipated technology shifts rather than current market conditions alone. Thunderbolt 5 backward compatibility ensures that existing USB-C peripherals function correctly while preparing for future bandwidth demands. Display standards continue evolving toward higher pixel densities and faster refresh rates, making HDMI 2.1 support essential for long-term relevance. The inclusion of a downstream expansion port allows users to add specialized hardware as workflow requirements change over time. Professionals should evaluate how their current monitor inventory matches the dock's native outputs before committing to the purchase. Systems relying on legacy DisplayPort connections will still function through standard adapter cables, though direct HDMI integration remains the optimal configuration for stability and performance.

Enterprise deployment considerations

Corporate IT departments require standardized hardware that simplifies device management across diverse employee workstations. The K-slot and Kensington Nano security features enable physical tethering in high-traffic office environments, reducing theft risk for expensive computing equipment. Unified power delivery specifications allow facilities to stock a single external adapter type rather than maintaining multiple proprietary charging bricks. Network administrators benefit from the backward-compatible Ethernet interface, which integrates seamlessly with existing infrastructure while supporting future bandwidth upgrades. Standardized port layouts reduce training overhead when deploying new hardware across different departments. The fanless design also minimizes acoustic noise in open-plan offices and quiet collaborative spaces where traditional active cooling systems might cause distractions.

Performance validation and real-world testing

Independent evaluations confirm that three simultaneous fourK displays at one hundred forty-four hertz operate reliably on compatible M5 Pro hardware. The downstream Thunderbolt port successfully manages additional video connections without compromising primary display stability. Dual eightK configurations remain theoretical for future silicon generations, though current architecture provides sufficient headroom for gradual upgrades. Plugable has not yet verified maximum daisy-chained monitor counts in laboratory conditions, leaving practical limits to user experimentation. Early adopters should verify their specific host processor capabilities before expecting full multi-monitor functionality. The hardware demonstrates consistent performance across standard professional workloads without thermal throttling or bandwidth congestion during extended usage periods.

Conclusion

The evolution of docking station architecture reflects shifting professional requirements for streamlined connectivity and reliable performance. By prioritizing native HDMI outputs alongside next-generation bandwidth standards, this hardware addresses specific workflow bottlenecks that previous generations overlooked. Mac users operating within high-resolution environments will benefit from the dedicated video channels and robust power distribution capabilities. The decision to allocate separate data lanes rather than rely on software compression demonstrates a commitment to stable multi-display operation. Future iterations may expand regional availability or adjust port configurations based on emerging display standards, but the current design establishes a clear reference point for professional docking solutions.
