Plugable TBT-UDH2 Review: Dual HDMI Thunderbolt 5 Docking Station

The evolution of desktop computing has consistently revolved around connectivity. As personal computers shrink in physical footprint, the demand for robust external expansion has only intensified. Modern workstations require seamless integration between high-performance processors and external peripherals. Manufacturers have responded by developing sophisticated docking stations that bridge the gap between compact hardware and professional-grade displays. The latest iteration of this technology prioritizes native video outputs and expanded data pathways over proprietary adapters.

The Plugable TBT-UDH2 docking station delivers dual HDMI 2.1 outputs, Thunderbolt 5 bandwidth, and extensive peripheral connectivity for Mac users who require native multi-monitor support without additional adapters. This hardware targets professionals needing reliable display expansion, fast charging capabilities, and high-speed data transfer, though it remains incompatible with base M1 and M2 Mac models.

What is the Plugable TBT-UDH2 Docking Station?

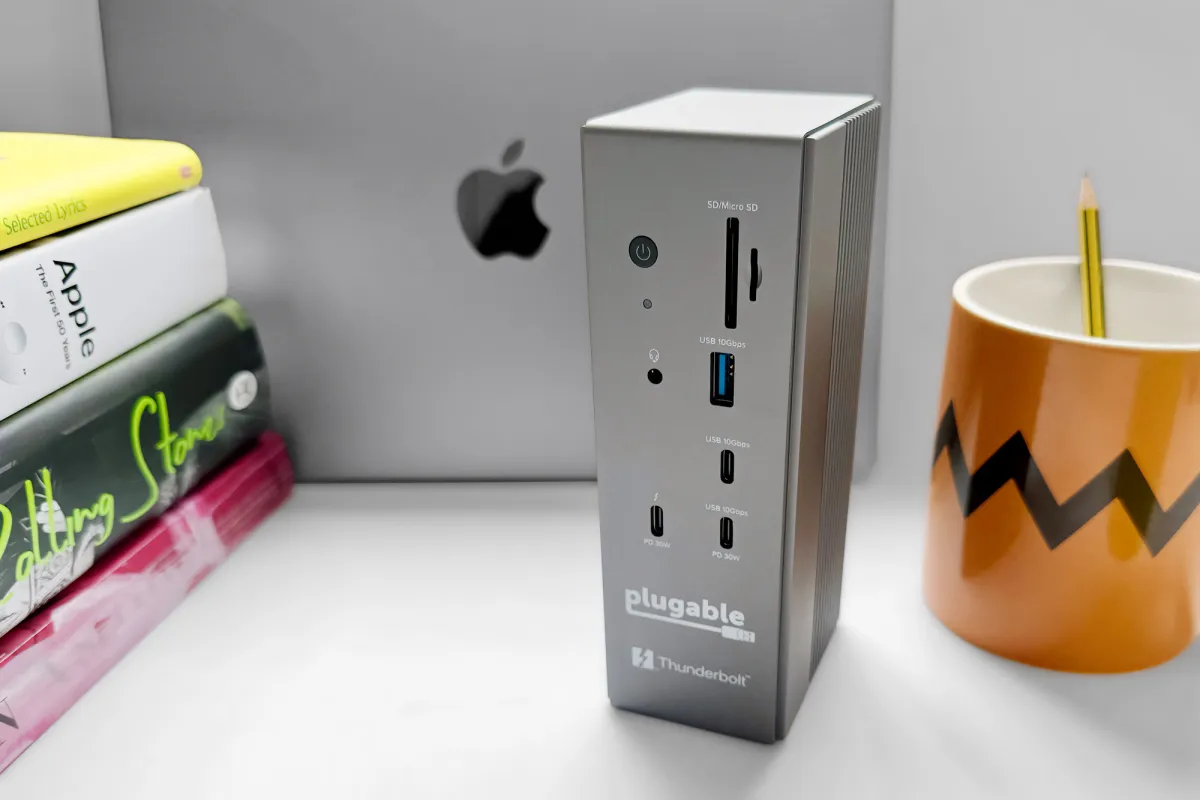

The Plugable TBT-UDH2 represents a deliberate engineering choice to prioritize native video connectivity over traditional Thunderbolt expansion. This sixteen-port docking station features a single upstream Thunderbolt 5 interface that delivers eighty gigabits per second of data throughput alongside one hundred forty watts of power delivery. The device also incorporates a downstream Thunderbolt 5 port that maintains the same eighty gigabit bandwidth while providing thirty watts of dedicated charging capability. Rather than allocating additional bandwidth to extra Thunderbolt ports, the manufacturer dedicated those data pathways to two HDMI 2.1 outputs. This architectural decision directly addresses a longstanding friction point for Mac professionals who rely on HDMI monitors. The hardware targets users who require dual external displays without navigating the inconvenience of DisplayPort to HDMI conversion cables. Base M1 and M2 Mac models remain excluded from compatibility due to their internal display controller limitations. The docking station operates effectively with Thunderbolt 4 equipped hardware, ensuring backward compatibility while preparing users for future silicon upgrades.

Thunderbolt technology originally emerged from a collaboration between Intel and Apple to unify peripheral connectivity. Early iterations utilized the Mini DisplayPort connector before migrating to the universal USB-C form factor in the third generation. The fifth generation doubles the base data bandwidth to eighty gigabits per second while introducing dynamic bandwidth allocation. This allocation mechanism allows the system to temporarily shift bandwidth toward video or data operations based on real-time demand. The downstream Thunderbolt 5 port on this docking station supports up to one hundred twenty gigabits per second through bandwidth boosting. This extra capacity enables users to connect additional displays or high-speed storage arrays without bottlenecking the primary connection. The hardware also provides nine downstream USB ports that accommodate various peripheral types. Two front-facing USB-C ports deliver thirty watts of charging power, which matches the fast-charging requirements of modern mobile devices. The remaining ports distribute data at ten gigabits per second or five gigabits per second. This configuration eliminates the need for separate charging bricks and reduces cable clutter on professional workstations.

How Does the Dual HDMI Architecture Function on macOS?

macOS operates with a fundamentally different display management architecture compared to Windows operating systems. The operating system does not support Multi-Stream Transport, which typically allows a single cable to carry multiple independent video signals. Consequently, docking station manufacturers must allocate dedicated data lanes for each external display. The Plugable TBT-UDH2 utilizes two separate HDMI 2.1 ports to bypass this limitation entirely. Display performance scales directly with the installed silicon. Systems equipped with M4 Max or M5 Max processors can drive dual eight thousand by four thousand displays at sixty hertz, or dual four thousand by two thousand displays at one hundred forty-four hertz. M4 Pro, M5 Pro, M2 Pro, M3 Pro, and M3 Max configurations support dual six thousand by three thousand eight hundred forty displays at sixty hertz. Base M4 and M5 Macs share this capability but cannot reach the one hundred forty-four hertz refresh rate. Older M1 Pro and M1 Max machines support dual six thousand displays but lack the bandwidth for higher refresh rates. Users with base M1 or M2 Macs will find the hardware incompatible for dual displays, as those processors only support a single six thousand display output.

Display Capability and Chipset Limitations

Understanding display limitations requires examining how Apple manages external video pipelines. The macOS display stack assigns specific display controllers to each processor tier. High-end silicon includes multiple independent display engines that can drive multiple high-resolution panels simultaneously. The dual HDMI 2.1 ports on this docking station leverage those independent engines to maintain signal integrity. HDMI 2.1 has largely caught up with DisplayPort in terms of capability, although gamers and top-end video professionals might still prefer DisplayPort as it offers up to 240Hz refresh rates for 4K displays, while HDMI is limited to 120Hz. The docking station supports dual 8K/60Hz or 4K/144Hz depending on the Mac model. Only two displays may be used at a time through the HDMI ports. A three-display setup with an M5 Pro or M5 Max would consist of two HDMI displays plus one USB-C DP Alt Mode or Thunderbolt display connected via the front downstream Thunderbolt 5 port. In tests, three 4K 144Hz HDR displays have been proved to work simultaneously. The M5 Max theoretically supports four displays with two HDMI displays plus two Thunderbolt displays that are connected in series to each other, though neither the manufacturer nor independent reviewers have tested this in practice. Mac users who prioritize native HDMI connectivity will find the tradeoff worthwhile, while those requiring maximum Thunderbolt expansion should consider alternative docking solutions. The hardware serves as a functional bridge between compact Macintosh systems and professional-grade external equipment.

Why Does Thunderbolt 5 Bandwidth Matter for Peripheral Expansion?

Thunderbolt technology combines PCI Express data pathways with DisplayPort video signals into a single physical connector. The fifth generation of this protocol doubles the base bandwidth to eighty gigabits per second while introducing dynamic bandwidth allocation. This allocation mechanism allows the system to temporarily shift bandwidth toward video or data operations based on real-time demand. The downstream Thunderbolt 5 port on this docking station supports up to one hundred twenty gigabits per second through bandwidth boosting. This extra capacity enables users to connect additional displays or high-speed storage arrays without bottlenecking the primary connection. The hardware also provides nine downstream USB ports that accommodate various peripheral types. Two front-facing USB-C ports deliver thirty watts of charging power, which matches the fast-charging requirements of modern mobile devices. The remaining ports distribute data at ten gigabits per second or five gigabits per second. This configuration eliminates the need for separate charging bricks and reduces cable clutter on professional workstations. The docking station competes directly with other high-end expansion hardware, though it deliberately trades extra Thunderbolt ports for native HDMI connectivity.

Peripheral expansion has become a critical consideration for modern computing workflows. Professionals who manage large media libraries, compile code, or process scientific data require consistent high-speed data transfer. The UHS-II SD card reader and microSD card reader on this docking station operate at three hundred twelve megabytes per second. This speed matches the maximum theoretical throughput of UHS-II memory cards, ensuring that photographers and video editors can offload footage without waiting for lengthy transfers. The twenty-five gigabit Ethernet controller provides stable wired network access, operating at two and a half times the speed of standard Gigabit Ethernet. If a network supports higher speeds, the controller remains compatible with five gigabit and ten gigabit standards. The external power supply delivers one hundred eighty watts, ensuring sufficient headroom for laptop charging and peripheral operation. Mac users who prioritize native HDMI connectivity will find the tradeoff worthwhile, while those requiring maximum Thunderbolt expansion should consider alternative docking solutions.

Charging Power and Port Allocation

Power delivery management distinguishes premium docking stations from budget alternatives. The upstream Thunderbolt 5 port supplies up to one hundred forty watts of Power Delivery 3.1, which is enough to fast-charge even the sixteen-inch MacBook Pro. When operating at maximum capacity, the power supply leaves forty watts remaining for other ports. In most scenarios the laptop will be taking a lot less than 140W so both 30W charging ports should be able to cope just fine. The front-facing thirty-watt USB-C ports provide rapid charging for iPhones and iPads, eliminating the need for separate wall adapters. This centralized power distribution reduces desk clutter and simplifies cable management. The docking station also includes a power button that allows users to切断 power to the MacBook battery when the device is not in use. Apple battery technology handles charging management efficiently, but the manual override provides peace of mind for users who leave their laptops connected for extended periods. The combination of high-speed data ports, fast card readers, and robust power delivery creates a comprehensive workstation hub.

What Are the Practical Tradeoffs for Mac Users?

Every docking station configuration requires compromises based on the target demographic. The Plugable TBT-UDH2 sacrifices two downstream Thunderbolt 5 ports to accommodate dual HDMI outputs. Users who rely heavily on Thunderbolt daisy-chaining or require multiple high-bandwidth peripheral connections may find this limitation restrictive. The hardware also carries a premium price point of three hundred forty-nine dollars in North American markets. This cost reflects the inclusion of dual HDMI 2.1 ports, fast UHS-II card readers, and a twenty-five gigabit Ethernet controller. The physical chassis measures five point nine by two by three inches and weighs slightly over two pounds. The space gray aluminum enclosure operates without internal fans, relying on passive thermal dissipation through side grilles. Users can orient the device vertically or horizontally depending on desk space. Physical security features include both a standard K-slot and a Kensington Nano slot for cable locking mechanisms. The external power supply delivers one hundred eighty watts, ensuring sufficient headroom for laptop charging and peripheral operation. Mac users who prioritize native HDMI connectivity will find the tradeoff worthwhile, while those requiring maximum Thunderbolt expansion should consider alternative docking solutions.

Design, Thermal Management, and Physical Security

Thermal management plays a crucial role in docking station longevity. The Plugable TBT-UDH2 utilizes a fanless design that relies on the aluminum chassis to dissipate heat. Grilles along the sides facilitate airflow, preventing thermal throttling during extended use. The compact footprint allows the device to sit neatly beside a laptop or monitor stand. The vertical orientation option saves desk space, while the horizontal placement provides a stable base for connected cables. The inclusion of both K-slot and Kensington Nano slot compatibility ensures that the hardware meets enterprise security standards. Organizations can secure the docking station to desks or workstations using standard anti-theft cables. The space gray finish matches Apple's professional hardware lineup, maintaining a cohesive aesthetic in mixed-device environments. The external power supply connects via a dedicated barrel jack, keeping the docking station's front and rear ports clear for daily use. This thoughtful design approach balances functionality, durability, and visual integration.

The docking station market continues to evolve as display standards and processor capabilities advance. Native HDMI integration removes a persistent barrier for professionals who manage mixed monitor environments. The decision to allocate bandwidth toward dual video outputs rather than additional Thunderbolt ports reflects a clear understanding of modern workflow requirements. macOS display architecture will likely continue to influence how manufacturers design expansion hardware. Users who invest in this docking station gain immediate access to high-resolution displays, fast charging, and extensive peripheral support. The hardware serves as a functional bridge between compact Macintosh systems and professional-grade external equipment. Future silicon generations will likely expand display capabilities further, but the current architecture already addresses the core needs of modern workstation setups.
