TetraMem Achieves 22nm Analog In-Memory Computing Milestone

The semiconductor industry stands at a critical juncture where traditional scaling strategies are meeting fundamental physical limits. As computational demands for artificial intelligence continue to expand exponentially, engineers are exploring alternative architectures that move beyond conventional processing paradigms. A recent development from Silicon Valley semiconductor firm TetraMem Inc. highlights this ongoing shift toward specialized hardware solutions. The company recently confirmed the successful tape-out, manufacturing, and initial silicon validation of its MLX200 platform. This milestone represents a tangible step forward in the development of analog in-memory computing systems.

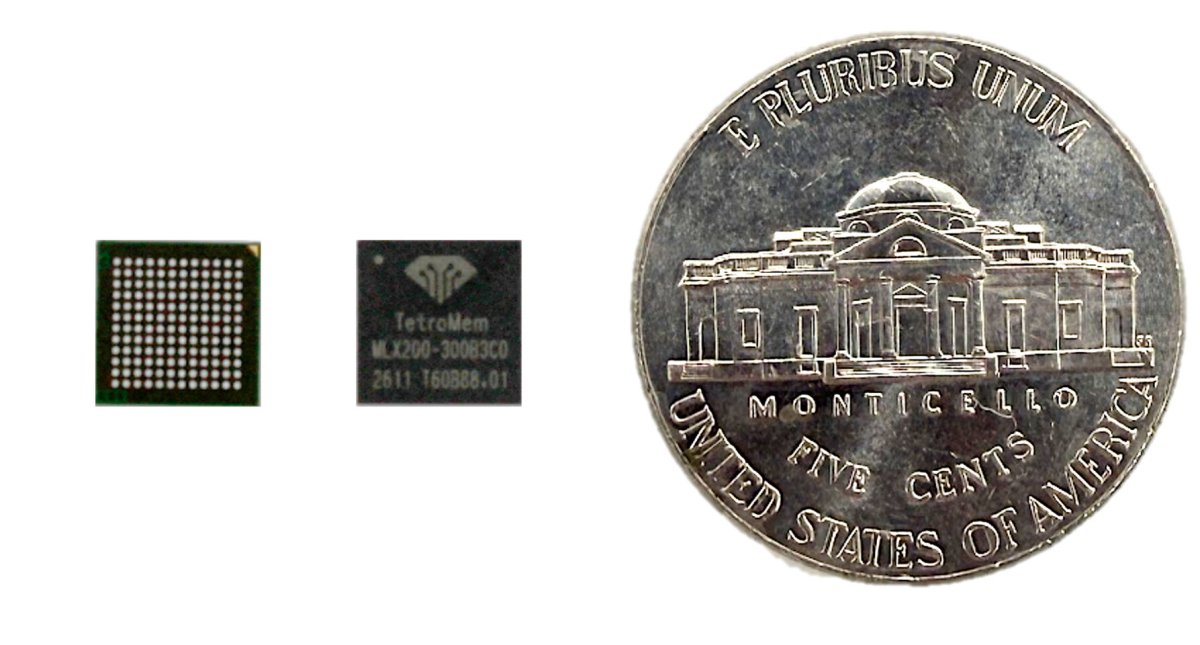

TetraMem Inc. has successfully completed the tape-out, manufacturing, and initial silicon validation of its MLX200 platform. This system-on-chip utilizes a 22 nanometer process to deliver multi-level resistive random-access memory for analog in-memory computing. The achievement marks a significant progression in specialized hardware designed to address computational bottlenecks in modern artificial intelligence applications.

What is Analog In-Memory Computing?

Traditional computer architecture relies on a strict separation between processing units and memory storage. Data must travel back and forth between these distinct components, creating latency and consuming substantial electrical power. This architectural model, known as the Von Neumann architecture, has served the industry well for decades. However, the exponential growth of machine learning workloads has exposed significant inefficiencies in this design. Analog in-memory computing addresses these limitations by performing calculations directly within the memory array itself. Resistive random-access memory serves as the foundational technology for this approach. The material properties of the memory cells allow electrical signals to be processed without constant conversion between analog and digital formats. This fundamental shift reduces energy consumption and increases throughput for specific computational tasks. The technology does not replace general-purpose processors but rather complements them by handling highly parallel mathematical operations. Engineers view this architecture as a necessary evolution for next-generation artificial intelligence hardware.

Why Does the 22 Nanometer Process Matter?

Semiconductor manufacturing nodes dictate the physical dimensions of transistors and interconnects on a silicon die. The 22 nanometer process represents a mature manufacturing stage that balances performance, power efficiency, and production yield. Moving a specialized architecture to this specific node requires careful optimization of both analog circuitry and digital control logic. Analog circuits are particularly sensitive to process variations and manufacturing tolerances. Achieving stability at this node demonstrates significant engineering precision. The choice of a mature process also suggests a focus on cost-effective production rather than chasing the smallest possible feature sizes. This strategic decision aligns with the broader industry trend of prioritizing functional efficiency over raw transistor density. Companies developing specialized accelerators often select established nodes to ensure reliable supply chains and predictable manufacturing outcomes. The successful validation of the MLX200 platform at this node confirms that the design meets strict performance requirements.

The Architecture of Multi-Level RRAM

Resistive random-access memory operates by changing the electrical resistance of a dielectric material through applied voltage. Multi-level capability allows each memory cell to store more than one bit of information. This is achieved by precisely controlling the resistance state across a continuous spectrum rather than relying on simple binary thresholds. The ability to represent multiple states within a single cell significantly increases data density without increasing the physical footprint. In the context of analog computing, these resistance states directly correspond to synaptic weights in neural network models. The hardware naturally performs matrix multiplication by applying voltages and measuring resulting currents across the memory array. This physical correspondence between electrical behavior and mathematical operations eliminates the need for complex digital arithmetic units. The design requires sophisticated peripheral circuitry to manage programming, reading, and error correction. Engineers must carefully calibrate the analog signals to maintain accuracy across temperature variations and device aging. The successful integration of these components into a single system-on-chip represents a substantial technical achievement.

Implications for Edge Computing and Artificial Intelligence

The deployment of artificial intelligence models has shifted from centralized data centers to distributed edge devices. Edge computing requires hardware that can process data locally while operating within strict power and thermal constraints. Traditional digital processors struggle to deliver the necessary performance per watt for continuous inference tasks. Analog in-memory computing architectures offer a compelling alternative for these demanding environments. The reduced data movement inherent in this design directly translates to lower power consumption. Devices equipped with such specialized silicon can run complex machine learning models without relying on cloud connectivity. This capability is particularly valuable for applications requiring real-time responsiveness and enhanced privacy. The technology also supports continuous learning scenarios where models must adapt to new data streams efficiently. As semiconductor manufacturers explore post-silicon computing paradigms, analog architectures will likely play a central role in specialized accelerators. The industry continues to evaluate how these systems integrate with existing digital infrastructure.

The Manufacturing and Validation Process

Bringing a new semiconductor design to silicon requires a rigorous sequence of engineering phases. Tape-out marks the final stage of design completion where the layout data is prepared for fabrication. The manufacturing phase involves depositing layers of materials and patterning them through photolithography. Initial silicon validation then tests the fabricated chips for functional correctness and performance characteristics. Engineers measure key parameters such as power consumption, signal integrity, and computational accuracy. This validation stage identifies any design flaws before mass production begins. The successful completion of these phases for the MLX200 platform indicates that the design meets its specifications. It also demonstrates the maturity of the underlying analog circuit techniques. Future iterations will likely focus on optimizing the process window and improving manufacturing yields. The validation results provide critical data for refining subsequent design generations.

The Broader Context of Semiconductor Innovation

The semiconductor industry has historically relied on continuous scaling to drive performance improvements. As transistors approach atomic scales, traditional scaling becomes increasingly difficult and expensive. Researchers are now exploring alternative approaches to maintain computational progress. Specialized architectures and advanced packaging techniques are becoming essential components of this strategy. Analog in-memory computing represents one of several promising directions for overcoming current limitations. The technology complements other innovations in chip design and system integration. Industry participants continue to invest in research and development to refine these concepts. The successful validation of platforms like the MLX200 demonstrates that analog computing is transitioning from theoretical research to practical implementation. This progression will likely accelerate the development of more efficient AI hardware. The long-term impact on computing infrastructure will depend on continued engineering advancements and market adoption.

Future Trajectories for Analog Hardware Development

The commercial viability of analog in-memory computing depends on sustained engineering progress and ecosystem support. Manufacturers must continue to improve the accuracy and reliability of analog circuits across different process nodes. Software tools and compilers need to adapt to the unique characteristics of these specialized architectures. Developers will require new programming models that can efficiently map algorithms to the underlying hardware. The industry is currently working on standardizing interfaces to facilitate integration with existing digital systems. Collaboration between hardware designers and software engineers will be essential for widespread adoption. As computational demands continue to grow, the role of specialized accelerators will expand beyond niche applications. The successful validation of the MLX200 platform provides a foundation for these future developments. Continued investment in this area will shape the next generation of computing infrastructure.

The Path Forward for Specialized Silicon

The semiconductor landscape is undergoing a fundamental transformation driven by shifting computational requirements. Traditional general-purpose processors are no longer sufficient for the most demanding artificial intelligence workloads. Specialized silicon architectures will increasingly dominate the market for high-efficiency computing. The successful validation of the MLX200 platform underscores the growing maturity of analog in-memory computing technologies. Engineers and researchers will continue to refine these systems to meet evolving performance standards. The industry must balance innovation with manufacturing practicality to ensure sustainable growth. Future developments will likely focus on improving accuracy, expanding compatibility, and reducing production costs. The long-term success of this approach depends on coordinated efforts across the entire technology ecosystem. Stakeholders must work together to establish standards and foster collaboration. The journey toward next-generation computing infrastructure is well underway.
