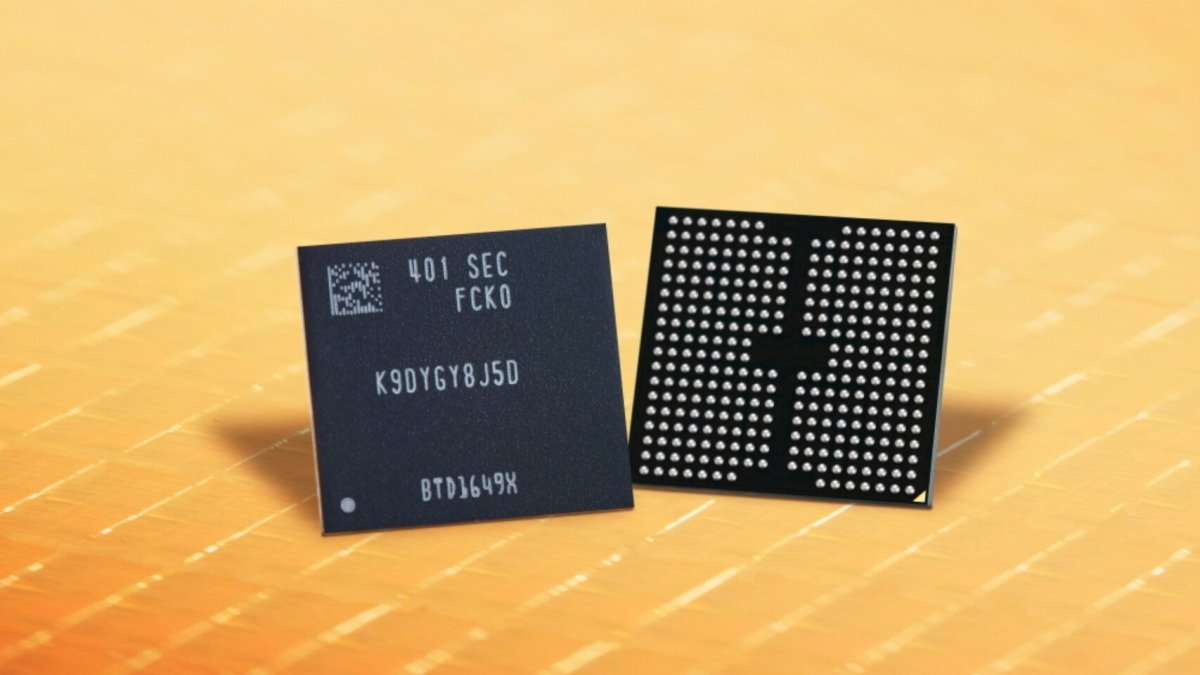

Samsung Stacks Two 450-Layer V-NAND Chips Into a 900-Layer Module

The relentless pursuit of higher storage density has driven semiconductor manufacturers to explore increasingly complex fabrication techniques. As traditional scaling methods reach their physical limits, the industry has shifted its focus toward three-dimensional architectures that pack more memory cells into the same footprint. This transition marks a fundamental change in how data storage is engineered, moving away from simple miniaturization toward vertical expansion.

What is the significance of stacking two 450-layer V-NAND modules?

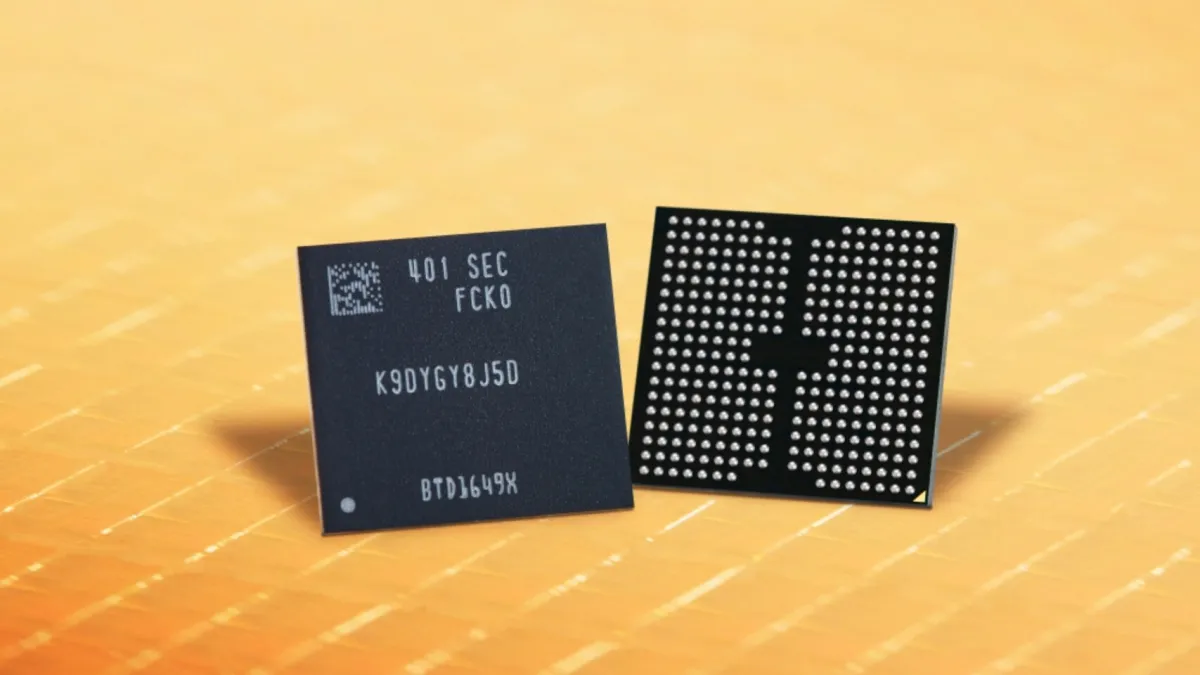

The integration of separate memory dies into a unified package represents a strategic response to the physical boundaries of semiconductor fabrication. Building a single chip with one thousand vertical layers requires precise alignment and uniform etching across a massive structure. Any minor defect during the deposition process can compromise the entire wafer, leading to unacceptable yield rates. By dividing the architecture into two distinct 450-layer components, engineers can isolate manufacturing variables and improve overall production efficiency.

This hybrid approach allows manufacturers to maintain the performance benefits of vertical scaling while bypassing the structural limitations of monolithic designs. Each 450-layer die undergoes a controlled fabrication cycle that maximizes the number of functional memory cells. The subsequent bonding process connects these independent units through advanced interconnect technologies, creating a continuous storage surface that behaves like a single high-density drive.

The resulting module delivers substantial capacity gains without demanding a complete overhaul of existing fabrication infrastructure. Data centers and enterprise storage arrays benefit from this incremental yet meaningful increase in density. Higher capacity per drive reduces the physical footprint required for large-scale deployments, which directly lowers power consumption and cooling requirements.

Why does vertical NAND architecture matter in modern storage?

Traditional planar NAND flash technology relied on shrinking transistor dimensions to increase storage capacity. As feature sizes approached the atomic scale, quantum tunneling effects began to degrade data retention and increase power consumption. The industry recognized that continuing to shrink two-dimensional layouts would eventually yield diminishing returns. Vertical NAND architecture emerged as a necessary evolution, stacking memory cells atop one another to bypass planar scaling limits.

Each additional layer in a V-NAND structure multiplies the storage density without expanding the chip footprint. This vertical expansion allows manufacturers to pack more bits into the same silicon area, effectively extending the useful life of existing design rules. The architecture also improves energy efficiency because shorter vertical channels reduce the voltage required to move electrons between cells.

Modern storage systems depend heavily on this density progression to meet growing data demands. Cloud computing, artificial intelligence workloads, and high-resolution media production generate petabytes of information daily. Vertical scaling ensures that storage infrastructure can keep pace with these requirements without requiring proportional increases in physical hardware.

The transition to high-layer-count V-NAND also influences the broader semiconductor supply chain. Equipment manufacturers must develop new deposition tools capable of handling taller structures with extreme precision. Material scientists continue to refine the dielectric layers and charge-trapping films that enable reliable operation across thousands of stacked levels.

How does advanced packaging solve manufacturing bottlenecks?

Semiconductor fabrication faces inherent constraints when pushing layer counts beyond established thresholds. The mechanical stress introduced during the deposition of ultra-thin films increases as the structure grows taller. Thermal expansion mismatches between different material layers can cause warping or cracking, which ruins the wafer before it reaches the testing phase. These physical realities make monolithic thousand-layer chips increasingly difficult to produce at scale.

Advanced packaging techniques provide a practical workaround by decoupling the fabrication and assembly stages. Engineers can produce multiple 450-layer dies using optimized processes tailored to that specific height. Each die undergoes rigorous testing before being selected for integration, ensuring that only functional components proceed to the bonding stage. This modular approach dramatically improves yield rates compared to attempting a single monolithic structure.

The interconnect technology used to join these separate dies has evolved significantly to support high-speed data transfer. Micro-bumps, through-silicon vias, and hybrid bonding methods create reliable pathways between the stacked components. Signal integrity remains intact despite the physical separation, allowing the combined module to operate as a cohesive storage unit.

Packaging also enables greater flexibility in product development. Manufacturers can mix and match dies from different production runs to optimize performance characteristics. This adaptability reduces downtime when specific fabrication steps encounter temporary delays. The industry continues to refine these assembly methods to support even higher layer counts in future generations.

What are the practical implications for data centers and consumer devices?

Enterprise storage systems require predictable performance and high reliability to maintain operational continuity. The hybrid stacking approach delivers increased capacity while preserving the endurance metrics that critical workloads demand. Data centers can deploy fewer physical drives to achieve the same storage totals, which simplifies rack management and reduces infrastructure costs.

Power efficiency remains a primary concern for large-scale computing facilities. Higher density storage reduces the number of active components required to handle the same data volume. This reduction directly translates to lower energy consumption and decreased heat output, both of which are critical for maintaining optimal operating temperatures in densely packed server rooms.

Consumer electronics also benefit from these density improvements. Mobile devices and ultrathin laptops can accommodate larger storage capacities without increasing their physical dimensions. Users experience faster file transfers and smoother application performance as the underlying storage architecture becomes more efficient at managing data blocks.

The broader market impact extends to cost per terabyte calculations. As packaging techniques mature and yield rates improve, the price of high-capacity drives continues to decline. This trend makes large-scale storage accessible to a wider range of applications, from personal backup solutions to industrial data logging systems.

Conclusion

The semiconductor industry continues to navigate the complex intersection of physics, economics, and engineering constraints. Stacking separate memory dies into unified modules represents a pragmatic solution to the limitations of monolithic fabrication. This approach balances the demand for higher capacity with the realities of production efficiency.

Future iterations will likely build upon these packaging foundations to explore even greater density levels. As equipment capabilities advance and material science progresses, the boundary between separate dies and monolithic structures will continue to blur. The focus remains on delivering reliable, efficient storage that supports the growing global demand for data management.
