Thermal Grizzly Fixes Direct Die Cooling Block After Withdrawal

Direct die liquid cooling has long represented the pinnacle of enthusiast thermal engineering, offering the most efficient path for heat dissipation from processor cores. When a major manufacturer releases a specialized block for a flagship socket, the industry expects immediate performance validation. Thermal Grizzly recently navigated a complex engineering recalibration after its initial Mycro Direct Die water block for Intel LGA1700 processors fell short of published specifications. The company subsequently withdrew the product, conducted extensive failure analysis, and returned with a revised iteration that addresses both mechanical stress and thermal transfer limitations.

What caused the original Mycro Direct Die to fail?

The initial release of the Mycro Direct Die water block was intended to provide a substantial thermal advantage over traditional integrated heat spreader solutions. Enthusiasts and professional overclockers anticipated a temperature reduction of approximately fifteen degrees Celsius when comparing direct core contact against standard cooling architectures. Early adoption, however, revealed a stark divergence between theoretical expectations and real-world thermal metrics. Some users reported that the cooling block occasionally delivered results that were inferior to stock processor coolers, which directly contradicted the fundamental purpose of the product.

The manufacturer responded swiftly by removing the unit from the market and issuing a public acknowledgment of the shortfall. This immediate withdrawal demonstrated a commitment to hardware safety and performance integrity, even at the cost of short-term commercial disruption. The investigative phase required a meticulous examination of the manufacturing tolerances and the physical interaction between the cooling block and the processor substrate. Engineers discovered that the error originated from the precision machining process used to shape the contact surface.

Although the initial design incorporated a forty-five-degree bevel intended to mitigate sharp edge pressure, this geometric adjustment proved insufficient for long-term reliability. The CNC milling process left a defined edge that gradually compromised the delicate circuitry of the processor. During repeated mounting and unmounting cycles, the rigid contact surface exerted concentrated stress on the processor printed circuit board. This mechanical fatigue eventually led to catastrophic failure in several test units, confirming that the structural design required a fundamental geometric revision rather than a minor adjustment.

How did Thermal Grizzly address the structural and thermal deficiencies?

The engineering team initiated a comprehensive redesign protocol to eliminate the mechanical stress points while simultaneously restoring the expected thermal performance. The first modification involved altering the mounting interface to ensure uniform pressure distribution across the processor substrate. Additional material was carefully machined away from the surrounding plastic housing near the socket area. This spatial adjustment allowed the mounting hardware to apply consistent clamping force regardless of minor variations in the delidded processor base.

The revised contact surface now features a rounded profile instead of the original sharp bevel. This geometric change effectively disperses mechanical load across a broader area, preventing localized stress concentrations that previously damaged the processor printed circuit board. The manufacturer validated the new mounting geometry through extensive cycle testing, ensuring that the block could withstand repeated installation procedures without compromising the delicate silicon components. This structural correction established a reliable foundation for the subsequent thermal optimizations.

Refining the mounting mechanism

Consistent mounting pressure remains a critical factor in direct die cooling applications. When the contact surface fails to distribute force evenly, thermal interface material can be displaced or compressed unevenly, leading to hot spots and reduced heat transfer efficiency. The updated design prioritizes mechanical stability by aligning the mounting hardware with the natural pressure points of the processor substrate. This approach minimizes the risk of micro-fractures developing in the silicon or the surrounding interposer layers.

The manufacturer also recognized that delidded processors present unique mechanical challenges. Removing the original integrated heat spreader alters the structural rigidity of the processor base, making it more susceptible to deformation under uneven clamping forces. By recalibrating the mounting interface, the new block accommodates these variations without requiring excessive torque during installation. This calibration reduces the likelihood of user-induced damage during the assembly process, which is particularly important for enthusiasts who frequently swap cooling solutions for benchmarking purposes.

Optimizing nickel plating for liquid metal compatibility

Thermal performance in direct die cooling heavily depends on the quality of the contact surface coating. The original iteration utilized a chemically deposited nickel layer, which the engineering team later identified as a limiting factor for heat transfer efficiency. Liquid metal thermal interface materials, which are highly favored by serious overclockers, contain gallium compounds that aggressively degrade copper and aluminum surfaces. Without an adequate protective barrier, the thermal interface material would rapidly corrode the copper base, destroying the cooling block within a short operational timeframe.

The development team contacted approximately twenty different nickel plating facilities to identify a supplier capable of producing a coating that balanced thermal conductivity with corrosion resistance. After narrowing the options down to five candidates, the manufacturer selected a specific electroplating process for the final production run. Electroplated nickel provides superior thermal transfer characteristics compared to chemical deposition, allowing heat to move more efficiently from the processor die to the cooling block. This choice directly addresses the thermal underperformance that plagued the original release.

Why does the shift to electroplated nickel matter for enthusiasts?

The selection of an electroplated nickel coating introduces a deliberate engineering trade-off that requires careful consideration from end users. While the new coating significantly improves heat transfer efficiency, it exhibits slightly reduced corrosion resistance compared to traditional chemical deposition methods. This characteristic does not render the product unsafe, but it does mandate strict adherence to maintenance protocols. Enthusiasts who utilize liquid metal thermal interface material must understand that the protective barrier requires periodic inspection to ensure long-term reliability.

The improved thermal conductivity of electroplated nickel directly translates to lower operating temperatures under sustained computational loads. Direct die cooling already operates at the extreme edge of thermal transfer physics, where every fraction of a degree matters. The enhanced coating minimizes thermal resistance at the copper interface, allowing the cooling block to reject heat more effectively into the circulating coolant. This optimization ensures that the system maintains stable clock speeds during intensive workloads without triggering thermal throttling mechanisms.

How do the updated fin designs improve cooling performance?

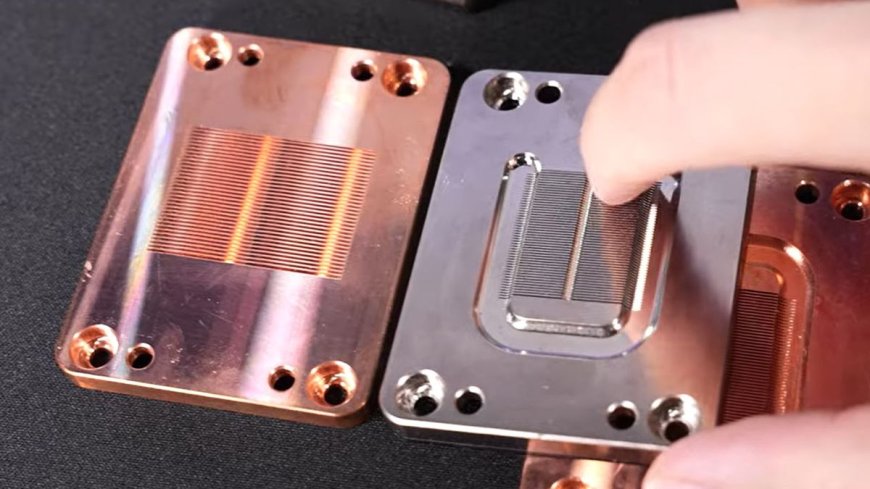

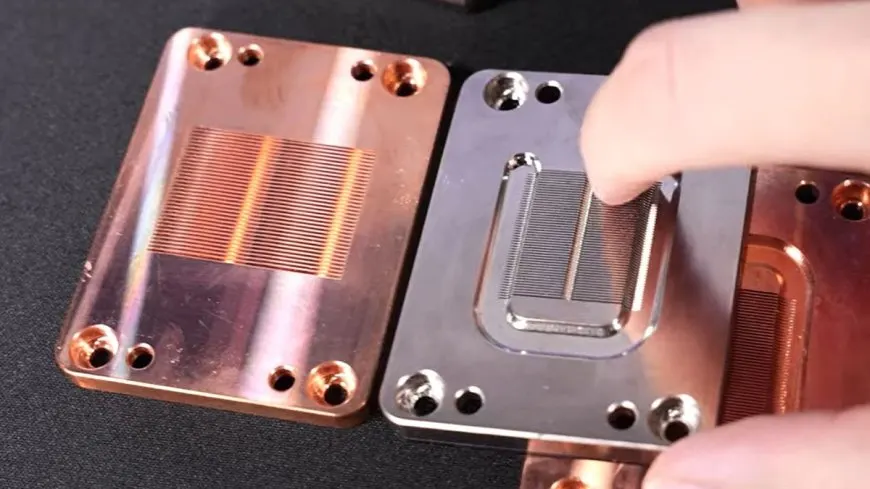

Beyond the contact surface and mounting interface, the internal architecture of the cooling block underwent significant refinement to maximize heat rejection capacity. The original design utilized half-millimeter fin slots, which provided adequate airflow but left room for improvement in surface area density. The revised iteration reduces the fin slot width to a quarter millimeter, effectively doubling the number of fins within the same physical volume. This increased fin density dramatically expands the total cooling surface area exposed to the moving coolant.

The manufacturer also adjusted the fin height and spacing to promote higher flow rates through the block. Shorter, more densely packed fins create a more turbulent coolant path, which disrupts the boundary layer and enhances convective heat transfer. This geometric optimization ensures that the coolant absorbs thermal energy more efficiently before reaching the radiator. The combined effect of increased surface area and improved flow dynamics allows the block to dissipate heat at a rate that matches the elevated thermal output of modern high-performance processors.

What does the revised product deliver in practical applications?

The newly issued Mycro Direct Die RGB Pro incorporates all the structural and thermal corrections developed during the investigation phase. Independent testing conducted with a group of community enthusiasts confirmed that the revised block now meets its original performance targets. The updated design delivers approximately six degrees Celsius lower temperatures compared to the initial prototype when the earlier unit functioned correctly. This thermal improvement, combined with the added RGB illumination, positions the product as a viable option for enthusiasts seeking maximum cooling efficiency.

Enthusiasts who frequently swap cooling solutions for benchmarking purposes often rely on cloud-synced performance databases. Securing those accounts is as important as securing the hardware itself, which is why industry standards are shifting toward stronger verification methods, similar to the transition away from traditional SMS codes for personal accounts. Microsoft Phasing Out SMS Authentication Codes for Personal Accounts in Favor of Passkeys highlights this broader security evolution.

The manufacturer has acknowledged that its entry into the LGA1700 direct die cooling market arrived later than competitors, but the extensive recalibration process has resulted in a more mature product. The engineering team has also confirmed that the mechanical and thermal adjustments will be integrated into future cooling solutions designed for next-generation processor architectures. This forward-looking approach ensures that the lessons learned from the initial withdrawal will inform subsequent product development cycles.

Data transmission during these extensive validation cycles requires stable network infrastructure. If your current connection lacks the bandwidth or stability needed for large telemetry uploads, you might be overlooking a bottleneck that affects your overall workflow. Your Wi-Fi could be holding you back from achieving success, report warns underscores the importance of reliable connectivity for modern tech professionals.

The industry benefits from a manufacturer that prioritizes rigorous validation over rushed market entry. By addressing the root causes of mechanical failure and thermal inefficiency, the revised design establishes a more reliable foundation for direct die cooling applications. Enthusiasts can now approach high-performance thermal upgrades with greater confidence, knowing that the structural and material compromises have been systematically resolved through extensive testing and supplier negotiation.
