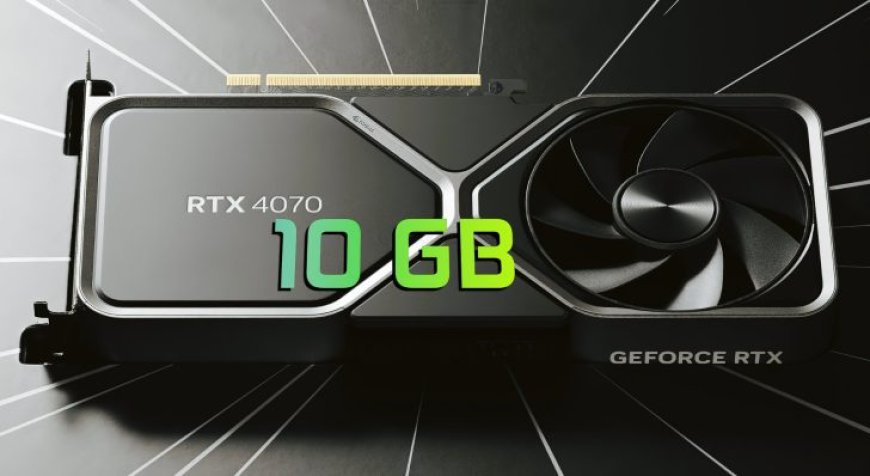

Unreleased NVIDIA GeForce RTX 4070 10 GB GPU Surfaces: 7168 Cores & 21 Gbps GDDR6X Memory

The journey from silicon prototype to retail graphics card often leaves behind fascinating blueprints. A recently archived NVIDIA development board reveals a canceled GeForce RTX 4070 variant that never reached store shelves, offering a rare look at the hardware engineering that shaped the current generation.

Historical Context of the Canceled Prototype

Archival records indicate that NVIDIA evaluated multiple silicon configurations before finalizing its retail launch strategy. This specific pre-production unit, built around the AD104-275 die, was ultimately shelved. The discovery confirms that internal testing closely aligns with the final product roadmap, providing valuable insight into the company's iterative design process.

Core Specifications and Performance Metrics

The prototype silicon boasts a robust core configuration that aligns closely with subsequent market releases. Key technical details include the following points:

• CUDA Core Count: 7168 cores, representing a significant increase over the standard RTX 4070 launch variant.
• Texture and Raster Engines: 224 TMUs and 80 ROPs, providing a balanced pipeline for modern rendering workloads.
• Clock Speeds: A base frequency of 2355 MHz and a boost clock of 2520 MHz, indicating aggressive factory tuning during development.

Memory Subsystem and Board Design

While the processing power closely mirrors the eventual SUPER lineup, the memory architecture tells a different story. The board utilizes a 160-bit bus paired with 10 GB of GDDR6X memory. These modules operate at 21 Gbps and deliver approximately 420 GB/s of bandwidth, which falls short of the 12 GB VRAM and higher bandwidth found in the official retail cards.

The physical implementation follows the reference Founders Edition layout. The printed circuit board features a circular cutout on the backplate and a 10-phase power delivery system connected via a single 16-pin power connector. Although the layout accommodates eight memory chips, only five are populated. The card also includes three DisplayPort outputs and one HDMI port, carrying a reference BIOS version and standard NVIDIA device identifiers.

Why This Prototype Matters

Hardware development rarely follows a straight line. NVIDIA routinely samples multiple board designs and silicon stepping variants to optimize performance, power efficiency, and manufacturing yields. The AD104-275 prototype demonstrates how closely internal testing aligns with the final product roadmap. This specific 10 GB variant never reached consumers, yet its architecture directly informed the successful release of the RTX 4070 SUPER.

Archival hardware leaks continue to provide valuable insight into the complex development cycles of modern graphics processors. This canceled RTX 4070 prototype stands as a testament to rigorous testing and strategic refinement, proving that the chips powering today market are the result of careful engineering.
