Unreleased RTX 3050 Ti Prototype Reveals Missing Mid-Range Architecture
An engineering sample of the unreleased desktop GeForce RTX 3050 Ti has surfaced, revealing a GA106-based graphics card positioned between the RTX 3060 and RTX 3050. The prototype features 26 active streaming multiprocessors, a 192-bit memory interface, and 6 gigabytes of GDDR6 VRAM. Benchmark data suggests performance roughly twenty percent faster than the standard RTX 3050 while trailing the RTX 3060 by a modest margin. Market conditions during the Ampere launch era ultimately prevented its commercial release, leaving a notable gap in the mid-range graphics segment.
A recent discovery in the hardware community has shed new light on a missing piece of Nvidia’s Ampere generation lineup. Photographs and benchmark data circulating online reveal an engineering sample of the GeForce RTX 3050 Ti desktop graphics card. This unreleased component bridges a notable gap between two widely adopted models and offers a glimpse into a product that never reached retail shelves. The findings provide valuable insight into Nvidia’s silicon binning practices and the strategic decisions that shaped the company’s mid-range market presence during a turbulent period for semiconductor manufacturing.
An engineering sample of the unreleased desktop GeForce RTX 3050 Ti has surfaced, revealing a GA106-based graphics card positioned between the RTX 3060 and RTX 3050. The prototype features 26 active streaming multiprocessors, a 192-bit memory interface, and 6 gigabytes of GDDR6 VRAM. Benchmark data suggests performance roughly twenty percent faster than the standard RTX 3050 while trailing the RTX 3060 by a modest margin. Market conditions during the Ampere launch era ultimately prevented its commercial release, leaving a notable gap in the mid-range graphics segment.
What is the GeForce RTX 3050 Ti engineering sample?

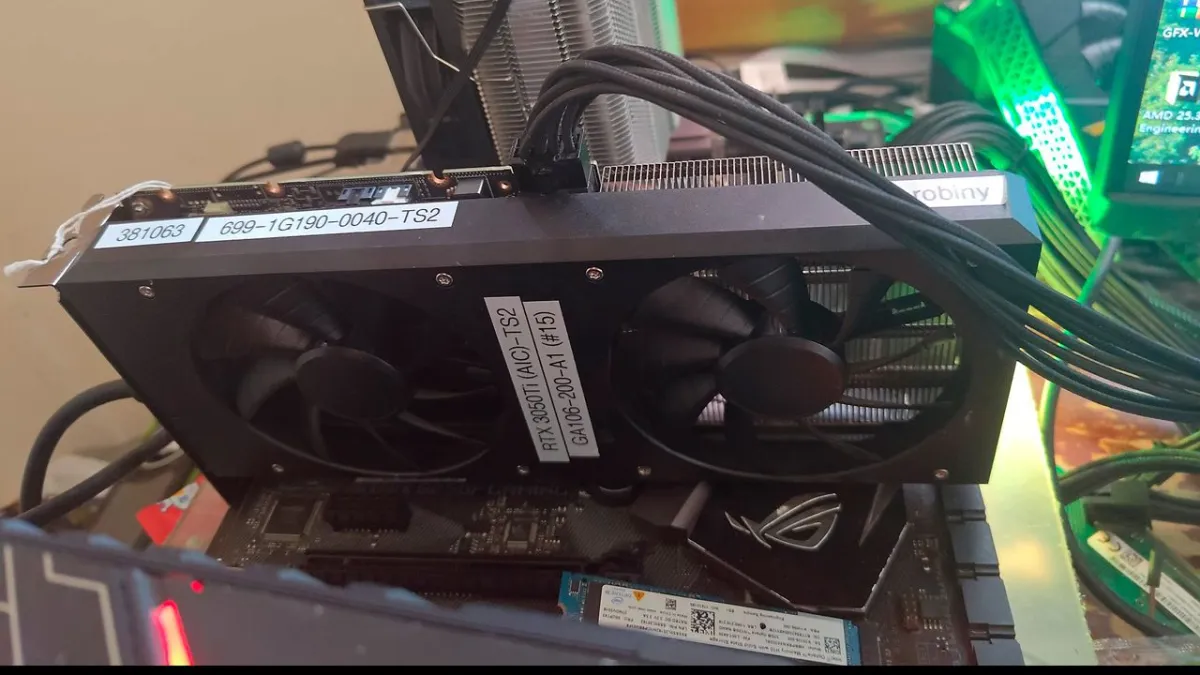

The hardware leak originates from a documented prototype bearing the PG190 SKU 40 designation. This specific board layout utilizes the GA106 silicon die, which also powers the GeForce RTX 3060 and the standard GeForce RTX 3050. The engineering sample demonstrates a deliberate approach to silicon segmentation, where a single manufacturing die is adapted for different performance tiers. The prototype features twenty-six active streaming multiprocessors, translating to three thousand three hundred twenty-eight CUDA cores.
This configuration represents approximately eighty-seven percent utilization of the full GA106 die, which contains thirty streaming multiprocessors when fully enabled. The base clock frequency sits at one thousand four hundred ten megahertz, while the boost clock reaches one thousand six hundred sixty-five megahertz. These clock speeds reflect a balanced approach to power efficiency and raw computational throughput. The memory subsystem operates on a one hundred ninety-two-bit bus width, delivering three hundred thirty-six gigabytes per second of bandwidth.
The prototype carries six gigabytes of GDDR6 memory running at fourteen gigabits per second. This specific memory configuration creates a unique hybrid profile that diverges from standard retail models. The engineering sample provides a clear window into how Nvidia planned to structure its mid-range offerings before market dynamics shifted the company strategy. The data confirms that the component was never a technical impossibility, but rather a strategic decision influenced by external economic pressures.
How does the GA106 silicon configuration compare to existing cards?
The architectural relationship between the unreleased prototype and its retail counterparts reveals a carefully calculated segmentation strategy. The full GA106 die contains thirty streaming multiprocessors, but the engineering sample disables four of these units. This results in a graphics processor that sits precisely between the GeForce RTX 3060 and the GeForce RTX 3050 in terms of raw compute capability. The RTX 3060 retains all twenty-eight active streaming multiprocessors available on its specific silicon revision.
The standard RTX 3050 utilizes a more heavily disabled variant with only twenty active streaming multiprocessors and two thousand five hundred sixty CUDA cores. The engineering sample bridges this gap by activating twenty-six streaming multiprocessors and three thousand three hundred twenty-eight CUDA cores. This places the prototype roughly seven percent below the RTX 3060 in core count while delivering approximately thirty percent more computational power than the RTX 3050.
The tensor core and ray tracing core counts follow a similar proportional relationship. The prototype features one hundred four tensor cores and twenty-six ray tracing cores, which aligns with the disabled streaming multiprocessor count. Memory architecture presents a more complex picture. The RTX 3060 originally launched with twelve gigabytes of GDDR6 memory, while the RTX 3050 shipped with eight gigabytes. The engineering sample carries only six gigabytes of memory capacity.
This reduction in VRAM quantity is offset by the wider one hundred ninety-two-bit memory bus, which matches the RTX 3060. The combination of a wider bus and faster memory controllers allows the prototype to achieve significantly higher memory bandwidth than the RTX 3050, despite carrying less total video memory. This configuration demonstrates how Nvidia balanced computational power against memory capacity during the Ampere generation design phase.
Why did Nvidia withhold the desktop variant?
The decision to release a mobile variant of the GeForce RTX 3050 Ti while withholding the desktop version stems from a convergence of market pressures and manufacturing constraints. The Ampere architecture launched during a period of unprecedented semiconductor scarcity. Global supply chain disruptions, combined with a massive surge in cryptocurrency mining demand, created severe shortages across the entire graphics card market. Retail manufacturers struggled to secure adequate silicon wafers.
Nvidia prioritized high-margin products and established SKUs during this period. The desktop market experienced extreme price inflation, where manufacturer suggested retail prices lost their traditional meaning. Under these conditions, launching a new mid-range product required careful risk assessment. The engineering sample indicates that the desktop RTX 3050 Ti would have targeted a price point around two hundred eighty-nine dollars. This pricing would have filled a noticeable gap between the two hundred forty-nine dollar RTX 3050 and the three hundred twenty-nine dollar RTX 3060.
However, the company likely determined that the potential revenue from a new SKU did not justify the manufacturing complexity during a period of constrained supply. Nvidia instead focused on optimizing existing products and expanding its mobile lineup, where thermal constraints and form factor requirements created a different competitive landscape. The mobile RTX 3050 Ti successfully catered to laptop manufacturers seeking a balanced power-to-performance ratio for gaming notebooks.
The desktop market, however, remained served by the RTX 3060, which maintained strong demand and established itself as the most popular graphics card on major gaming platforms. The engineering sample serves as a historical artifact of a product that existed only in prototype form. It highlights how external economic factors and supply chain realities directly influence product roadmaps and silicon deployment strategies.
What do the benchmark results suggest about its performance tier?
Performance data from the engineering sample provides a clear indication of where this unreleased card would have positioned itself within the gaming market. The prototype achieved a graphics score of seven thousand seven hundred eighty-seven points in the 3DMark Time Spy benchmark. This score establishes a definitive performance tier that bridges the gap between two widely adopted retail models. The standard GeForce RTX 3050 typically scores between five thousand three hundred and six thousand four hundred points in the same test.
The GeForce RTX 3060 generally achieves scores ranging from eight thousand two hundred to nine thousand points. Comparing the maximum values across these models reveals that the engineering sample would deliver approximately twenty-two percent faster graphics performance than the RTX 3050. Conversely, it trails the RTX 3060 by roughly thirteen percent when comparing peak benchmark results. This performance delta confirms that the card was designed to offer a meaningful upgrade path for users transitioning from the entry-level RTX 3050.
The clock speed specifications support this performance tier. The base and boost frequencies exceed those of the RTX 3060, which compensates for the lower CUDA core count. Higher clock speeds on a reduced core count is a common architectural approach to maintain competitive performance while managing power consumption and thermal output. The memory bandwidth of three hundred thirty-six gigabytes per second also plays a crucial role in gaming performance.
While the six gigabyte VRAM capacity might raise concerns for modern titles, the wider memory interface mitigates bandwidth limitations that typically affect lower-end cards. The benchmark data suggests that the card would have excelled in 1080p gaming scenarios and offered a viable alternative for users seeking higher frame rates without crossing into premium pricing tiers. The engineering sample demonstrates how Nvidia balanced computational throughput, clock speeds, and memory architecture to create a balanced mid-range graphics processor.
How might this unreleased card impact the current market landscape?
The existence of this engineering sample raises interesting questions about the current graphics card market and consumer purchasing decisions. The GeForce RTX 3060 has maintained remarkable longevity, continuing to dominate market share statistics years after its initial release. Custom variants of the RTX 3060 currently command prices starting at four hundred seventy-nine dollars, which significantly exceeds the original manufacturer suggested retail price. This price inflation creates a substantial gap in the budget-friendly graphics card segment.
A commercially released RTX 3050 Ti would have provided a structured alternative for gamers seeking reliable performance without paying premium prices for older generation hardware. The mid-range segment often serves as the primary entry point for new PC builders and upgrade seekers. Consumers typically look for cards that offer strong value propositions, adequate VRAM capacity, and efficient power consumption. The engineering sample demonstrates that Nvidia had already developed a silicon configuration that addressed these requirements.
The one hundred ninety-two-bit memory bus and three hundred thirty-six gigabytes per second bandwidth would have provided a solid foundation for modern gaming workloads. The six gigabyte VRAM capacity might have required careful driver optimization to ensure compatibility with contemporary titles. Nevertheless, the card would have offered a compelling performance-to-price ratio during its intended launch window. The absence of this product leaves a historical gap in Nvidia retail lineup.
It also highlights how supply chain disruptions can permanently alter product roadmaps and consumer expectations. The engineering sample serves as a reminder that many unreleased components exist only as prototypes, shaped by market conditions rather than technical limitations. Understanding these historical product decisions helps consumers evaluate current generation hardware and appreciate the evolution of graphics processing technology. The data confirms that the RTX 3050 Ti was never a technical impossibility, but rather a strategic decision influenced by external economic pressures.
Conclusion
The discovery of the GeForce RTX 3050 Ti engineering sample provides valuable insight into Nvidia’s product development strategies during the Ampere generation. The prototype demonstrates a carefully calculated approach to silicon segmentation, utilizing the GA106 die to create a balanced mid-range graphics processor. Benchmark data and architectural specifications confirm that the card would have occupied a distinct performance tier between two widely adopted retail models.
Market conditions during the initial launch period ultimately prevented commercial release, leaving a notable gap in the company desktop lineup. The engineering sample stands as a historical artifact of a product shaped by supply chain realities rather than technical constraints. It offers a clear window into how semiconductor manufacturing challenges influence product roadmaps and consumer market dynamics. The data confirms that the unreleased card was never a technical impossibility, but rather a strategic decision influenced by external economic pressures.
Understanding these historical product decisions helps consumers evaluate current generation hardware and appreciate the evolution of graphics processing technology. The prototype remains a fascinating glimpse into an alternate timeline for mid-range gaming hardware. The findings underscore how external factors frequently dictate the trajectory of technology development, leaving behind only prototypes and benchmark data for future analysis.
