The budget Intel Pentium Gold G7400T has been pushed to 5.8 GHz through base clock manipulation and liquid nitrogen cooling. This achievement highlights the capabilities of unlocked motherboard features while underscoring Intel’s official stance against modifying non-K series silicon. The experiment demonstrates how firmware adjustments can temporarily override factory constraints.

What makes the Pentium Gold G7400T a viable candidate for extreme overclocking?

The Intel Pentium Gold G7400T represents a specific segment of the Alder Lake processor family, designed primarily for entry-level computing and everyday productivity tasks. Official specifications list a base clock frequency of 3.10 GHz, accompanied by 2.5 megabytes of L2 cache and 6 megabytes of L3 cache. The thermal design power is rated at 35 watts, indicating a focus on energy efficiency and moderate heat output under standard operating conditions. Despite these conservative factory settings, the underlying silicon architecture shares foundational characteristics with higher-tier models in the same generation.

Enthusiasts recognize that modern manufacturing processes often yield chips capable of exceeding their rated specifications when power delivery and cooling are properly managed. The dual-core configuration, while limiting for heavy multitasking, allows for focused testing environments where clock speed becomes the primary variable. This architectural simplicity makes the processor an ideal subject for frequency scaling experiments. The hardware community has long observed that lower-priced silicon occasionally contains robust voltage regulators and stable core layouts, which can be leveraged during intensive tuning sessions.

The absence of complex power gating and advanced core management features in entry-level designs reduces the likelihood of unexpected firmware interference during manual adjustments. This straightforward electrical architecture allows technicians to isolate frequency variables without navigating intricate power state transitions. Consequently, budget processors frequently serve as reliable platforms for validating new tuning methodologies before applying them to more complex architectures. The G7400T provides a controlled environment where base clock adjustments can be evaluated without the compounding variables found in flagship models.

How does base clock manipulation alter traditional processor boundaries?

The methodology employed to reach 5.8 GHz relies on adjusting the base clock frequency rather than relying on traditional multiplier adjustments. The base clock serves as the foundational timing signal that orchestrates communication between the processor, memory controllers, and peripheral interfaces. By increasing this value to 187 megahertz, the overclocker achieved an eighty-seven percent elevation over the original specification. This approach requires precise synchronization across all connected system components to prevent instability or data corruption.

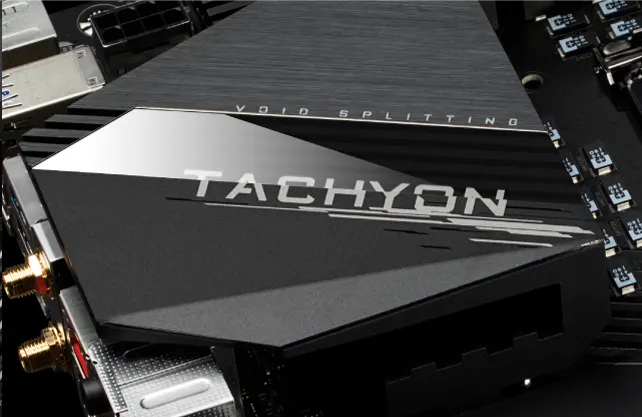

The motherboard utilized for this test, the Gigabyte AORUS Z690 Tachyon, provides specialized BIOS interfaces that expose these advanced timing controls. Accessing these settings bypasses the standard operational limits imposed by default firmware configurations. Voltage levels were simultaneously raised to 1.656 volts to maintain signal integrity at higher frequencies. Such adjustments demand a thorough understanding of electrical thresholds and silicon behavior. Historically, manufacturers have restricted base clock adjustments on mainstream chips to protect warranty terms and ensure consistent performance across diverse system configurations.

The availability of these controls in modern consumer motherboards reflects a gradual shift toward empowering users with deeper hardware management capabilities. This technical pathway demonstrates how firmware-level modifications can temporarily override factory constraints. Enthusiasts must carefully monitor system stability during these adjustments, as even minor timing errors can trigger immediate crashes or data corruption. The successful execution of this process highlights the sophisticated engineering behind contemporary BIOS development and the growing accessibility of advanced tuning parameters.

Why does Intel maintain strict warnings against modifying non-K series silicon?

Intel has publicly communicated a clear position regarding the modification of non-K series processors. The company explicitly warns that altering base clock parameters or increasing voltage levels will void the manufacturer warranty. This policy stems from standard operational guidelines designed to protect both the consumer and the brand from potential hardware damage. Factory testing procedures validate each chip under specific thermal and electrical conditions, and deviating from those parameters introduces unpredictable failure modes.

The corporation has also indicated plans to implement a firmware update that will disable these base clock adjustments on future compatible motherboards. This decision aligns with a broader industry trend toward standardized performance tiers and controlled release cycles. Historically, the enthusiast market has relied on specific model designations to access unlocked multipliers, a practice that dates back to earlier processor generations. The 2014 Pentium Anniversary Edition G3258 previously offered unlocked multiplier capabilities at a modest price point, establishing a precedent for budget-friendly performance tuning.

Current Alder Lake architecture removes the multiplier restriction for all series, yet the base clock pathway remains the primary method for extreme frequency scaling. Corporate policy and enthusiast experimentation often operate on different timelines, creating a temporary window for hardware modification before official restrictions take effect. This dynamic illustrates the ongoing negotiation between manufacturers seeking product consistency and users pursuing maximum hardware potential. The eventual firmware patch will likely close this specific tuning avenue, reinforcing the distinction between standard consumer products and specialized enthusiast hardware.

What are the practical implications for budget enthusiasts and system builders?

The successful frequency scaling of a sixty-four dollar processor carries significant implications for the broader computing community. It demonstrates that extreme performance testing does not exclusively require flagship components or substantial financial investment. Enthusiasts seeking to explore hardware limits can utilize affordable dual-core chips as primary testing platforms. The benchmark submissions, which include Geekbench 3.4.4, HWbot X265 tests at both four and one thousand eighty pixel resolutions, and Y-Cruncher calculations, provide measurable data points for comparative analysis.

These results confirm that raw clock speed remains a critical factor in synthetic performance metrics. However, achieving such frequencies necessitates substantial infrastructure upgrades. Standard air cooling or conventional liquid loops cannot manage the thermal output generated during extreme tuning sessions. Liquid nitrogen cooling becomes a practical requirement to maintain stable operating temperatures. The financial and logistical investment required for such cooling methods often outweighs the performance gains for everyday users.

Nevertheless, the exercise serves as an educational platform for understanding silicon behavior, voltage thresholds, and motherboard firmware capabilities. It also highlights the ongoing dialogue between hardware manufacturers and the enthusiast community regarding feature accessibility and warranty terms. For those interested in advanced thermal solutions, exploring dedicated cooling hardware like the AMD Ryzen 3000 Overclocking Mounting Brackets can provide valuable insights into specialized thermal management strategies. The broader community benefits from shared documentation of these experiments, which continuously refines collective technical knowledge.

How does thermal management dictate the limits of silicon performance?

Thermal dynamics represent the most immediate constraint in extreme overclocking endeavors. As clock frequencies increase, the electrical activity within the processor core intensifies, generating substantial heat output. The relationship between voltage and temperature follows a direct correlation, meaning that raising the supply voltage to 1.656 volts significantly accelerates thermal accumulation. Without adequate heat dissipation, the silicon will quickly exceed its maximum operating threshold, triggering thermal throttling or permanent physical damage.

Liquid nitrogen operates at extremely low temperatures, allowing the processor to maintain stability far beyond standard cooling capabilities. This technique temporarily neutralizes thermal constraints, shifting the focus entirely to electrical stability and component synchronization. The motherboard voltage regulator modules must also withstand increased power delivery demands without overheating or experiencing voltage droop. High-end enthusiast boards incorporate reinforced power phases and specialized cooling solutions to support these conditions.

The Gigabyte AORUS Z690 Tachyon exemplifies this engineering approach, featuring robust power delivery systems designed to sustain heavy overclocking loads. Understanding thermal limits is essential for anyone attempting to push hardware beyond factory specifications. The exercise reveals that performance scaling is not merely a matter of adjusting frequencies, but rather a complex balancing act between electrical input, heat output, and component durability. Proper thermal management remains the defining factor between successful benchmark submissions and catastrophic hardware failure.

What does this achievement reveal about the evolution of consumer hardware?

The ability to extract extreme frequencies from an entry-level processor reflects broader shifts in the personal computing industry. Historically, advanced tuning features were reserved for premium product lines, creating a clear distinction between casual users and dedicated enthusiasts. Modern motherboard manufacturers now routinely include base clock adjustment options in their BIOS interfaces, regardless of the installed processor tier. This democratization of hardware control allows a wider audience to experiment with system optimization and performance tuning.

The enthusiast community continues to document these experiments through benchmark databases, fostering a culture of shared knowledge and technical exploration. These records serve as proof of concept for silicon potential and inspire further research into voltage regulation and cooling efficiency. As processor architectures evolve, the gap between factory specifications and achievable performance may continue to narrow. Manufacturers must balance accessibility with warranty protection, while enthusiasts seek new methods to explore hardware boundaries.

The ongoing development of specialized tools and cooling solutions supports this dynamic ecosystem. For those interested in the broader context of performance tuning, examining historical milestones like Intel’s Core i9-7980XE Flagship 18-Core CPU overclocking achievements provides valuable perspective on how extreme computing has progressed over recent decades. The current G7400T experiment continues this tradition, proving that technical curiosity remains a driving force in hardware development.

What are the long-term consequences of firmware-based performance restrictions?

Intel’s announced plan to disable base clock adjustments on future motherboards will fundamentally alter how enthusiasts approach hardware modification. This firmware-level restriction represents a strategic decision to standardize user experiences and reduce warranty-related complications. Manufacturers increasingly prioritize predictable performance outcomes over experimental flexibility, especially as processor designs grow more complex. The removal of accessible tuning parameters will likely shift enthusiast efforts toward alternative optimization methods.

Software-based tuning, power limit adjustments, and memory controller optimization will likely gain prominence as primary avenues for performance enhancement. Hardware manufacturers will continue to develop specialized cooling solutions and reinforced motherboard architectures to support these new tuning paradigms. The enthusiast community will adapt by focusing on sustainable performance gains rather than extreme frequency milestones. This evolution reflects a maturing industry where accessibility and reliability take precedence over raw benchmark chasing.

The temporary availability of base clock adjustments on current Alder Lake platforms serves as a final opportunity for traditional silicon tuning. Users who wish to explore these capabilities must do so before widespread firmware updates take effect. The documentation of these experiments ensures that the technical knowledge remains available for future reference. This transition marks a definitive shift in how consumer hardware will be optimized, moving away from manual frequency scaling toward integrated system-level management.
