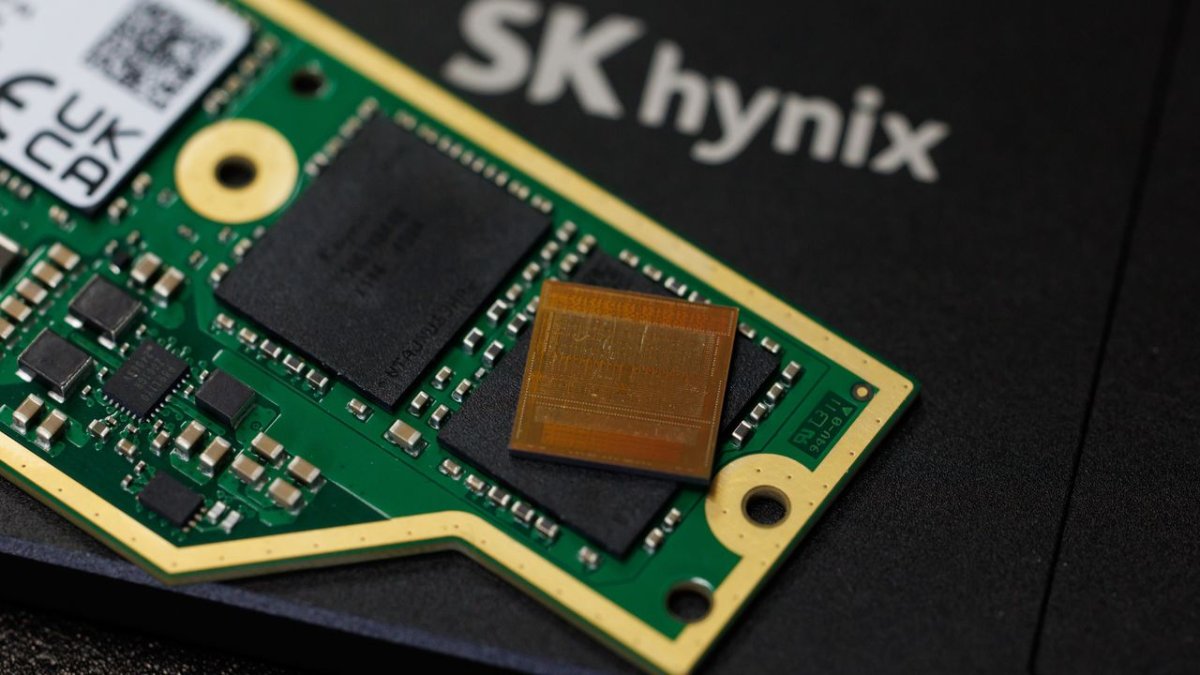

SK hynix iHBM Thermal Architecture Cools AI Memory at the Source

Modern artificial intelligence workloads demand unprecedented data throughput, pushing traditional memory architectures to their absolute physical limits. As computational models grow in complexity and scale, the primary bottleneck has steadily shifted from raw processing power to efficient data delivery and precise thermal management. Semiconductor manufacturers are now addressing these persistent constraints through innovative packaging techniques that prioritize heat dissipation directly at the component level.

SK hynix has introduced iHBM, a thermal packaging solution that embeds integrated cooling elements directly into the die-to-die interface of high-bandwidth memory. This architecture reduces thermal resistance by over thirty percent, mitigating thermal throttling and enabling stable operation for next-generation AI accelerators and dense data center environments.

What is the iHBM thermal architecture?

High-bandwidth memory represents a critical advancement in semiconductor engineering, designed to bridge the performance gap between processors and data storage. Traditional memory modules rely on external bus connections that introduce latency and limit bandwidth. To overcome these constraints, engineers developed vertical stacking techniques that place multiple dynamic random-access memory dies directly atop one another. This configuration dramatically shortens the physical distance data must travel, enabling massive transfer speeds while improving power efficiency. The architecture has become indispensable for artificial intelligence applications, where continuous data movement is required to sustain training and inference cycles.

The iHBM solution addresses a fundamental limitation inherent to this vertical stacking approach. When memory stacks are positioned in close proximity to graphics processing units or specialized AI accelerators, the density of the arrangement creates severe thermal concentration. The die-to-die physical layer serves as the primary conduit for terabytes of data per second. As signaling lanes activate and deactivate at extreme frequencies, electrical resistance and switching losses generate substantial heat. The iHBM architecture responds to this challenge by embedding integrated cooling elements directly within the die-to-die physical layer. This structural modification creates a dedicated heat dissipation path at the exact point of thermal generation, rather than relying on indirect cooling through surrounding package materials.

How does integrated cooling address thermal throttling?

Thermal throttling represents a standard safety mechanism in modern computing systems. When component temperatures exceed predetermined thresholds, hardware automatically reduces clock speeds and lowers operating voltages to prevent physical damage. While this protection prevents catastrophic failure, it severely degrades computational performance during intensive workloads. AI data centers frequently operate near maximum capacity, meaning thermal throttling can interrupt training cycles and reduce inference throughput. The cumulative effect of repeated throttling events creates inefficiencies that scale across entire server racks.

By placing cooling elements directly around the high-speed interface, the new architecture mitigates the root cause of thermal buildup. The integrated cooling elements function as a structural heat sink that channels thermal energy away from the most vulnerable circuitry. This targeted approach allows the memory stack to maintain stable operating characteristics even under sustained high-load conditions. System designers can rely on consistent data transfer rates without encountering performance drops caused by temperature regulation. The reduction in thermal resistance by over thirty percent establishes a more predictable thermal envelope for future memory generations.

The engineering challenges of high-bandwidth memory

The development of advanced memory packaging requires balancing multiple competing engineering objectives. Increasing stack height allows for greater memory capacity, but it also complicates heat dissipation and manufacturing yield. Traditional cooling methods typically rely on thermal interface materials and external heat spreaders that add bulk to the package. These indirect approaches struggle to keep pace with the accelerating heat density of modern processors. Engineers must find ways to manage thermal loads without compromising the electrical integrity of high-speed signaling lanes.

Manufacturing compatibility remains a critical consideration for industry adoption. The new architecture is designed to integrate with existing wafer level packaging processes. It leverages mass reflow molded underfill technology, which is already utilized in commercial memory products. This compatibility reduces the barrier to entry for equipment manufacturers and system integrators. The design maintains architectural alignment with standard system-in-package configurations, allowing hardware developers to implement the thermal improvements without undertaking complete redesigns of their foundational layouts.

Why does thermal management matter for dense AI data centers?

Artificial intelligence infrastructure operates under continuous computational stress that differs fundamentally from traditional server workloads. Training large language models requires sustained memory bandwidth for extended periods, often spanning days or weeks. Data centers that host these operations must manage power delivery and cooling capacity at a massive scale. Every kilowatt of wasted energy translates to higher operational costs and increased cooling infrastructure requirements. Thermal efficiency directly influences the total cost of ownership for cloud providers and enterprise computing facilities.

The shift toward denser AI accelerators amplifies the importance of component-level thermal control. As processors pack more transistors into smaller footprints, the power density per square centimeter continues to rise. Memory components that sit adjacent to these processors absorb a portion of this thermal load. Inadequate heat management forces system designers to increase spacing between components, which reduces overall packing density and increases board size. Effective thermal architecture allows engineers to maintain compact form factors while preserving performance stability. This capability becomes increasingly valuable as data centers pursue higher computational throughput within constrained physical spaces.

Scaling for next-generation AI accelerators

The semiconductor industry operates on a predictable roadmap of architectural evolution. Memory technology must advance in tandem with processor capabilities to prevent bottlenecks from stalling system performance. Future memory generations are expected to feature taller stacks and higher signaling frequencies. These improvements will deliver greater bandwidth and capacity, but they will also generate proportionally more heat. The thermal management strategy introduced today establishes a foundation for those future iterations.

Next-generation memory specifications will require interfaces that can handle increased data volumes without compromising reliability. The integration of cooling elements at the die-to-die physical layer provides a scalable solution for these upcoming requirements. Manufacturers can apply this approach to subsequent product tiers, ensuring that thermal performance keeps pace with bandwidth expansion. The architecture supports the transition toward HBM5 and beyond, aligning with industry expectations for sustained performance growth. This forward-looking design philosophy ensures that thermal constraints do not dictate the limits of computational scaling.

What are the broader implications for semiconductor packaging?

The evolution of memory packaging reflects a broader trend in semiconductor engineering toward heterogeneous integration. As Moore's Law slows, the industry relies on advanced packaging to continue delivering performance gains. Combining different types of chips and memory structures within a single package allows engineers to optimize each component for its specific function. Thermal management becomes a central concern in these complex assemblies, as heat from one component can affect the performance of adjacent structures.

Addressing thermal challenges at the source rather than through peripheral cooling methods represents a significant shift in packaging strategy. This approach requires precise alignment of thermal materials with high-speed electrical pathways. It also demands rigorous testing to ensure that cooling elements do not interfere with signal integrity or mechanical stability. The successful implementation of this architecture demonstrates how targeted thermal engineering can extend the functional lifespan of advanced memory designs. It also provides a template for future innovations in high-density computing hardware.

What does this mean for the future of AI infrastructure?

The continuous expansion of artificial intelligence capabilities depends on sustained improvements in hardware efficiency. Memory technology serves as a critical enabler for these advancements, providing the data pathways that processors require to function. Thermal management has emerged as a defining challenge in the pursuit of higher performance. Solutions that address heat generation at the component level offer a practical path forward for scaling AI infrastructure.

Data center operators will increasingly evaluate hardware based on thermal efficiency and operational stability. The ability to maintain consistent performance under heavy loads reduces downtime and improves resource utilization. Memory manufacturers that deliver reliable thermal solutions will hold a competitive advantage in the high-performance computing market. The industry is likely to see broader adoption as data center operators prioritize reliability and energy efficiency. This shift in packaging strategy underscores the importance of holistic engineering in the development of next-generation computing systems.

The integration of thermal management directly into memory packaging represents a necessary evolution in semiconductor design. As computational demands continue to rise, addressing heat generation at the source becomes more critical than relying on peripheral cooling methods. The architectural adjustments outlined here provide a scalable framework for future memory generations. Engineers and system designers will leverage these innovations to build more efficient, reliable, and densely packed AI infrastructure. The focus on thermal stability ensures that performance gains can be sustained without compromising hardware longevity.
