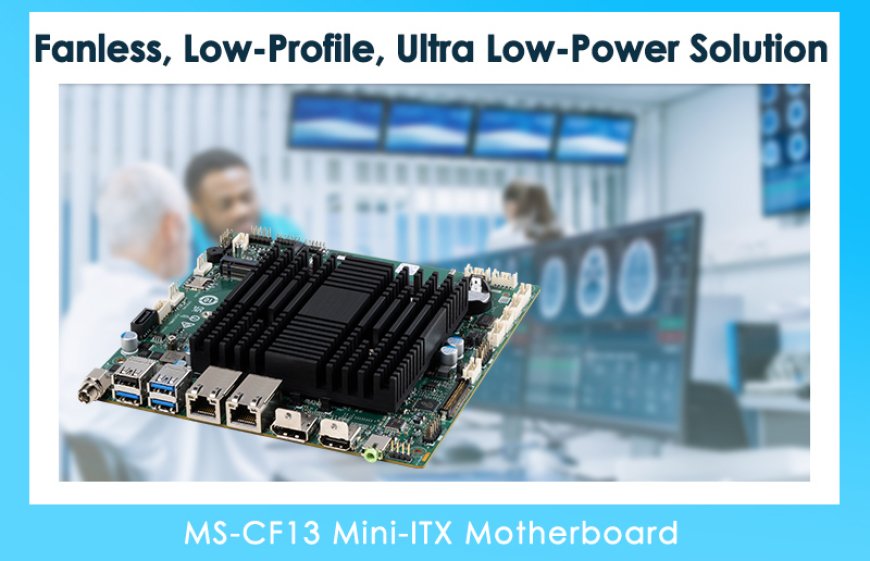

Unveiling the MS-CF13 Mini-ITX Motherboard: The Ultimate Fanless, Low-Profile, Ultra Low-Power Solution

Key Features:

• Powered by Intel® Alder Lake-N Processor: The MS-CF13 is equipped with Intel® Alder Lake-N PC Client & Embedded Series SoC, delivering reliable and efficient performance for diverse applications.
• High-Speed Memory: Featuring a DDR5 4800 MHz SODIMM slot, the motherboard supports up to 16GB of memory, ensuring robust data handling capabilities.
• Triple Independent Displays: Supports DP, HDMI/DP, and LVDS/eDP, making it perfect for applications that require multiple high-resolution screens.
• Enhanced Network Connectivity: Includes 2 2.5 GbE LAN ports with RJ-45, providing high-speed network connections for data-intensive tasks.
• Versatile Expansion and Storage: Offers 1 M.2 E Key slot, 1 M.2 B Key (with SIM Holder, B+M key supported) and 1 SATA 3.0 port, ensuring extensive expansion and storage capabilities.
• Comprehensive I/O Ports: The MS-CF13 features 2 USB 10Gbps, 1 USB 5Gbps, 3 USB 2.0, 6 COM, GPIO, Audio, and a 3W amplifier, facilitating seamless connectivity with various devices.
• Advanced Security: Onboard TPM 2.0 provides enhanced security features, crucial for sensitive applications.
• DC-IN 12V: Supports a stable 12V DC input, making it suitable for environments with consistent power requirements.

Industry Applications:

1. DIGITAL SIGNAGE

• Fanless Design: Ensures silent operation, which is crucial for environments where noise can be disruptive..
• Multiple Display Outputs: Supports triple independent displays (DP, HDMI/DP, LVDS/eDP), allowing for dynamic and high-resolution digital signage..
• Low-Power Consumption: Reduces energy costs and is ideal for installations that require continuous operation..

2. MEDICAL EQUIPMENT

• Low-Profile Form Factor: Fits into compact medical devices where space is at a premium..
• High Reliability: The fanless design reduces the risk of mechanical failure, ensuring consistent performance..
• Enhanced Connectivity: Multiple USB and COM ports facilitate the connection of various medical instruments and devices..

3. EDGE COMPUTING

• Ultra Low-Power Consumption: Essential for edge devices that need to operate efficiently in remote or power-constrained environments..
• Robust Processing Power: Intel® Alder Lake-N SoC provides the necessary computational power for real-time data processing and analytics..

4. SECURITY SURVEILLANCE

• Multiple Display Outputs: Supports multiple high-resolution displays, which is critical for monitoring and surveillance applications..
• High-Speed Network Connectivity: 2 2.5 GbE LAN ports ensure fast and reliable data transmission for video feeds..
• Fanless Design: Enhances reliability and reduces maintenance needs, which is important for 24/7 surveillance systems..
