Western Digital SN861 Gen5 SSD Delivers High-Bandwidth Storage

The rapid expansion of artificial intelligence and large-scale data processing has fundamentally altered the performance requirements for modern data centers. Storage systems that once prioritized capacity and cost efficiency now face intense pressure to deliver unprecedented bandwidth and low latency. The Western Digital Ultrastar DC SN861 SSD enters this evolving landscape as a PCIe Gen5 solution engineered to bridge the gap between traditional enterprise infrastructure and next-generation hyperscale computing.

What is the Western Digital Ultrastar DC SN861 designed to achieve?

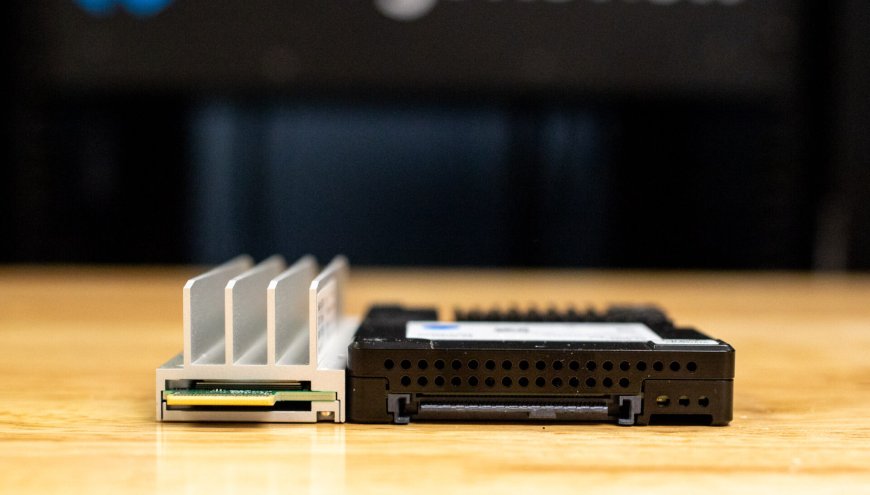

The Ultrastar DC SN861 represents a deliberate architectural shift toward higher bandwidth and operational efficiency. Western Digital engineered the drive to support both U.2 and E1.S form factors, allowing deployment across diverse server architectures. The U.2 variant targets traditional enterprise environments, while the E1.S version aligns with hyperscale cloud infrastructure. Both versions share a foundation built around the PCIe Gen5x4 interface, which doubles the theoretical bandwidth available compared to previous generation standards. This architectural upgrade directly impacts sequential read speeds, which reach up to 13,700 megabytes per second. Random read performance scales accordingly, peaking at 3.3 million IOPS. Power consumption remains a critical consideration for large deployments, and the SN861 addresses this through tunable power profiles. The drive averages less than twenty watts during active operation and drops below five watts at idle. These metrics ensure that data centers can scale storage density without overwhelming power delivery systems. Security protocols are equally robust, incorporating end-to-end data protection, AES-XTS encryption, and TCG OPAL 2.01 compliance. These features protect sensitive information at rest while maintaining the high throughput required by modern applications.

Why does the transition to PCIe Gen5 matter for enterprise storage?

The migration to PCIe Gen5 addresses a fundamental bottleneck in modern computing architectures. As processors and memory subsystems continue to accelerate, storage interfaces that rely on older generation standards struggle to keep pace. The SN861 eliminates this constraint by leveraging the expanded lane width and signaling speed of Gen5. This transition proves particularly vital for artificial intelligence workloads, where massive datasets must flow continuously between storage arrays and processing units. In GPU-intensive environments, saturating the bandwidth of high-performance accelerators requires sustained data delivery rates that older drives simply cannot provide. Testing demonstrates that achieving sixty-four gigabytes per second of throughput with previous generation models required ten separate drives. The SN861 reaches that same target with only five units, effectively halving the physical footprint while doubling performance density. This efficiency allows system architects to allocate more rack space to additional capacity or compute resources. The drive also supports NVMe 2.0 and OCP Cloud Spec 2.0 standards, ensuring compatibility with evolving industry frameworks. By aligning with these specifications, Western Digital ensures that the SN861 remains relevant as data center standards continue to mature.

Flexible Data Placement and Hyperscale Optimization

The E1.S variant introduces Flexible Data Placement, a technology specifically optimized for hyperscale cloud environments. Traditional storage controllers manage data allocation through rigid algorithms that often result in unnecessary write amplification. Flexible Data Placement allows the host system to control how data is organized on the drive, significantly reducing the write amplification factor. This capability minimizes the need for intensive garbage collection processes, which historically degrade performance and shorten drive lifespan. By intelligently grouping similar data and optimizing overprovisioning, the technology extends the operational life of the SSD while maintaining consistent performance across mixed workloads. The feature also supports multiple namespaces, ensuring that different applications can operate independently without interfering with one another. This level of control directly impacts the total cost of ownership for large-scale deployments. Hyperscalers can adjust power states to match expected workloads, further reducing operational expenses. The combination of endurance optimization and power management makes the E1.S version particularly well-suited for cache-heavy applications and continuous data processing tasks.

U.2 Form Factor and Enterprise Workload Performance

The U.2 version of the SN861 caters to enterprise customers who require proven reliability and predictable performance. Available in capacities ranging from 1.6 terabytes to 7.68 terabytes, the drive offers flexible endurance ratings that range from one to three drive writes per day. These ratings allow organizations to select configurations that align with their specific read and write intensities. The drive maintains a mean time between failures of 2.5 million hours and an annualized failure rate of 0.35 percent, backed by a five-year limited warranty. Performance testing reveals consistent results across various block sizes and workload profiles. Sequential write throughput scales with capacity, reaching 7,500 megabytes per second in the largest configuration. Random write performance peaks at 800,000 IOPS, ensuring that transactional databases and virtualization platforms experience minimal latency. The physical dimensions of the U.2 variant measure 69.85 millimeters by 100.45 millimeters with a z-height of 15 millimeters, fitting standard enterprise server bays. Operating temperatures span from zero to seventy degrees Celsius, providing flexibility for diverse data center cooling strategies.

How does the SN861 compare to previous generation and competing drives?

Sequential Throughput and Random I/O Analysis

Comparative analysis against previous generation models and competing PCIe Gen5 drives highlights the SN861's competitive positioning. Testing conducted on Dell PowerEdge R760 servers running Ubuntu 22.04 utilized fio and Vdbench suites to evaluate peak throughput and mixed workload performance. In sequential read tests, the SN861 achieved 13.3 gigabytes per second, placing it second only to the Samsung PM1743. However, the SN861 claimed the top position in sequential write performance, delivering 7.7 gigabytes per second. Random 4K read performance measured 2.11 million IOPS, while random 4K write performance reached 474,000 IOPS. These figures demonstrate a clear advantage over the Samsung PM9A3, a previous generation reference drive. Synthetic database workloads further illustrate the drive's capabilities. SQL and Oracle simulations showed the SN861 maintaining lead positions across various read-to-write ratios. In 16K sequential write tests, the drive reached 200,000 IOPS with a latency of 78 microseconds. The drive also performed competitively in virtual desktop infrastructure scenarios, trading top positions closely with the KIOXIA CM7-R. These results confirm that the SN861 delivers consistent performance across diverse enterprise applications.

Database and Virtual Desktop Infrastructure Testing

Enterprise storage systems must handle highly variable workloads without experiencing performance degradation or latency spikes. The SN861 demonstrates strong stability when subjected to synthetic SQL and Oracle workloads that simulate real-world transactional demands. Testing across different read-to-write ratios reveals that the drive maintains peak throughput even as write intensity increases. In 80/20 read-to-write scenarios, the SN861 sustained 424,000 IOPS, outperforming competing Gen5 models. The drive's ability to handle mixed workloads stems from its efficient controller architecture and optimized firmware. Virtual desktop infrastructure testing further validates its enterprise readiness. Full-clone and linked-clone boot profiles require rapid random read performance to initialize virtual machines efficiently. The SN861 delivered 370,000 IOPS during full-clone boot operations, providing a responsive user experience. Initial login and Monday login profiles showed consistent performance, with the drive frequently matching or exceeding the KIOXIA CM7-R. These results indicate that the SN861 can support dense virtualization deployments without compromising user experience or system stability.

What role does this drive play in modern AI and GPU architectures?

Artificial intelligence and machine learning applications demand storage systems that can sustain massive data throughput without introducing latency bottlenecks. The SN861 directly addresses this requirement by providing the bandwidth necessary to keep high-performance accelerators fully utilized. In environments utilizing NVIDIA IndeX for volumetric visualization, the drive enables real-time interactive rendering of complex three-dimensional datasets. This capability proves essential for industries such as medical imaging, scientific research, and resource exploration. The integration of GPUDirect technology further reduces latency by allowing direct data exchange between storage and graphics processing units. As data centers continue to scale GPU clusters, the storage layer must evolve to match the computational power of the processors. The SN861 achieves this by delivering sustained high-speed data movement across multiple drives. System architects can now deploy fewer drives to achieve target bandwidth thresholds, freeing up rack space for additional compute nodes. This efficiency translates directly into faster model training cycles and more responsive inference pipelines. The drive's ability to scale alongside GPU architectures ensures that storage infrastructure remains a catalyst rather than a constraint for advanced computing workloads.

Storage Evolution and Future Data Center Demands

The continuous evolution of storage form factors reflects the changing needs of modern computing environments. As data centers move away from traditional mechanical drives and older solid-state interfaces, new form factors like E1.S and optical interface solutions are reshaping deployment strategies. The SN861's dual-form-factor approach demonstrates how manufacturers can address both legacy enterprise requirements and emerging hyperscale architectures simultaneously. Power efficiency remains a primary driver for future storage development, with tunable profiles allowing administrators to balance performance and energy consumption. Endurance ratings and warranty periods provide organizations with predictable lifecycle costs, facilitating long-term infrastructure planning. The drive's compliance with NVMe 2.0 and OCP specifications ensures compatibility with next-generation server platforms. As artificial intelligence and real-time analytics continue to drive data center innovation, storage systems must deliver higher bandwidth, lower latency, and greater flexibility. The SN861 positions itself as a foundational component for organizations navigating this transition, offering a reliable pathway to scale computing infrastructure without compromising operational efficiency.

Operational Considerations for Enterprise Deployment

Implementing high-performance storage requires careful consideration of power delivery, thermal management, and system compatibility. The SN861 operates on a standard plus twelve volt power rail, simplifying integration into existing server power distribution networks. Tunable power profiles allow administrators to adjust energy consumption based on workload demands, reducing idle power waste. Thermal performance remains within acceptable limits for standard air-cooled data center environments, operating reliably between zero and seventy degrees Celsius. The drive's physical dimensions align with standard enterprise drive bays, ensuring straightforward installation without requiring custom mounting solutions. Firmware updates and management tools support centralized monitoring, enabling IT teams to track drive health and performance metrics across large deployments. These operational characteristics reduce the complexity of managing high-performance storage arrays while maintaining the reliability required for critical business applications.

Implications for High-Performance Computing Infrastructure

The performance characteristics of the SN861 extend beyond traditional enterprise workloads into specialized high-performance computing domains. Artificial intelligence training pipelines require rapid data ingestion and efficient caching mechanisms to maintain GPU utilization. The drive's sequential write capabilities ensure that large datasets can be loaded into memory quickly, reducing idle time for processing units. Random read performance supports complex query patterns common in analytical databases and real-time processing systems. The ability to sustain high IOPS across varying block sizes makes the SN861 suitable for diverse computational tasks. As data centers continue to adopt more powerful processors and accelerators, storage interfaces must evolve to prevent bottlenecks. The SN861 addresses this challenge by delivering consistent performance across a wide range of workloads, providing a stable foundation for future infrastructure expansion.

Conclusion

The Western Digital Ultrastar DC SN861 SSD establishes a new benchmark for enterprise and hyperscale storage. By combining PCIe Gen5 bandwidth with form factors tailored to specific deployment environments, the drive addresses the performance gaps left by previous generation technology. Flexible data placement, robust security protocols, and tunable power management provide the operational flexibility required by modern data centers. Performance testing confirms strong results across sequential, random, and synthetic workload profiles. The drive's capacity to sustain high throughput directly supports the growing demands of artificial intelligence and GPU-accelerated computing. As data centers continue to prioritize speed and density, the SN861 offers a reliable foundation for scaling infrastructure without compromising efficiency or reliability.
